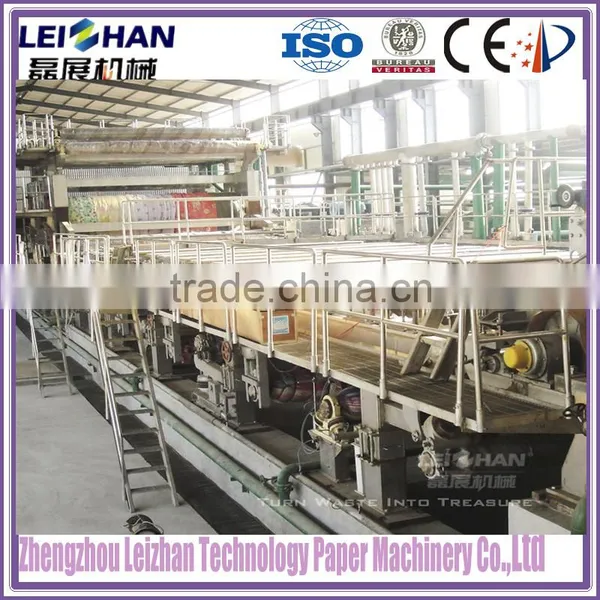

24 hours continuous high capacity duplex board machine for paper mills
I. Brief introduction of duplex board machine for paper mills
1.Trimmed Width:1760,1880,2184,2400,2640,2880.3200,3400,3800,4200,4400
2.Raw material: Virgin Pulp, recycled paper, De-inked pulp.
2. Process Flow Diagram of flute paper carton machine
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket——paper making machine——drying——roll paper——the big finished jumbo paper —— process machine
rrugated paper (rewinder machine——cutting paper machine——corrugated paper roll )
2. kraft paper (plate paper slitting machine —— paper machine —— napkin paper)
Main Technical Parameter
Machine Model |
1092 |
1575 |
1760 |
2200 |
2500 |
2800 |
|
Width (mm) |
1350 |
1750 |
1900 |
2150 |
2450 |
2750 |
|
Finished Products Diameter |
Φ 60~150mm (Tightness can be adjustable) |
||||||
Finished Products Inner Diameter |
Φ32~50 mm |
||||||
Jumbo roll diameter (mm) |
Φ 1200 (Other sizes can be ordered) |
||||||
Jumbo Roll Inner Diameter |
3”,76.2 mm (other sizes can be ordered) |
||||||
Perforation distance (mm) |
4 blade,90~160mm;2 blade,180~320mm; |
||||||
Production speed |
160-180 m/min |
||||||
Parameter set |
Touching-screener Multi-menu Man-machine Interface Operation System |
||||||
Programmable controller |
Mitsubishi PLC program |
||||||
Mechanical driving |
Driven by stepless speed-regulator to guarantee the precise length of final products. |
||||||
Embossment unit |
Single embossment, Double embossment, Steel to steel embossment; |
||||||
Embossment down roller |
Felt roller, paper roller, rubber roller |
||||||
Jumbo roll stand |
1-3 plies (ply quantity can be ordered) |
||||||
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (customers should be prepared by themselves) |
||||||
Power |
5.5-15KW (Frequency speed-regulate ) |
||||||
Overall size (m)(L×W×H) |
7 X (2.3-4) X 1.8 |
||||||
Weight of equipment |
4000~8000kg (approximately) |
||||||
Chosen items (Should be ordered separately) | |||||||
Embossment |
Single embossment, double embossment, steel to steel embossment |
||||||
Embossment down roller |
Felt roller, paper roller, rubber roller |
||||||
Jumbo roll stand |
1-3 plies |
||||||
Jumbo roll stand driving |
Driven by variator |
||||||
1. cylinder mould section:φ1000mm×1450mm stainless steel cylinder mould 1set, φ 300mm×1450mm couch roll 1set,coated by rubber, rubber shore hardness 38°C±2.
2. dryer section: φ 1500mm×1450mm alloy dryer can 1 set, 1group scraper knife. φ 350mm×1450mm touch roll 1set, coated by rubber, rubber shore hardness 90°C±2.Mechanical loading device.
Leizhan have have finished many paper production line projects in Egypt, India,Saudi Arabia,Malasia ,Russia,Afria, and some european and American areas.
Customer information
Customer company: Egypt Al- Karma Paper Industries
Address: Sadat city, Egypt.
Time: 2015
Project: Whole set of 150t/d Kraft Liner, Fluting, White board paper, T-paper Stock Preparation Line
Leizhan paper machinery company general manager came to Egypt and signed a contract with Egypt Al- Karma Paper Industries on supplying whole set of150t/d Kraft Liner, Fluting, White board paper, T-paper stock preparation line for its new plant.
The application of Leizhan latest T-paper making technology makes Al- Karma Paper Industries becomes the first T-paper making enterprise in Egypt.
It is known that varies high quality pulp are the foundation of paper making. So paper pulp production line is the key preparation of papermaking. Leizhan company has more than 30 types paper pulp equipment, including pulping equipment, screening equipment, pulp cleaning equipment pulp refiners, and pulp pumps. Every type equipment has varies models for your choice.
Have any request in pulp making equipment, please tell us, we can design and provide the whole paper making line for you !
Give you our best !
♥.Pre-sale services: perfect technical design for you
We provide you with perfect prophase plan, process flow design and practical equipment on the basis of your condition.
♥.After-sale services: overseas service provided
It have been our tenet that we should provide the best to our customers. So we have engineers overseas for the installation and maintenance .
leizhan has developed into a first class paper and pulp machinery manufacturer since the establishment in 1980. In these years, we have finished many paper production line projects in many countries and areas, including Egypt, India,Saudi Arabia,Malasia ,Russia,Afria, and some european and American areas.
Every year, Leizhan will receive invitations from exhibition in and out of China. In this year, we have attended 6 exhibitions, including that in India, Egypt, Shanghai, Beijing, Guangzhou, China. Our service person will go to Russia for another exhibition.
What certifications do you have?
A: Our equipment have ISO9001, CE, BV and TUV certifications.
Do you have engineers available overseas ?
A: Yes. Of course we have. Customers are the first, we have professinal engineers overseas to help customers in project establishing process.
What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry.
20000 square meters workshop with more than 200 staffs including 50 engineers.
You are always welcome to contact with us or visit our company ! Have any question, contact with me now !
