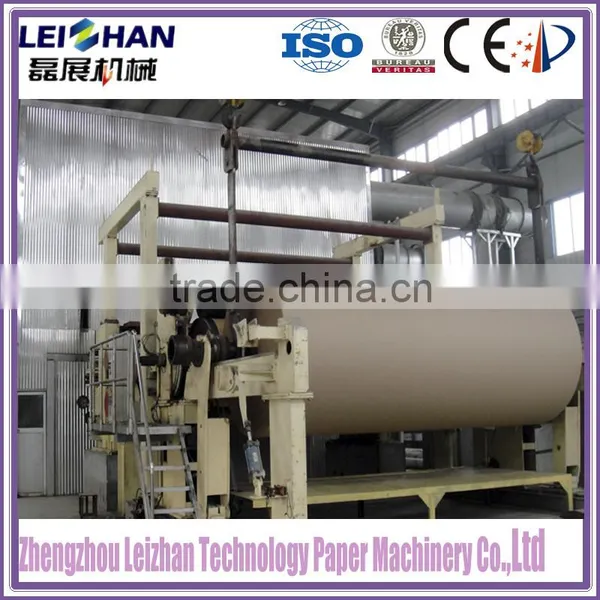

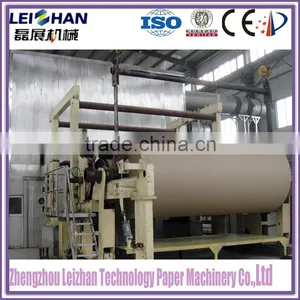

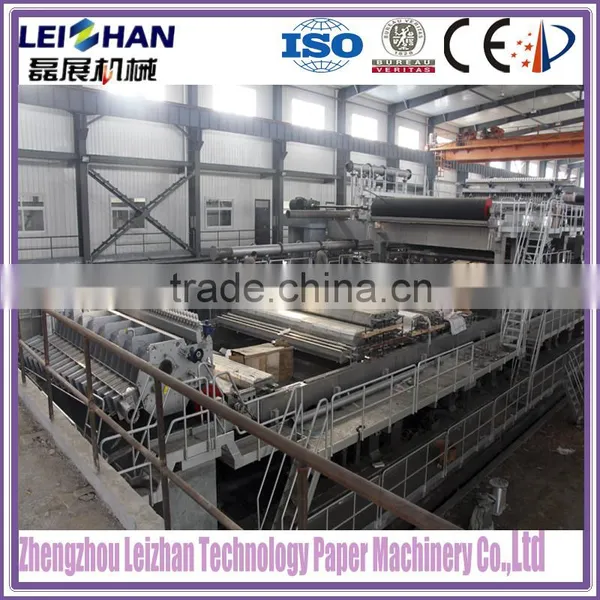

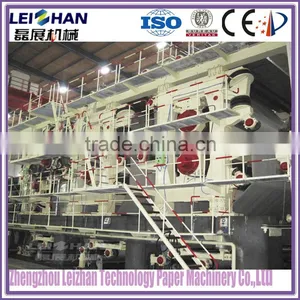

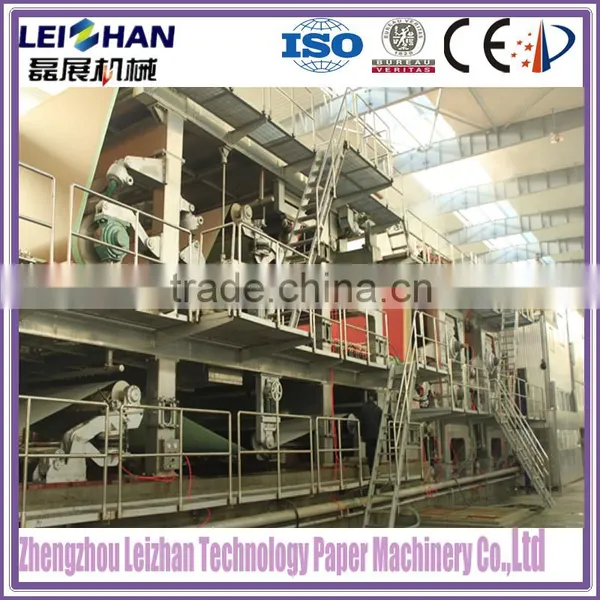

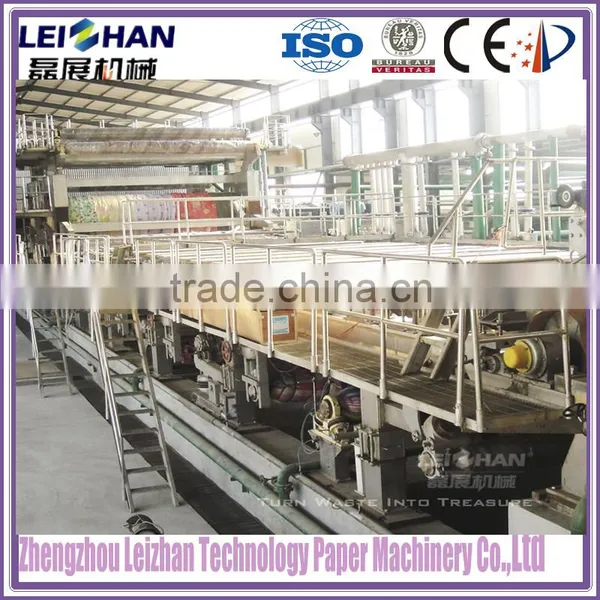

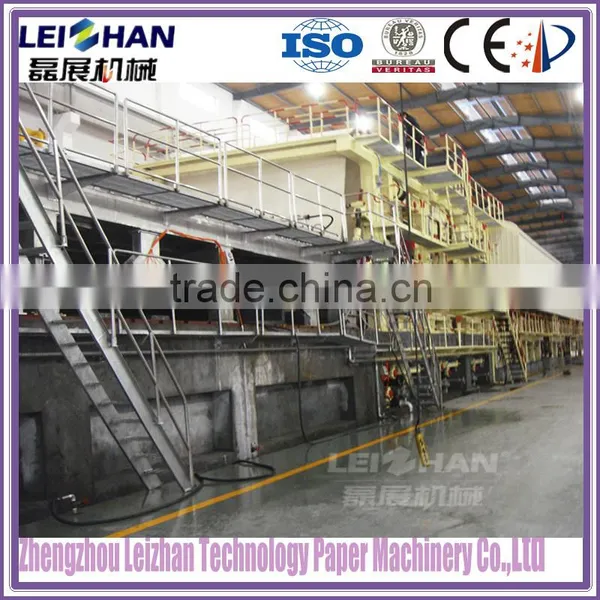

Corrugated paper making machine of used paper mill plant
Process flow
waste paper → high consistency hydrapulper → high frequency vibrating screen → pulp pump → efficient double disc pulp refiner → pulp pump → chest agitator→ pulp pump → centrifugal screen → pulp pump → impurity remover → paper machine → calendar → winding machine → rewinding machine → marketing
1.Characteristic of recycling machine for paper

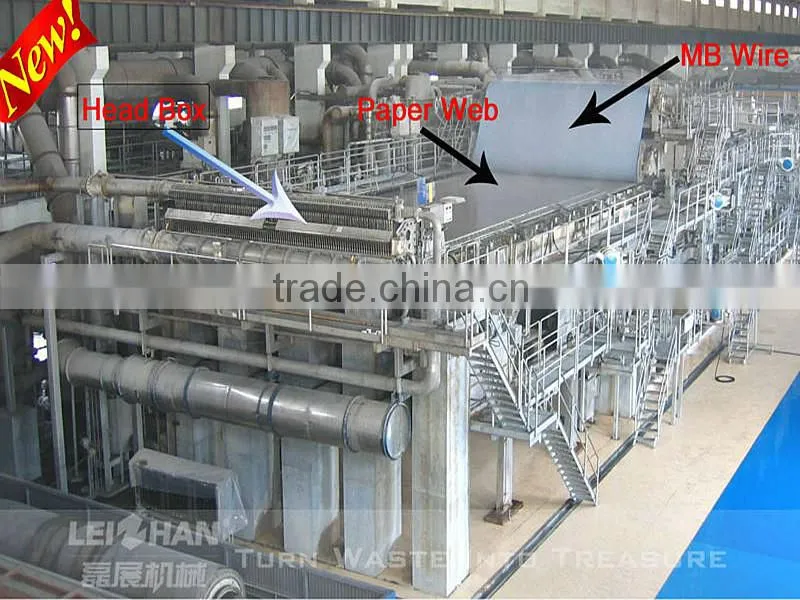

Headbox
•Excellent component element intefration, unique flow channel design. The special flow channel can jet the pulp evenly, and no fiber and dust stayed.
•Adjustable slice angle designed, is can be adjusted at any time.
•Rotproof stainless steal, durable usage time.
•Multi-material adoption, high efficiency.
•Basic Weight
Suction Cylinder
•Special design for hole drilling, insure high efficient water dehydration..
•Steam and water automatic separate design, minimize ther energy consumption.
•Rotproof stainless steal, durable usage time.
Suction Touch Roll
•The roll is covered by polyurethane, and with groove on the surface
•After the suction touch roll, the water dehydraton can up to 36%
2.Main Supporing Parts of recycling machine for paper
•Heat recycle System
Recycling the heat from the hood(dry part), and reuse the heat from the steam and condensate water, reduce the energy consumption.
•Breating Hood
High efficiency heat using and even distribution for the heat. It has adjustable fan valve and temperature stable control, perfect working with the Yankee Cylinder.
•Yankee Cylinder
High efficient heat system designed, low air pressure operating, reduce the thickness of the cylinder, enhance the heat transmission efficient, and decrease the drive load.
•Suction Box
High efficiency and durable.
•Vacuum Pump
Low energy consumption, low maintain cost and low noise. Double vacuum pump, helping the operator has better control and monitoring the machine.
•Horizontal Screen
High precision, High efficiency and Muli-material adoption.
•Fan pump
Low-pulse, low energy consumption and stable flow pumping.
•Horizontal Wave Doctor Blade System
Enhance the blade duration time and reduce the paper break frequency and protect the Yankee Cylinder.
•PEO Supply System
Mix the pulp and PEO fatly and evenly.
3.Control System
•ABB Driving System
Easy adjustment
Guiding program installed, facilitate to operate
Custom Programming
With programmable module, easy operating as PLC
Compact
It contains filter, chopper and reactors, excellent performance.
4.Full-service
In our company sales service system, including pre-sale, sale, after-sales service, there are service you by professional technician.
leizhan have developed into a first class paper and pulp machinery manufacturer since the establishment in 1980. In these years, we have finished many paper production line project in many countries and areas, including Egypt, India,Saudi Arabia,Malasia ,Russia,Afria, and some european and American ares.
Every year, Leizhan will receive invitations from exhibition in and out of China. In this year, we have attended 6 exhibitions, including that in India, Egypt, Shanghai, Beijing, Guangzhou, China. Our service person will go to Russia for another exhibition.
