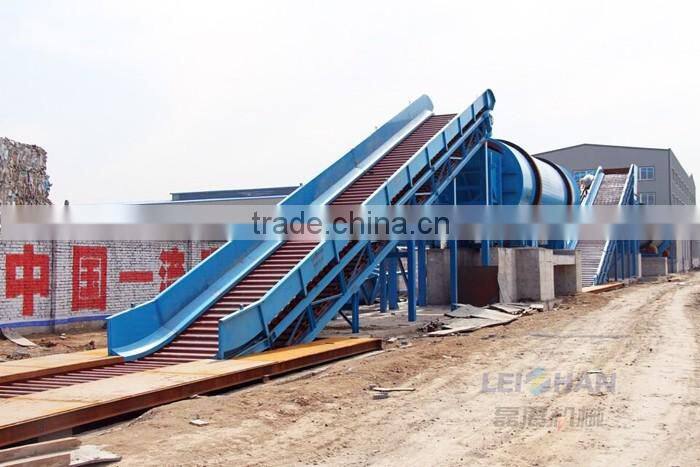

Waste handling systems plastic conveyor chain for sale
1. Overview
This Waste handling systems plastic conveyor chain for sale transmits waste paper anD pulp boards to hydrapulper continously,put forward the mechanization of pulp making.
2,Main specification:
| Type | BFW | |||||||
| Width of chain plate(mm) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 |
| Capacity (m3/h) | 60-220 | 80-255 | 95-300 | 110-345 | 140-390 | 160-430 | 200-500 | 240-600 |
| Materials | waste paper or paper pulp plate | |||||||
| Max.Limit of Material (mm) | 1000 | 1200 | 1600 | 1400 | 1800 | 2000 | 2200 | 2400 |
| Motor power(Kw) | 5.5 | 7.5 | 11 | 5 | 18.5 | 22-30 | 30-45 | 37-55 |
3,Major parts of chain-slat conveyor
Main shaft Driven shaft Bearing block Bearing cover Tension bridle device
Chain wheel Roll wheel Steel Bushing Chain piece Trough plate
4,Main characteristics
1. Advanced chain feeding machine , chain feeding system for waste paper feeding has conveyor device, loading device,Tension device,and frame five parts.
2. Adopt plate and chain drive,Drive trough plates movement and conveying material.
3. Low speed transmission adopts shaft coupling straight(No produce radial force to spindle, reduce installation space; High grade v-belts transmission, smooth & reliable transmission , slow shock and can overload protection, in order to protect the equipment)
4. Chain wheel use steel-casting,improve wear-resisting performance.
5. Motor,reducer from Domestic famous manufacturer.
5. Installation and commissioning
By our enegeer guiding Installation & professional Installation company.
6. usage and maintenance
1. Heat resistent chain feeding system ,loading/conveyor device Strive to even feeding material when operation, feeding maximum weight should be controlled in the specified scope
2. Stop or start when Stop or start is not suitable
3. Moderation of Traction chain should be reasonable , In the operation should be frequently check and adjust it
4. Reducer 7must add the lubricating oil after 7-14 days operation , later according to situation , three to six months once.
5. lubricating points should be timely injection lubrican
Delivery site
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Customers visit our factory
Exhibitions
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
Welcome to visit our factory. Any questions, contact us please!
What do you offer?
A: We can offer the whole pulp and paper production line. From factory design to machine installation and training, our company can supply for you all.
Are your a manufacturer?
A: Yes. Of course we are. We are spealized in pulp & paper equipment manufacturing in China for more than 30 years. There are about 50 paper mills near our factory and most of them are using our machines. So, welcome to visit our factory and I believe you will be satisfied with our products.
What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry.
20000 square meters workshop with more than 200 staffs including 50 engineers.
ISO9001:2000 and BV certification.
Strict quality control of every procedure.
