Newspaper recycling machine to make new a4 paper
DETAILS OF copi a4 paper machine/a3 paper machine
This Small scale a4 copy paper production line machine is used to produce cultural paper such as a4 paper , newsprint paper, shool use paper.... our fourdrinie a4 paper machine has international ISO,BV certifications. Following is its main tachnical parameters:
1. Production Variety: a4 paper, newsprint paper, scholl use paper/ writing and printing paper
2 Paper-making quantity: 11-25g/m2
3 Trimmed width:2850mm
4 Operating Speed:800m/min (dryer)
5 Design Speed:900m/min
6 Dynamic balancing speed: 1200m/min
7 Main Gauge: Model section 3750mm,dryer section 4150mm,winding part 3650mm (Subject to the final design)
8 Kind of drive :AC Motor speed conversion drive
9 Main drive power: 388.5kw
10 Production Capacity:high
11 Overall dimensions: 32440×8000×7300.(L*W*H)
12 Paper Machine Formation: Crescent forming paper machine, single layer layout
13 The weight of largest part: about 51t(Dryer Components, including drainage, bearing and bearing block)
China Zhengzhou direct manufacturer newsprint paper machine include 10 parts which have differen t function. Following are the specifications of these parts:
A sketch of structure:
1 Head-box Pulp flows into cone mains with certain pressure ,after an even constraint of the mains, goes into
wedged-shaped flow channel and is sprayed at the spout. Top lip and lower lip are fixed. Adjusting device is
designed to adjust the location and angel of puling from head-box to wire.
Head-box adjusting device has a structure of manual worm and gear+screw drive
2 Wire Section
This ISO and BV certificated newsprint fourdrinier paper machine Wire section adopts crescent dehydration forming way and dehydrate quickly with centrifugal force and tension of polyester mesh. Mainly consists of shape roll, carrier roll, wiper blade, adjusting device, spray pipe, water pan, net of rack, etc.
3 Press/Drying Section
This part consists of Flying Dutchman, Yankee hood, skinning doctor, Cylinder surface spraying
device, carrying roll, and all components encircled by felt except for forming roll. This part also falls
into two independent parts :wet section and dry section. Wet section mainly consists of felt running roll, felt debugging mode and felt cleaner. While the dry part mainly includes vacuum pressure roll press, Flying Dutchman, Yankee hood, skinning doctor, main engine framework

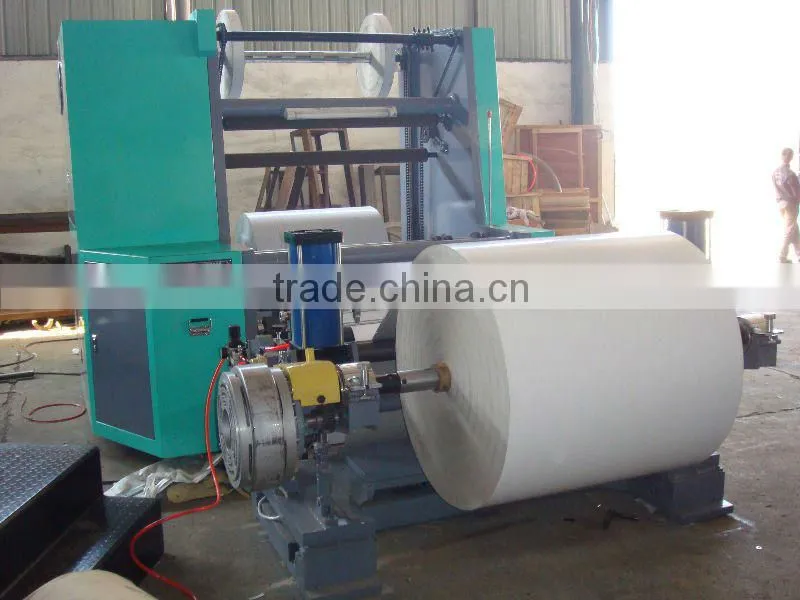

Paper roll
Environment friendly a4 copi paper machine/waste paper recycling production line/a3 paper making machine
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Workshop
Customers visit our factory
Exhibition
Main products for paper pulp making
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
What do you offer?
A: We can offer the whole pulp and paper production line. From factory design to machine installation and training, our company can supply for you all.
Are your a manufacturer?
A: Yes. Of course we are. We are spealized in pulp & paper equipment manufacturing in China for more than 30 years. There are about 50 paper mills near our factory and most of them are using our machines. So, welcome to visit our factory and I believe you will be satisfied with our products.
What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry.
20000 square meters workshop with more than 200 staffs including 50 engineers.
ISO9001:2000 and BV certification.
Strict quality control of every procedure.
