Iec60529 Lab test accessories test probe

standard packing, silver box

IEC61032 Hazardous Parts Probe C & Needle Pressure Testing Probe

Key words: Probe C, Hazardous Parts Probe , Test Probe

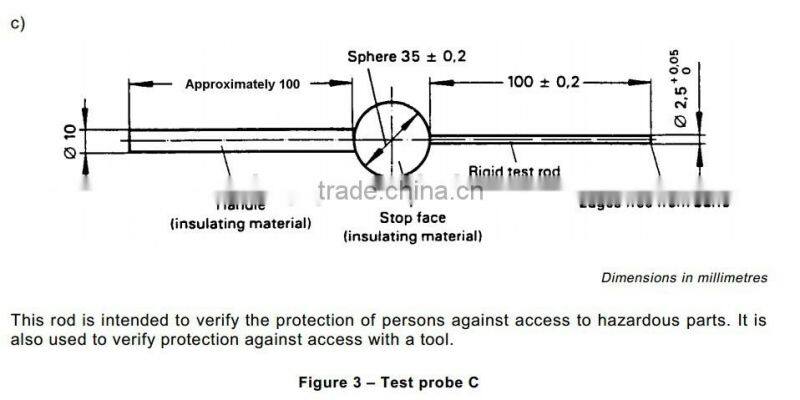

Hazardous Parts Probe C

Appliance:

Autostrong offers a wide range of test probe to meet the most common standards including those from IEC,EN,UL,GB and others.

Such standards require the checking of accessibility to dangerous parts of home electronics and appliances,toys,tools and a hose of other products thar are intended to be protected by enclosures.

These probes simulate human fingers,tools and other items that would be hazardous to come in contact with certain parts of produt.

This pin is used on appliances for verifying that there is no access to hazardous live parts of heating elements which  could be touched accidentally by a tool (i.e. screwdriver), Meets IEC61032 Test probe12 & EN requirements. Handle is made of nylon, tip is hardened steel.

This Hazardous Parts Probe C conforms to standard requirements of IEC61032 test probe C and IEC60529 for IP3 and IEC60065.

Technology Parameter

Rod length: 100mm
Rod Diameter: 2.5mm
Handle length: 100mm
Handle Diameter: 10mm
Sphere diameter: 35mm

you can also customized with force

 Service we can provide

1.High quality guarantee.

2.Shipment/Freight with professional documents.

3.Packing as your request, with photo before shipment.

4.Professional after-service from our engineers.

5.Warranty period one year.

Our advantages

Professional technology support.

Full experience of large numbers containers loading in Chinese sea port.

Fast shipment by reputed shipping line.

Best service after shipment with emails.

Cargoes photo before and after loading into container.

Our concept

1.Client is first. We are trying to bring maximum profit to our clients and we only share small.

2.Credibility is the most important.

3.Quality control is our life.

4.Great sense of responsibility.

We will be responsible for not only our products, our clients, our suppliers, also the society

 Our product range:  IEC & UL Test Probe,Mechanical Impact Tester,  IEC Test Instruments,
Lamp Cap & Holder Gauge & Test Instrument,Temperature Rise Test Instrument,Electric Safety Tester,Environmental Test Instrument,Plug & Socket Gauge,EMC & LED Test Instrument
