UL Rigid Finger Testing Probe & ul test finger probe
key words : UL Test Finger Probe, UL Test Probe, Test Finger Probe, Test Probe
Introduction:
1, According to : UL507 (PA100A), UL1017 figure 2, figure 6.5 UL1062, UL982 figure 7.1 and figure 1.2 UL474 figure 5.1 and figure 14, UL60065 UL6500 figure 14, Figure 7.2 and figure 8.3 UL1278 UL1082
2, UL Jointed test finger probe meets the standard requirements of UL60335,UL476,UL1026,UL5076,used for simulating fingers in the test. It is mainly used for preventing the finger from approaching to the hazardous parts in the condition of exerting forces, to ensure the products have enough safety protections when accidentally touching the live parts in the process of the normal use.
3,This is the "UL" test finger, researched and designed by UL and required by most UL Standards. Palm simulator and restricted joint movement simulates human finger movement. Made of all nylon. Bell-Core accessory available.The handle is made of nylon. The finger is made of stainless steel.
4.The finger part of UL jointed test finger probe cannot touch the live parts or the hazardous parts, and 50mm-78mm dam-board cannot enter entirely. In partly of the preventing from approaching the hazardous parts test, UL test finger probe should be exerted thrust.

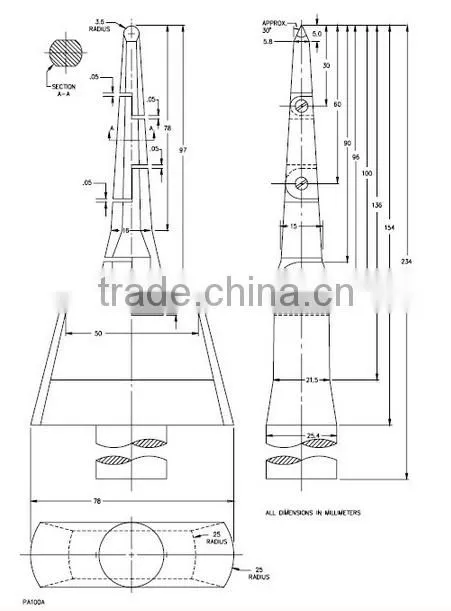

Technical parameter:
| Test finger length | 234mm |
| Knurled length | 30 / 30 / 40mm |
| Material | stainless steel and nylon |
| Reference | UL507,UL982,UL1278,UL1062,UL1310,UL474,UL60065 |
Service we can provide:
- High qualitty ,Long life time and Competitive price
- Instrument manufactured according to the relevant standards
- Good Service after sale:professional R&D team 24hours support
- Manufacturer can make OEM & ODM order,and also can provide overall laboratory solutions,and good service.
- Strict quality control and with 1year warranty
- Short leadtime and fast delivery
- With CE,ROHs,SGS and ISO certificates
Our concept:
1.Client is first. We are trying to bring maximum profit to our clients and we only share small.
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
We will be responsible for not only our products, our clients, our suppliers, also the society

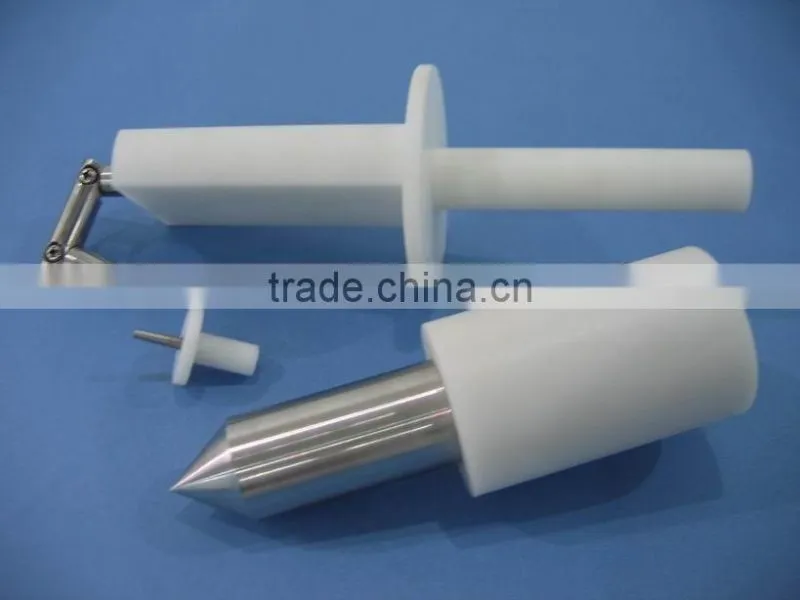

We can also provide other probes for household appliance testing, such as Jointed Finger Test Probe, Cylindrical Pin Test Probe, Short Pin Test Probe, Children Test Finger Probe 18, Children Test Finger probe 19, 2.5mm Rod Test probe and so on.
Welcome your kind enquiries!
