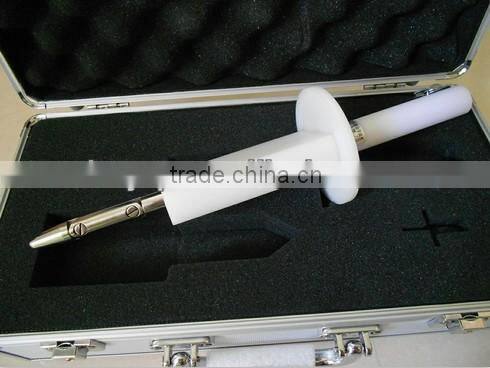

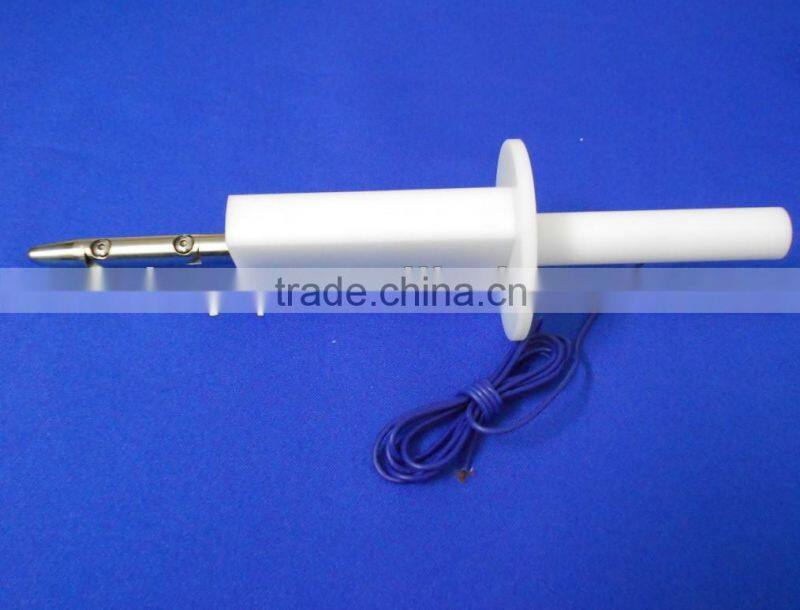

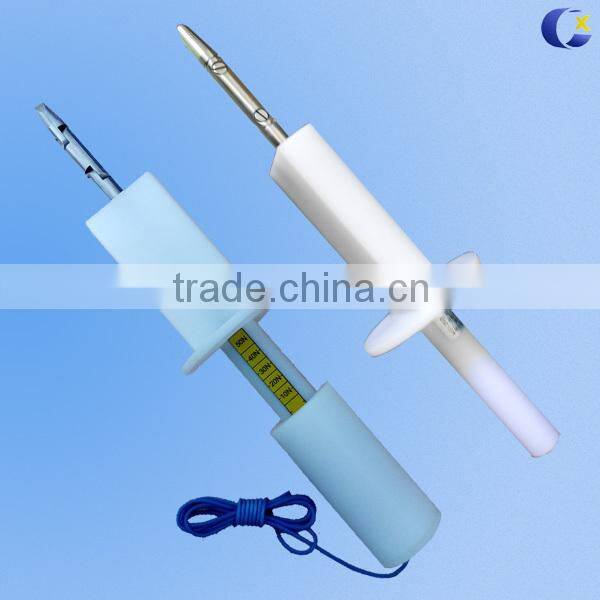

Lab Instrument test probe pin for finger test
Appliance:
It's the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

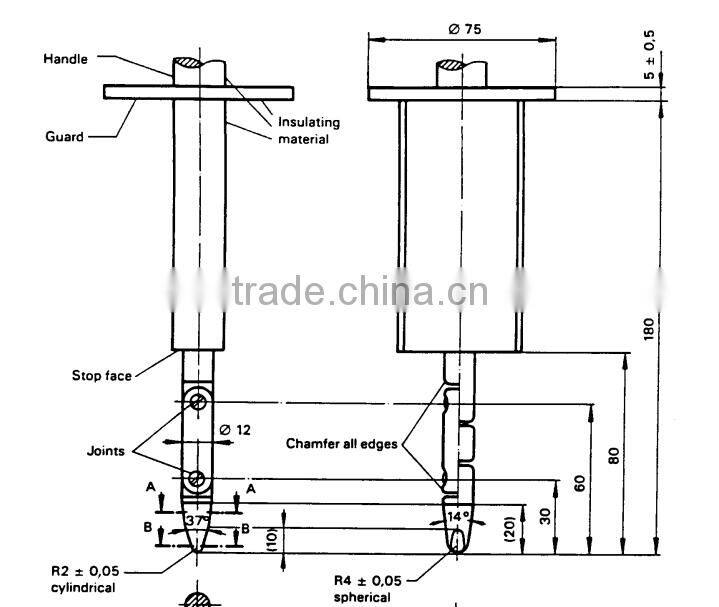

1, The joint part of The Standard Test Knurled Finger Probe can't touch the live parts or close to the dangerous parts, and 50 mm to 20 mm baffle plate cannot enter.
2, In the prevent electric shock test, wires , power devices, and lighting devices are needed.

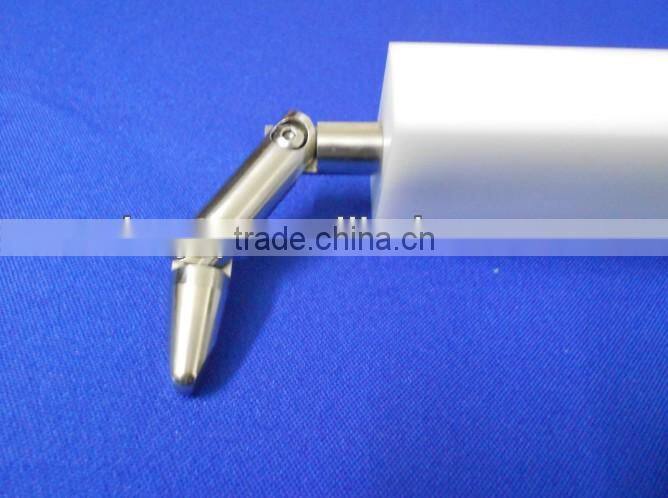

3, Both joints shall permit movement in the same plane and the same direction through an angle of 90° with a 0° to +10° tolerance
Purpose:
This Test Probe is intended to verify the basic protection against access to hazardous parts. It's also used to verify the protection against access with a finger.
Conforms to:
Standard IEC61032-1997, IEC60529-2001, GB/T4208-2008 and UL etc.
Notes:
Both joints shall permit movement in the same plane and the same direction through an angle of 90o with a 0o to +10o tolerance.
Technical Parameters:
| Kunrled finger diameter | 12mm |
| Knurled Finger length | 80mm |
| Baffle plate diameter | 50mm |
| Baffle plate length | 100mm |
| Baffle thickness | 20mm |
