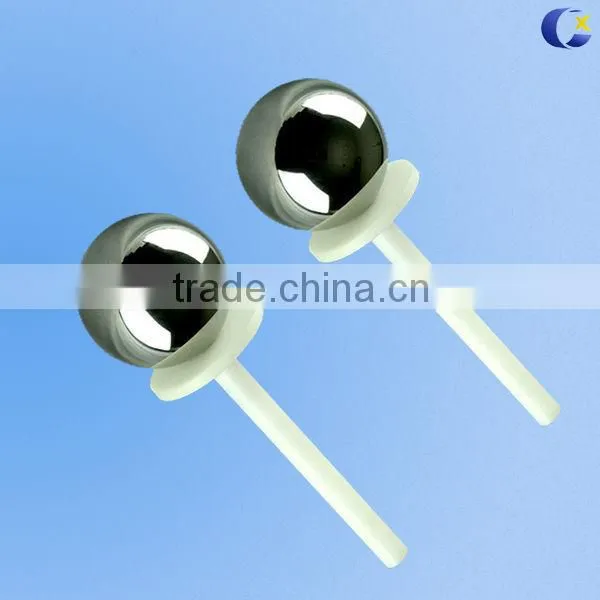

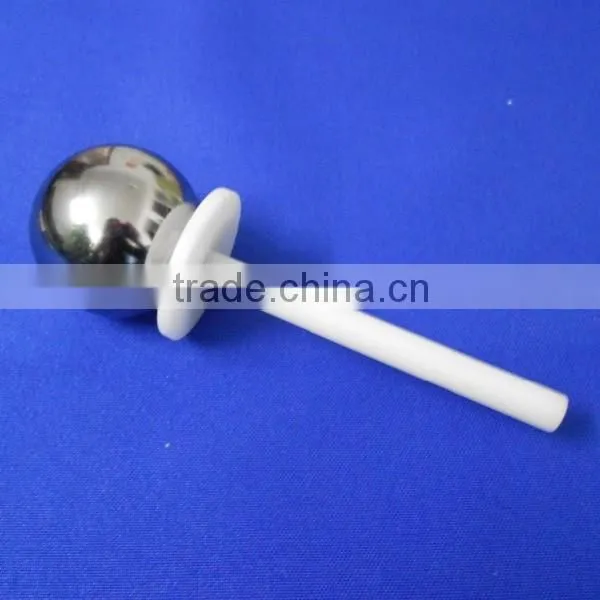

Lab Use Iec61032 Accessibility Probe With Handle/ Test Probe A

standard packing, silver box

Lab Use Iec61032 Accessibility Probe With Handle/ Test Probe A

1.For Safety Test
2.Goods in Stock, Fast delivery
3.1Year Warranty

4.Reference Standard:IEC61032,IEC60529,IEC60335,IEC61029,IEC60745,IEC60065,IEC60950

Application:

• 50mm Ball Probe with Handle is intended to verify protection of persons against access to hazardous parts for an IP1 Code. Also used to verify protection from access with the back of the hand for an IP suffix A code

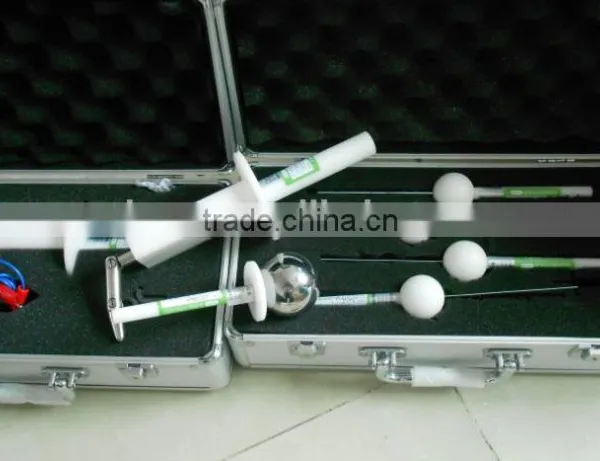

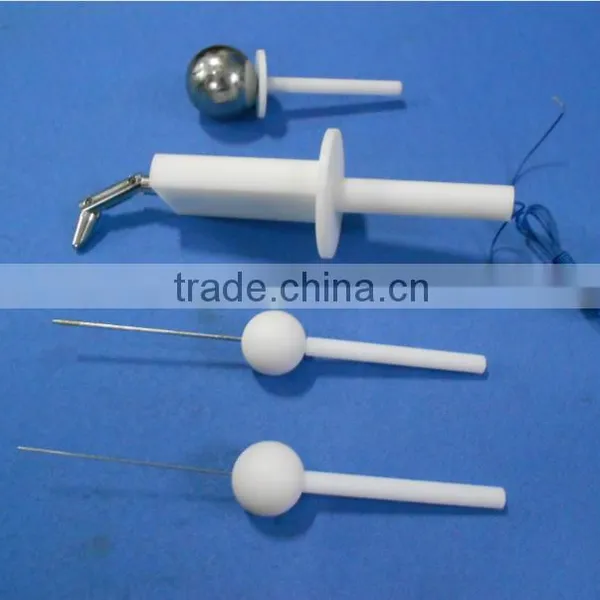

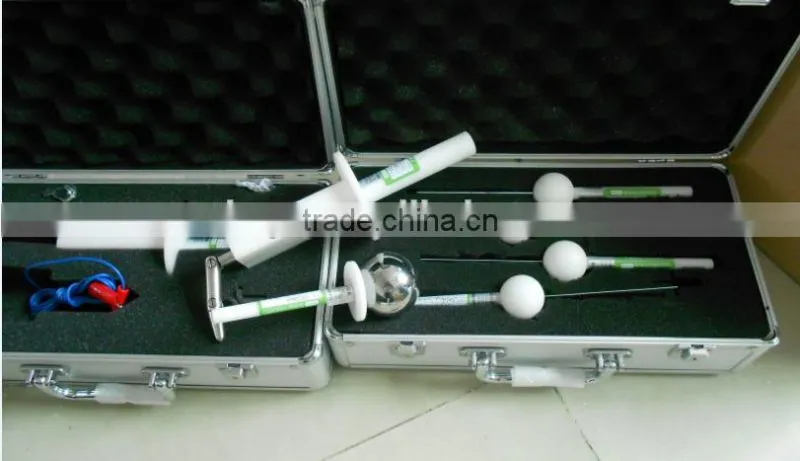

• Autostrong offers a wide range of probe to meet the most common standards including those from IEC,EN,UL,GB and others.
• Such standards require the checking of accessibility to dangerous parts of home electronics and appliances,toys,tools and a hose of other products thar are intended to be protected by enclosures.
• These probes simulate human fingers,tools and other items that would be hazardous to come in contact with certain parts of products.The handle is made of nylon, tip is made of stainless steel.

Purpose:

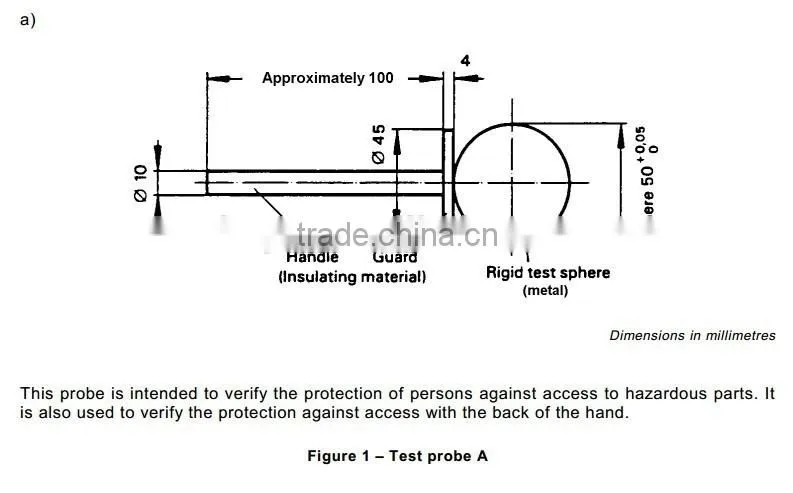

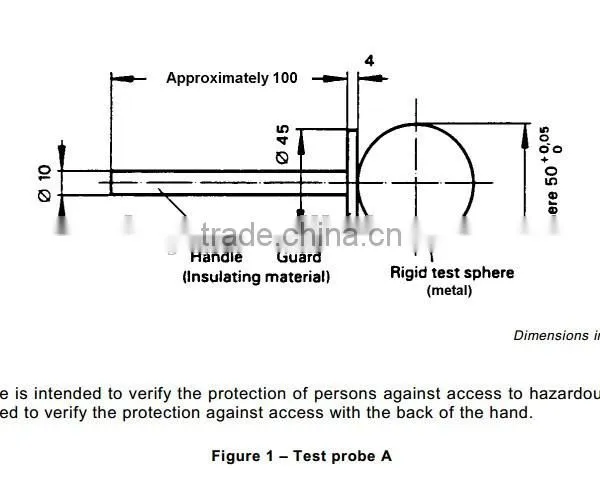

 This IEC61032 probe A is intended to verify the basic protectiion against access to hazardous parts. It's also used to verify the protection against access with the back of the hand.

Conforms to:

Standard IEC61032  IEC60529 and UL etc.

Technical Parameter:

IP1 Test Sphere Probe with 50N force
