Home > Products > IEC & UL Accessibility Probes > UL1989 UL1418 Impact Steel Test Sphere Test Ball 500g 50mm With Ring
UL1989 UL1418 Impact Steel Test Sphere Test Ball 500g 50mm With Ring
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card
-
Lab Use Iec61032 Accessibility Probe With Handle/ Test Probe A
-
Test Finger Probe B Iec Test Finger
-
Probe 18 Children Joint Finger Probe Iec Finger
-
IEC61032 41 Probe Electronic Test Rigid Finger Handle Probe
-
Iec61032 Test Probe 32 Test Rod Accessiblity Probe With 25mm Rod
-
IEC61032 Articulated Finger Test probe B
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CX | Model Number: | CX-500 |
Packaging Details
standard packing, silver box
Product Description

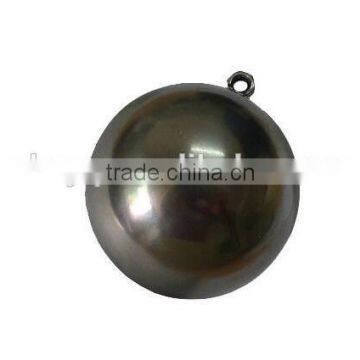

Impact Steel Test Sphere Test Ball 500g 50mm With Ring
key words: 2 inch impact test ball, impact test ball, impact ball, 2 inch test ball
Introduction:
This sphere is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50 mm or greater.
Object probe for the ascertainment of protection of persons and for checking the mechanical resistance of the material. With the help of the test sphere the protection of the equipment against intrusive solid particles can be tested. Furthermore the protection of the back of the hand can be rated.
Technical Parameter:
weight | tolerance | material | hardness |
227g | ±5% | G20CrNi2Mo | HRC68-75 |
500g | ±5% | G20CrNi2Mo | HRC68-75 |
535g | ±5% | G20CrNi2Mo | HRC68-75 |
1040g | ±5% | G20CrNi2Mo | HRC68-75 |
| Energy | 0.14J | 0.20J | 0.35J | 0.50J | 0.70J | 1.00J |
height | Steel ball227g | 63mm | 90mm | 157mm | 225mm | 315mm | 450mm |
Steel ball500g | 28mm | 41mm | 71mm | 102mm | 143mm | 204mm | |
Steel ball535g | 27mm | 38mm | 68mm | 95mm | 137mm | 190mm | |
Steel ball1040g | 14mm | 20mm | 34mm | 49mm | 69mm | 98mm |
Quantity:
| Standard | Model Number | Description | Weight |
| UL1989, 1418, and other | 2 | 2 inch ball | 535 grams |
| ATSM and UL | 4 | 4 inch ball with eyebolt | 4.3 Kg. |
| EN54 | 54 | Brass Impactor | 85 grams |
| IEC60950 | 15 | 50mm diameter ball | 500 grams |
| IEC60529 | 20 | 50mm ball with handle | NR* |
| ASTM | 31 | 31 mm impactor w/o eye | 121 grams |
| NFS/ANSI 51 | 38 | 1.5 inch ball | 230 grams |
| IEC 600656 CL 18.2.3 | ITB40 | 40 mm ball | 265 grams |
| UL | 49 | 1.25 mm balls (batch of 25) - simulates insects | NR* |
| UL | 50 | .5 inch ball (UL) | NR* |
| UL 639 | 75 | 19mm (.75 inch ball) with eye | 28 grams |
| UL 1082 | 82 | Rubber Ball | 149.7 grams |
| IEC60529 | 125 | 12.5 mm ball | NR* |
| IEC 60529 | 225 | 12.5 mm ball with handle | NR* |
| UL 858 | 325 | 3.25 ball | 2.3 Kg. |
| BS 4147 | 630 | 2 1/8 inch ball | 630 grams |
| IEC60529 UL | 1040 | 63.5 impact Ball | 1040 grams |
| IEC60529 UL | 15 | 12.5mm impact ball | 15 grams |
| IEC60529, UL | 226 | 38.1mm impact ball | 226 grams |
Packing & Shipping:
1. Aluminium box and carton box, careful and tight package, make sure the package is intact.
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 5days.
About us:
Shenzhen Chuangxin Instruments Co., Ltd. are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
We would appreciate your comments on the layout design, presentation or other aspects of our website.
Our product range: IEC & UL Test Probe,Mechanical Impact Tester, IEC Test Instruments,
Lamp Cap & Holder Gauge & Test Instrument,Temperature Rise Test Instrument,Electric Safety Tester,Environmental Test Instrument,Plug & Socket Gauge,EMC & LED Test Instrument,ETC
Welcome to your kindly enquiries!
Skype:bellacxyq
Company Profile
We are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc., industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
We would appreciate your comments on the layout design, presentation or other aspects of our website.
