British Standard Plugs and Socket Gauges
- 2000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SZCX | |
| Model Number | CX-BS1363 |
standard gift box
Product Description

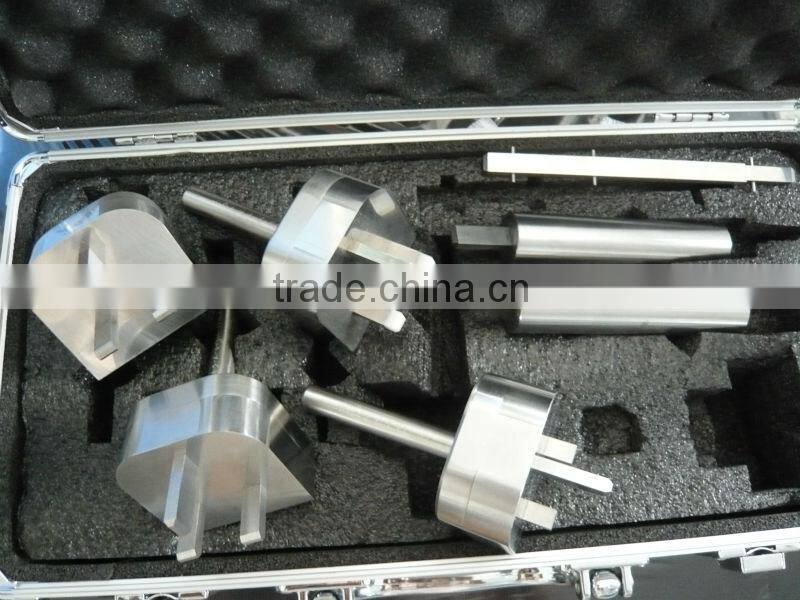

UK/ Britain bs 1363 gauge plug and socket gauge
Feature:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Surface corrosion and abrasion resistance can resist normal contact corrosion and not embroidered patch (the operator hand may exist in the sweat, the corrosion effect equivalent to NACL salt solution or NH4CL salt solution corrosion);
Material hardness is more than 60HRC;
Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.
It is designed according to the relevant provisions of BS1363-2.
It is used to check the technical parameters and size of plugs and sockets.

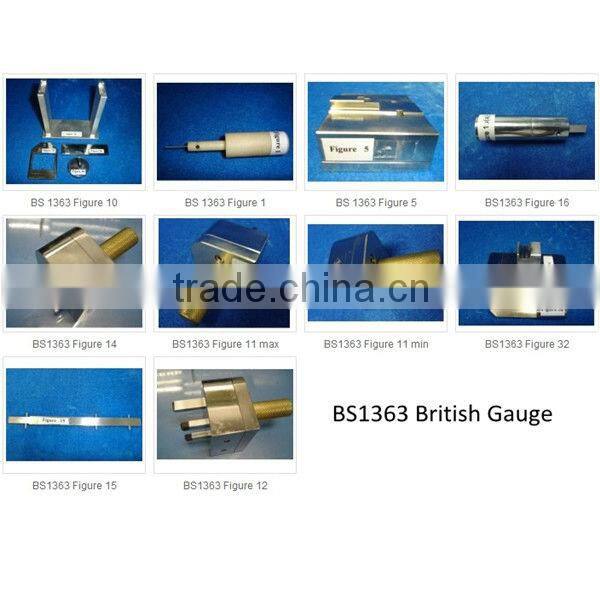

| Name | Description | QTY(piece) |
| BS1363-2-Fig1 | Test PIN | 1 |
| BS1363-2-Fig2a.2b | Elastic shell mechanical strength test device | 1 |
| BS1363-2-Fig 5 | plug gauges | 1 |
| BS1363-2-Fig11 | plug gauges | 2 |
| BS1363-2-Fig12 | Contact test gauge | 1 |
| BS1363-2-Fig14 | Non contact test | 1 |
| BS1363-2-Fig15 | Insert transverse stress gauge | 1 |
| BS1363-2-Fig16 | Insert pull-out force gauge | 2 |
| BS1363-2-Fig17a/b | Temperature rise test device and the simulationpanel | 1 |
| BS1363-2-Fig19 | Stainless steel solid fuse | 1 |
| BS1363-2-Fig23 | Pressure test device | 1 |
| BS1363-2-Fig29 | correction clamp | 1 |
| BS1363-2-Fig30 | gauges | 1 |
| Total quantity | 13 | |
