British Standard Plugs Socket Outlets Gauges

Name: British Standard Plugs Socket Outlets Gauges
Brand: SZCX
SKU: 110728481
Availability: InStock

US$ 860 - 2,500 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SZCX

Model Number:

CX-NL2

Shenzhen Chuangxin Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SZCX

Model Number CX-NL2

Power Electronic

Usage Other, Torsion Tester, Torsion test

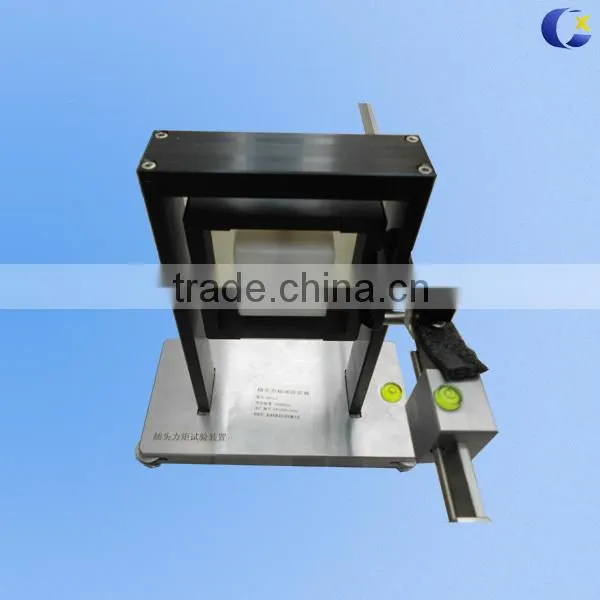

VDE0620 BS1363 plug and socket torque device

The TORQUE TESTER APPARATUS - designed according to IEC 60065 - is a test to check cuple one
by various elements that are connected to sockets.

Application:

Plug and Socket Torque Tester/Device is for compliance is checked by engaging the device, as during intended use, with the socket-outlet of a test apparatus.

Plug Torque Tester/Equipment is a device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.

With the machine not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position.After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position of a weight on the balancing arm.

Technical Parameter:
