E14 7006-3-15 Lamps Gauge For Testing Contact-making In Lampholders
According to the requirement of IEC60061, Chuangxin produce different high accuracy and high quality "Go" and "Not go" gauge.
Purpose:
To check E14 lampholders in respect of: A) contact-making with lamps having
adverse dimesions.
B) protection against accidental contact with live parts, viz, the cap shell, during insertion of a lamp.
Testing:
The holder is connected in the test circuit as shown.
A) with switch A in position 2 and switch B open, the gauge is screwed fully home. In the position, both lamps shall light.
B) with switch A in postion 1 and switch B closed, the gauge is screwed in slowly until either of the lamps lights. With the gauge held in this position, switch B is opened and the test probe at the side of the gauge is slid downwards as far as it will go into the space between the gauge and the holder. In this position the lamps shall not light.

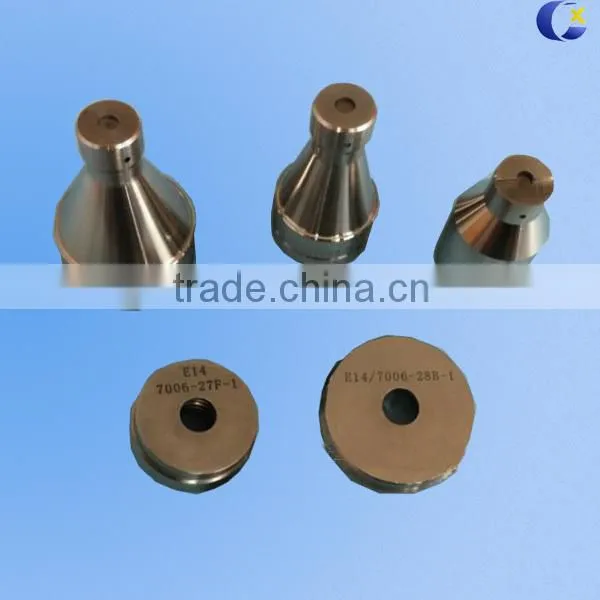

CX-E14 is for E14 lamp cap standard source measurement. It includes 7006-27F-1, 7006-28B-1, 7006-54-2, 7006-27G-1, 7006-55-2.
| 7006-27F-1 | Go gauge for E14 caps on finished lamps |
| 7006-28B-1 | Not go gauge for E14 caps on finished lamps |
| 7006-55-2 | Gauge for finished lamps fitted with E14 caps for testing protection against accidental contact |
| 7006-27G-1 | Go gauge for dimension S1 of E14 caps on finished lamps |
| 7006-54-2 | Gauge for finished lamps fitted with E14 caps for testing contact making |
CX-E14H is for E14 lamp holder standard source measurement. It includes 7006-25-7, 7006-26-4, 7006-30-2, 7006-30A-1, 7006-31-4
Model Number |
Gauge Name |
7006-25-7 |
“GO” GAUGE FOR SCREW THREADS OF LAMPHOLDERS E10, E14 AND E40 |
7006-26-4 |
“NOT GO” GAUGES FOR SCREW THREADS OF LAMPHOLDERS E10,EP10,EY10,E14,E27,E39 AND E40 |
7006-30-2 |
PLUG GAUGE FOR E14 LAMPHOLDER FOR TESTING CONTACT-MARKING |
7006-30A-1 |
E14 PLUG GAUGE FOR LAMPHOLDERS E14 WITH CANDLE SHAPED SHAFT FOR CANDLE LAMPS FOR TESTING CONACT-MARKING |
7006-31-5 |
E14 GAUGE FOR TESTING CONTACT-MARKING AND PROTECTION AGAINST ACCIDENTAL CONTACT DURING INSERTION OF LAMPS IN LAMPHOLDERS |
IEC60238 Figure 5 |
E14 Test Cap for torque test clause 18 of IEC60238 |
IEC60238 Figure 11 |
E14 Test Cap for temperature test 14.4 and 19.3 of IEC60238 |
IEC60238 Figure 13 |
E14 Test cap A for lampholders E14 of IEC60238 |
IEC60238 Figure 13 |
E14 Test cap B for lampholders E14 of IEC60238 |
60399-IEC-04-1 |
“GO” Gauge for barrel thread of lampholders with shade holder ring E14 |
60399-IEC-04-1 |
“Not GO” Gauge for barrel thread of lampholders with shade holder ring E14 |
