Iec60698 Iec60061 Iec61184 E14 Cap Gauge For Led Lamp Bulb E14 Cap Gauges
Purpose of E14 Lamp Cap Gauge:
To check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps.
Testing of E14 Lamp Cap Gauge:
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with , or project beyond surface X

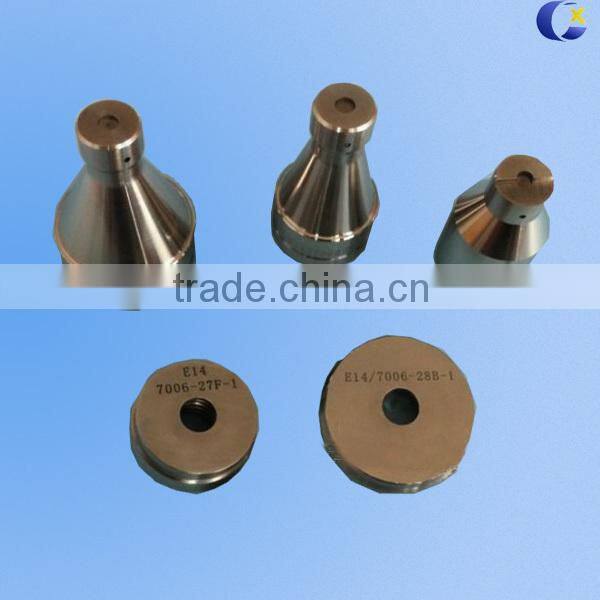

IEC60061-3 E14 Go No Go Thread Gauge
According to the requirement of IEC60061, Chuangxin produce different high accuracy and high quality "Go" and "Not go" gauge.
CX-E14 is for E14 lamp cap standard source measurement. It includes 7006-27F-1, 7006-28B-1, 7006-54-2, 7006-27G-1, 7006-55-2.
| 7006-27F-1 | Go gauge for E14 caps on finished lamps |
| 7006-28B-1 | Not go gauge for E14 caps on finished lamps |
| 7006-55-2 | Gauge for finished lamps fitted with E14 caps for testing protection against accidental contact |
| 7006-27G-1 | Go gauge for dimension S1 of E14 caps on finished lamps |
| 7006-54-2 | Gauge for finished lamps fitted with E14 caps for testing contact making |
CX-E14H is for E14 lamp holder standard source measurement. It includes 7006-25-7, 7006-26-4, 7006-30-2, 7006-30A-1, 7006-31-4
| 7006-25-7 | "Go" gauge for screw threads of lamphoders |
| 7006-26-4 | "Not Go' gauge for screw threads of lampholders |
| 7006-30-2 | Plug gauge for E14 lampholder for testing contact |
| 7006-30A-1 | Plug gauge for lampholder E14 with candle shaped shaft for candle lamps for testing contact making |
| 7006-31-4 | Gauge for testing contact-making and protection against accidental contact during insertion of lamps in lampholders |
Our product range: IEC & UL Test Probe,Mechanical Impact Tester, IEC Test Instruments,
Lamp Cap & Holder Gauge & Test Instrument,Temperature Rise Test Instrument,Electric Safety Tester,Environmental Test Instrument,Plug & Socket Gauge,EMC & LED Test Instrument,ETC
