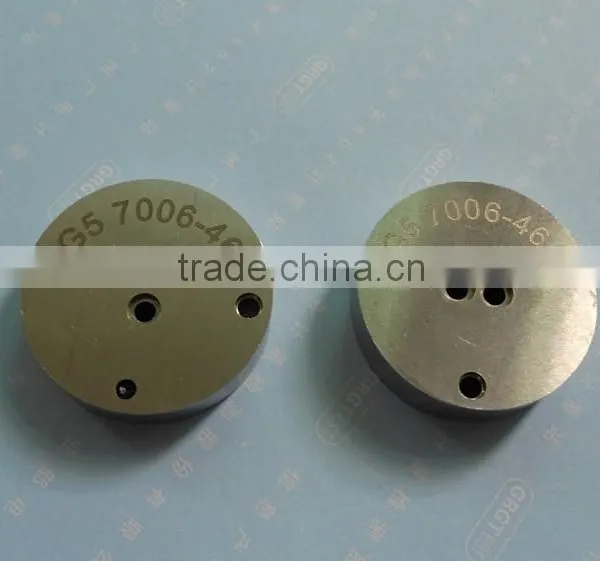

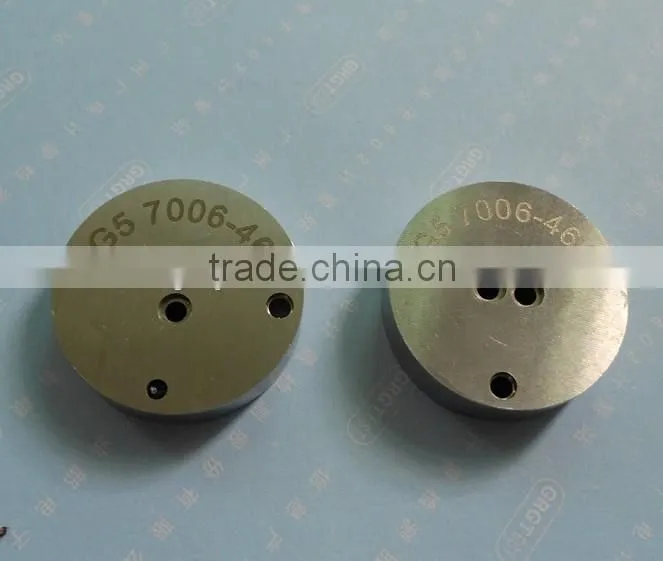

G5 GAUGE FOR LAMPS(GO AND NOGO)
"GO"AND "NOT GO" GAUGE FOR UNMOUNTED BI-PIN CAP (NOT FOR USE ON FINISHED LAMPS) G5, Cód. 7006-46-3
GO" GAUGE FOR BI-PIN CAP ON FINISHED LAMPS G5, Cód. 7006-46A-3
Purpose:
To check dimensions E min., E max., F min., G max., H max. and the combined bin diameter and displacement of pins (including bosses) of unmounted bi-pin caps G13.
Testing:
The pins of the cap shall enter the gauge at surface O and, when fully inserted, the surfaces of cap and gauge shall contact. In this position the ends of the pins shall be co-planar with or project beyond surface X. Each individual pin shall enter the hole e2 until the boss of the pin and the surface of the gauge contact, but they shall not enter hole e1. The boss of the individual pin shall enter hole b at surface O until the surface of the cap and the gauge contact.
Category of G Gauges:
7006-44-4: "Go" & "Not Go" Gauge for unmounted BI-PIN cap
7006-45-4: "Go" Gauge for BI-PIN cap on finished lamp
