Specifications
Temperature Measuring Board test1: in stock
2: 1year warranty
4.Good service
4.high quality

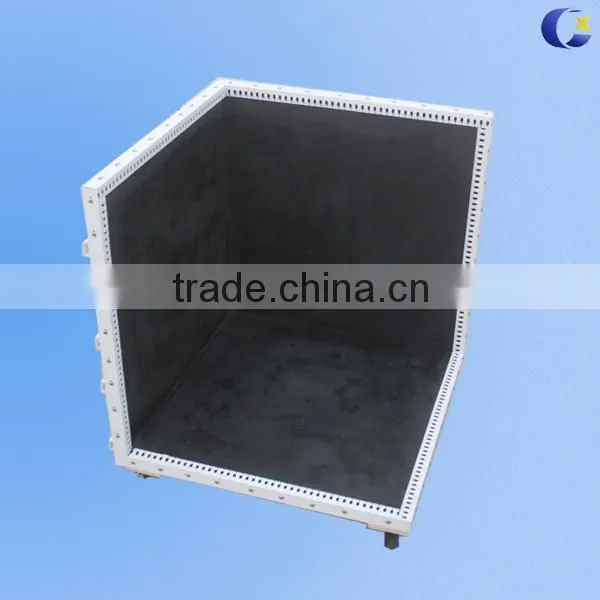

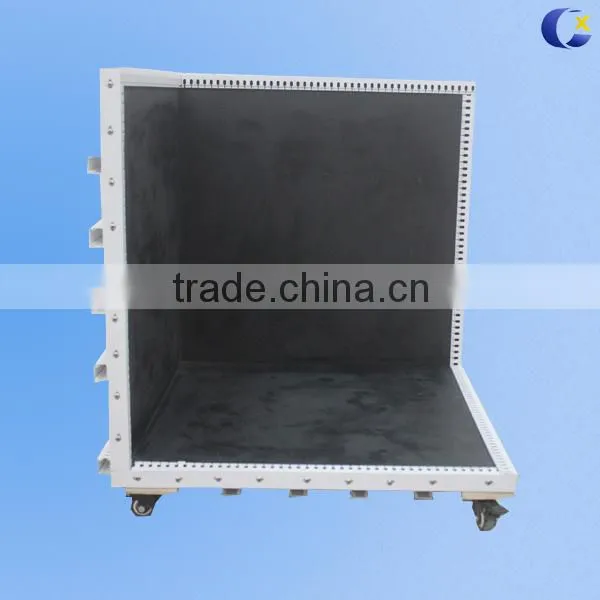

Temperature Measuring Board test of all kinds of electronic products supply
Standard Temperature Test Corner conform to IEC60335-1:2004 and GB4706.1-2005 can be used to the temperature test of all kinds of electronic products supply, in conformity with the standards requirement of the environmental conditions.
The Temperature Test Corner is used for the measurement of the temperature radiated by different equipment during the tests from heating and abnormal operation.
One is designed and made with the intention of determining the fulfillment of different norms as far as the registry from temperatures during the operation of the apparatus under test.
| Dimension | 600X600X600mm | 800x800x1000mm | 1000x1000x1000mm |
| Thermocouple | <0.3mm Import K, T, J for optional | ||
| Thermocouple disposal | Disposal in a line bank( select and fit out thermocouple plug and socket) | ||
| Test temperature sheet copper | Diameter15mm, thickness1mm sheet brass | ||
| Test Temperature point | 20point, 32point, 48point(other); | ||
| Test Temperature point disposal | 100mm X 100mm / 76X76mm Square |
||
| Glued board | Thickness about 20mm, Berlin black in face,Stick the gray sheet glued board in rear | ||
| Active part | Install 4 pcs active wheels | ||
| Provide | Personalized service | ||
Service we can provide:
1.High quality guarantee.
2.Shipment/Freight with professional documents.
3.Packing as your request, with photo before shipment.
4.Professional after-service from our engineers.
5.Warrantly period one year.
Our advantages:
Professional technology support.
Full experience of large numbers containers loading in Chinese sea port.
Fast shipment by reputed shipping line.
Best service after shipment with emails.
Cargoes photo before and after loading into container.
Our concept:
1.Client is first. We are trying to bring maximum profit to our clients and we only share small.
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
We will be responsible for not only our products, our clients, our suppliers, also the society
Our product range: IEC & UL Test Probe,Mechanical Impact Tester, IEC Test Instruments,
Lamp Cap & Holder Gauge & Test Instrument,Temperature Rise Test Instrument,Electric Safety Tester,Environmental Test Instrument,Plug & Socket Gauge,EMC & LED Test Instrument,ETC
Welcome to your kindly enquiries!
