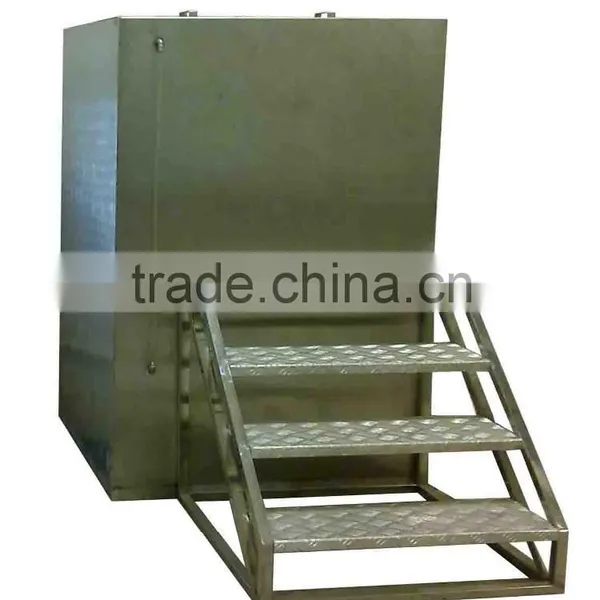

IEC60529 IPX7 Water immersion test chamber
Overview
This device is designed and manufactured accordance with requirements of IEC 60529 and GB4208-2008<Enclosure protection class> IPX7 level. Applied to waterproof test of luminaire and household appliance.
Technical Parameter
l. Immersion tank size:W800mm*D1000mm*H1400mm;
2. Liquid level control: Float switch + overflow pipe;
3. Specimen installed on the platform of the plate with hole, Platform raise and fall through electronic lifting device;
4. Specimen holder lifting height:1.5m;
5. Lifting speed: Approximately 100mm/s, adjustable;
6. Immersion depth display: Encoder count, digital display the specific highness value;
7. Immersion depth base: Lower surface of specimen;
8. Testing time: range from 0 to 99s (adjustable);
9. Scale length:1300mm, precision 1mm
10. Separate display water temperature and specimen temperature;
11. Provide special stainless steel, convenient to conduct a test.
