Help CenterAirconditioning Relay
US$ 0.5 - 0.59
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YONGNENG
Model Number:
YX209H-S-112DM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
YONGNENG
Model Number
YX209H-S-112DM
Theory
Electromagnetic Relay
Usage
General Purpose
Size
Miniature
Protect Feature
Sealed
Contact Load
High Power

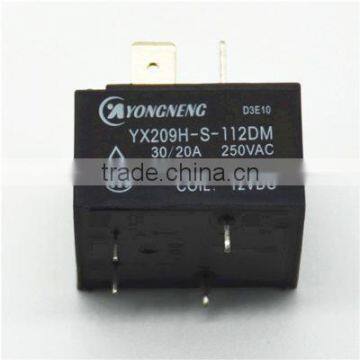

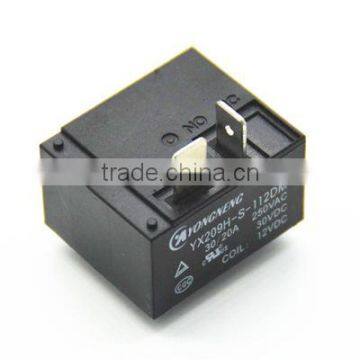

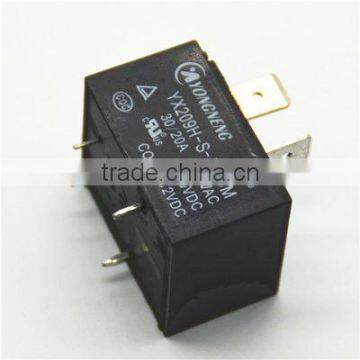

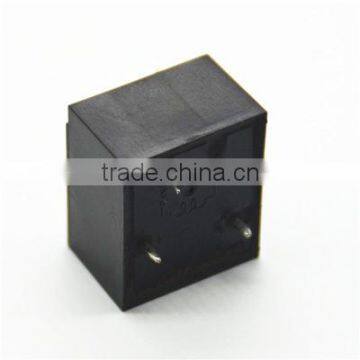

Product Images
Product Images for Airconditioning Relays
Coil Data
Coil Data for Airconditioning Relays
| Nominal Coil Voltage (VDC) | 5v, 6v, 9v,12v,15v,18v, 24v, 48v,110v |
| Nominal Operating Power | 0.9W |

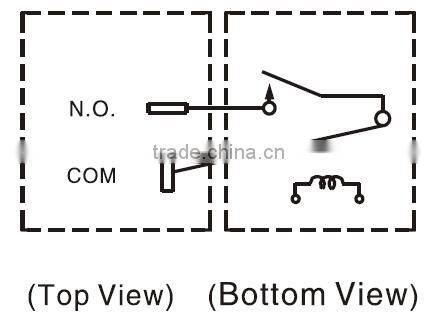

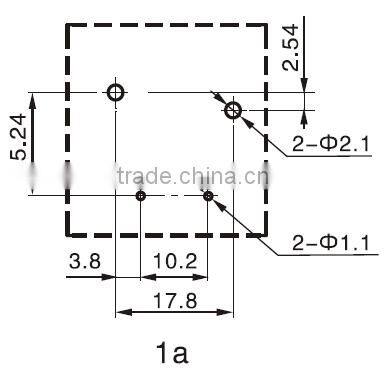

Wiring and Bottom
Wiring and Bottom Pin Position for Airconditioning Relays
1A, 1B, 1C AVAILABLE
BELOW IS FOR 1A
Parameters
Parameters for Product Airconditioning Relays
| Operate Time | 15ms Max. |
| Release Time | 10ms Max. |
| Insulation Resistance | 1000MΩ Max.(500VDC) |
| Dielectirc Strength | between open contacts: 1500VAC, 50/60Hz 1Min. |
| between coil&contacts: 2500VAC, 50/60Hz 1Min. | |
| Vibration Resistance | Destructive: 10-55HZ, Double amplitude of 1.5mm |
| Functional: 10-55HZ, Double amplitude of 1.5mm | |
| Shock Resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40C-+85C (Not Condensing) |
| Weight | Approx.27g |
Usage
Different Usage for this Airconditioning Relays
- household appliances
- airconditioner
- automobile
- heater
Characteristics
Characteristics for Aircontioning Relays
- Plastic housing size: 32*27.4*19.8mm
- High contact load: 40A
- Quick-connecting pins
Packing Details
Packing Details for Airconditioning Relays
Word Description
Product Size: 32x27.4x19.8mm , carton size: 360*210*325mm(w*d*h), white box size: 230*175*70mm(w*d*h), 400pcs per carton,Carton Gross Weight:12kgs, 4 layers per ctn, 8 white boxes per ctn, 50pcs per white box, 2 layers per white box, a white clapboard as the last picture in the middle of white box, a white thin paper as the second last pic on the top of relays for protection.
