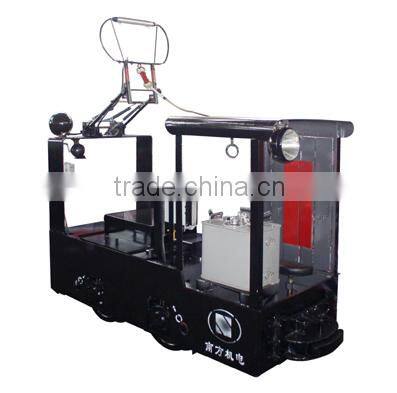

Trolley Electric Locomotive for Small Underground Mine
Negotiable
/ Set
1 Set(Min. Order)
- China ports
- T/T Money Gram
You May Like
Product Details
| Fuel Type | Electric | Horsepower | 2.55-3.24KN | |
| Dimensions (L x W x H) (mm) | 2340*914*1550 | Speed (km/h) | 4.54-6.6 | |
| Place of Origin | Hubei, China | Brand Name | NADI | |
| Model Number | CJY1.5/6,7,9G |
Product Description
Specifications
11.5T trolley locomotive2.simple structure and easy operation
3.two voltage specifications:100V and 250
Mode : CJY1.5/6,7,9G
Trolley locomotive
Technical Performance
Adhesive weight | 1.5T | |
Voltage of battery | 100V | 250V |
Horsepower×Set | 6.5kwx1, 3.5kwx1 | |
Hourly Traction | 3.24KN, 2.55KN | |
Max Traction | 3.68KN | |
Speed (hourly) | 6.6 km/h,4.54km/h | |
Max Speed | 10km/h | |
Wheelbase | 650mm | |
Track gauge | 600,762,900mm | |
Min curve radius | 5m | |
traction height | 320mm,210mm | |
wheel diameter | 460mm | |
Speed control mode | Resistance control | |
Braking Mode | Hand, Mechanical brake | |
1.5Ttrolley electric locomotive has two specifications, 100V for internal frame, 250V for outer frame
Single-motor traction, resistance
