CJY14/6,7,9G Trolley Electric Locomotive for Underground Mine

CJY14/6,7,9G Trolley Electric Locomotive for Underground Mine thumbnail-1
CJY14/6,7,9G Trolley Electric Locomotive for Underground Mine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Fuel Type:
Electric
Horsepower:
26.68KN
Dimensions (L x W x H) (mm):
4900*1350*1700mm
Contact Supplier Request Quote Chat Now
Hunan South Electric Locomotive Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Type Electric
Horsepower 26.68KN
Dimensions (L x W x H) (mm) 4900*1350*1700mm
Speed (km/h) 12.87km/h
Place of Origin Hunan, China
Brand Name NADI
Model Number CJY14/6,7,9G

Specifications

1. small size ,great carrying ability, fast speed;
2. easy operation and maintainance;

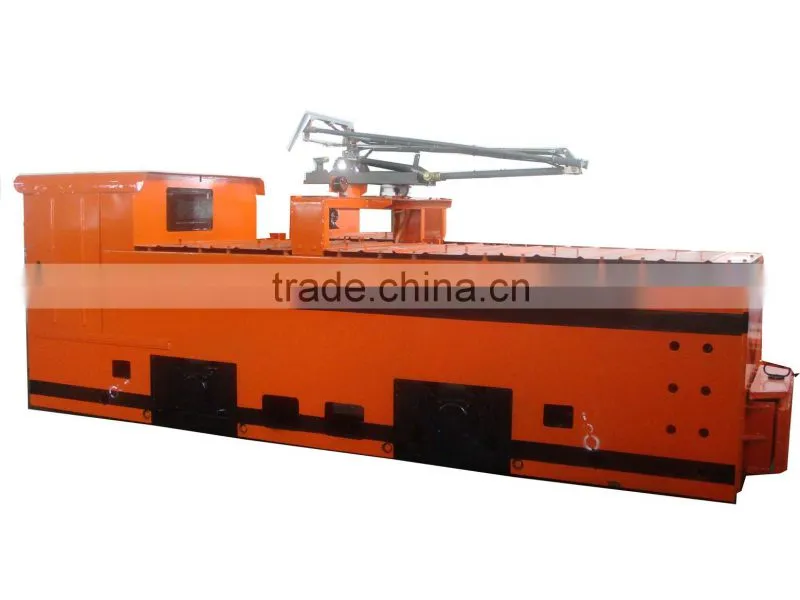

CJY14/6,7,9G trolley electric locomotive for underground mine

14T locomotive is a new product specially designed for large mine, it has the properties of small overall dimension, short wheelbase, small turning radius, fast speed, and big traction etc.



  Mode :  CJY14/6,7,9G





Trolley locomotive





Technical Performance





Adhesive weight

14T

Voltage of battery

550V

Horsepower

52*2kw

Hourly Traction

26.68KN

Max Traction

34.3KN

Speed (hourly)

12.87 km/h

Wheelbase

1700mm

Track gauge

600,762,900mm

Min curve radius

12m

traction height

320mm

430mm

wheel diameter

760mm

Speed control mode

Resistance,IGBT control

Braking Mode

Air, Mechanical brake



 The electric locomotive adopts V type rubber spring, can withstand vibration and impact from longitudinal, transverse and vertical direction, the wing is made of rubble elastic wing plate to ensure the product has small impact when pass unloading hole
