Specifications
1. great carrying ability, low failure rate2. easy operation and maintainance
3. suitable for large mines

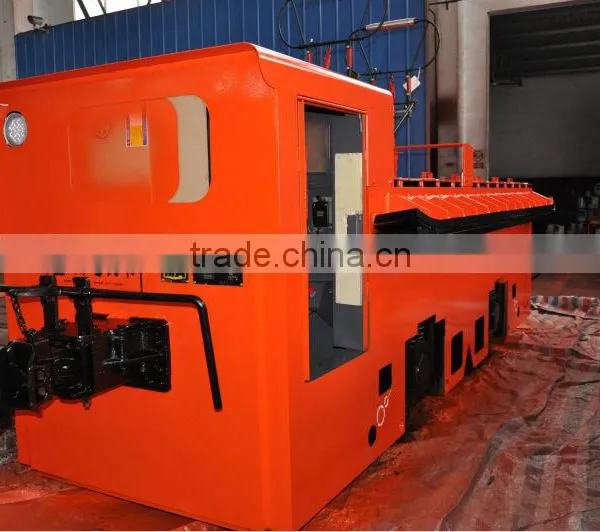

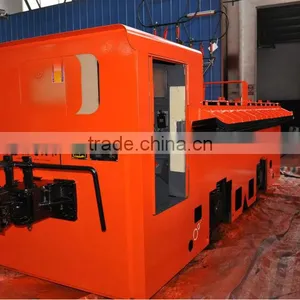

14T locomotive is a new product specially designed for large mine, it has the properties of small overall dimension, short wheelbase, small turning radius, fast speed, and big traction etc.
Mode : CJY14/6,7,9G
Trolley locomotive
Technical Performance
Adhesive weight |
14T |
|
Voltage of battery |
550V |
|
Horsepower |
52*2kw |
|
Hourly Traction |
26.68KN |
|
Max Traction |
34.3KN |
|
Speed (hourly) |
12.87 km/h |
|
Wheelbase |
1700mm |
|
Track gauge |
600,762,900mm |
|
Min curve radius |
12m |
|
traction height |
320mm |
430mm |
wheel diameter |
760mm |
|
Speed control mode |
Resistance,IGBT control |
|
Braking Mode |
Air, Mechanical brake |
|
(LxWxH) mm: L 4900mm, W 1060,1350mm, H 1700mm
The electric locomotive adopts V type rubber spring, can withstand vibration and impact from longitudinal, transverse and vertical direction, the wing is made of rubble elastic wing plate to ensure the product has small impact when pass unloading hole
