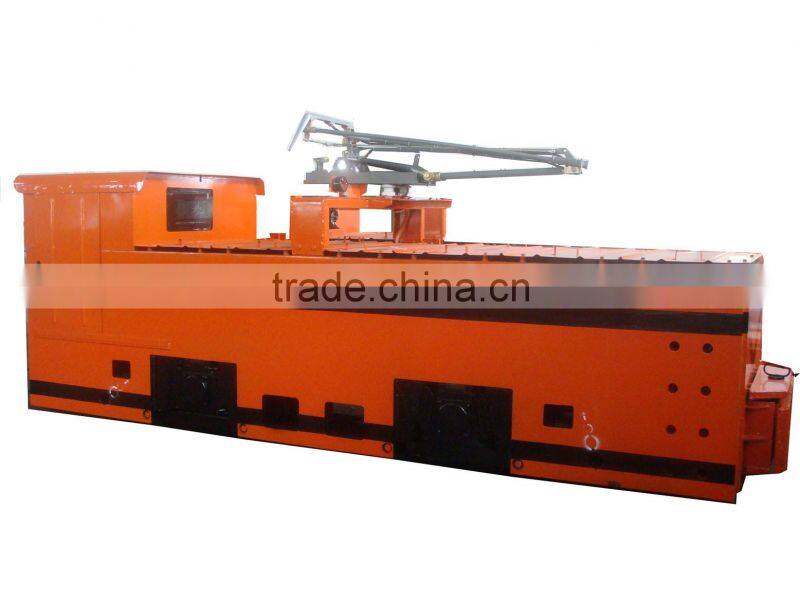

14 Tonner Trolley Electric Locomotive for Underground Mine
- China port
- T/T
You May Like
-
Trolley Electric Locomotive for Small Underground Mine
-
CJY6 Overhead Line Locomotive for Coal Mine
-
Trolley Electric Locomotive for Underground Mine
-
10 Tonner Overhead Line Electric Locomotive for Underground Mine
-
3T Trolley Electric Locomotive for Underground Mine
-
Trolley Locomotive for Large Mining
Product Details
| Fuel Type | Electric | Horsepower | 26.68KN | |
| Dimensions (L x W x H) (mm) | 4900*1350*1700mm | Speed (km/h) | 12.87km/h | |
| Place of Origin | Hunan, China | Brand Name | NADI | |
| Model Number | CJY14/6,7,9G |
Product Description
Specifications
1. small size ,great carrying ability, fast speed;2. easy operation and maintainance;
3. suitable for large mine.
14T locomotive is a new product specially designed for large mine, it has the properties of small overall dimension, short wheelbase, small turning radius, fast speed, and big traction etc.
Mode : CJY14/6,7,9G
Trolley locomotive
Technical Performance
Adhesive weight | 14T | |
Voltage of battery | 550V | |
Horsepower | 52*2kw | |
Hourly Traction | 26.68KN | |
Max Traction | 34.3KN | |
Speed (hourly) | 12.87 km/h | |
Wheelbase | 1700mm | |
Track gauge | 600,762,900mm | |
Min curve radius | 12m | |
traction height | 320mm | 430mm |
wheel diameter | 760mm | |
Speed control mode | Resistance,IGBT control | |
Braking Mode | Air, Mechanical brake | |
The electric locomotive adopts V type rubber spring, can withstand vibration and impact from longitudinal, transverse and vertical direction, the wing is made of rubble elastic wing plate to ensure the product has small impact when pass unloading hole
