2016 Newest Trolley Locomotive
- China ports
- T/T Money Gram
You May Like
Product Details
| Fuel Type | Electric | Horsepower | 13.05-15.09KN | |
| Dimensions (L x W x H) (mm) | 4470*1354*1550mm | Speed (km/h) | 11 km/h | |
| Place of Origin | Hunan, China | Brand Name | NADI | |
| Model Number | CJY7/6,7,9G |
Product Description
Mode : CJY7/6,7,9G

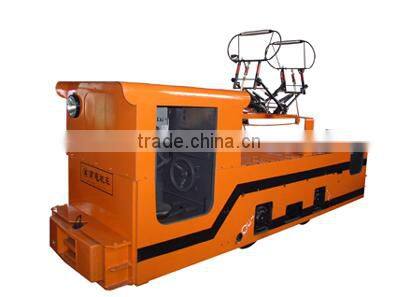

Trolley locomotive
Technical Performance
dimensions(LxWxH)(mm) : L :4470mm,4456mm W :1054mm, 1354mm H: 1550mm
Adhesive weight | 7T | |
Voltage of battery | 250V | 550V |
Horsepower (traction motor) | 2*21kw, 2*24kw | |
Hourly Traction | 13.05/15.09KN | |
Max Traction | 17.2KN | |
Speed (hourly) | 11km/h | |
Wheelbase | 1100mm | |
Track gauge | 600,762,900mm | |
Min curve radius | 7m | |
traction height | 320mm | 430mm |
wheel diameter | 680mm | |
Speed control mode | Resistance, chopper control | |
Braking Mode | Mechanical brake | |
This locomotive is used for hauling mine cars, transporting mineral or equipments and personnel in underground mine with explosive mash gas and ash, it also can be used in surfaced mine, tunnel, and factory. As a conveyance, locomotive runs on track.
