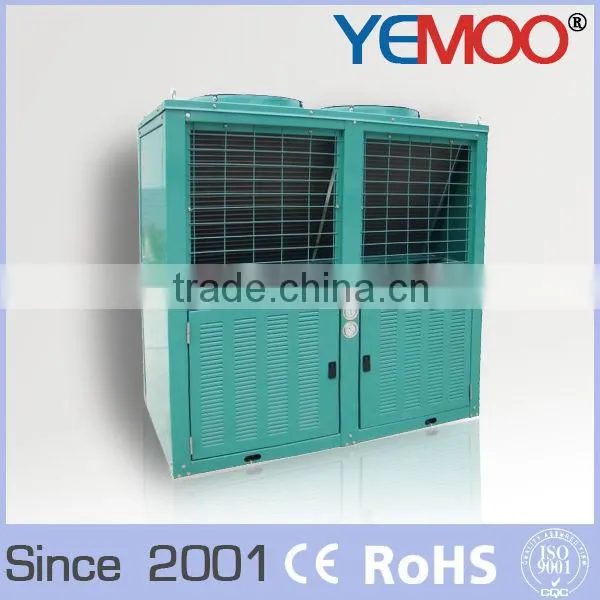

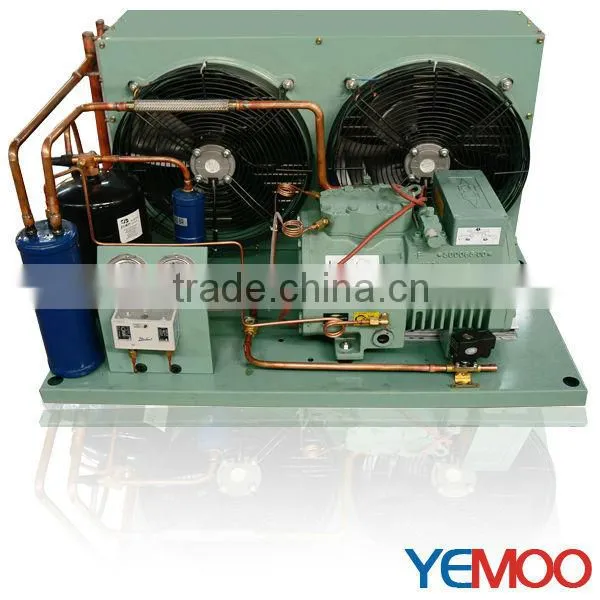

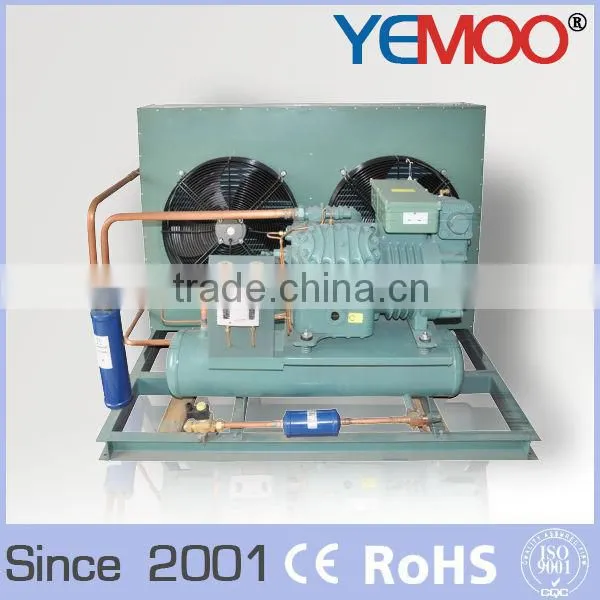

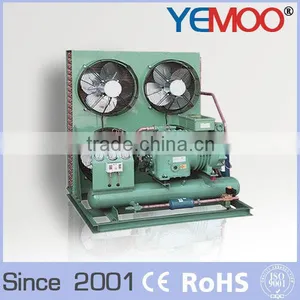

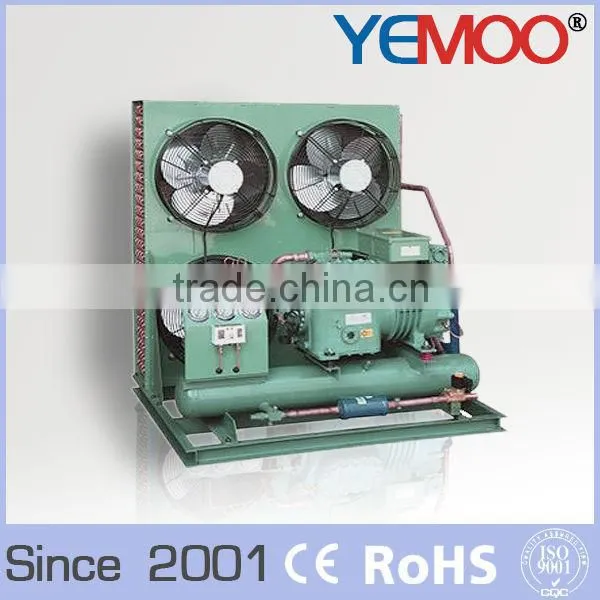

Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room

Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room thumbnail-1
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room thumbnail-2
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room thumbnail-3
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room thumbnail-4
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room thumbnail-5
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room thumbnail-6
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room photo-1
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room photo-2
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room photo-3
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room photo-4
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room photo-5
Copeland Hermetic Air Cooled Condensing Unit--box Type With v Type for Solar Power Cold Room photo-6
US$ 680 - 2,800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Condensing Unit
Place of Origin:
Zhejiang, China
Brand Name:
YEMOO
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shangai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Condensing Unit
Place of Origin Zhejiang, China
Brand Name YEMOO
Model Number YMB4-200A copeland hermetic air cooled condensing unit
Certification CE, ROHS
After-sales Service Provided Overseas third-party support available



Product Description

Characteristics:

1. copeland hermetic air cooled condensing unit for medium & high temperature (environment +12oC~ -10 oC)



2. copeland hermetic air cooled condensing unit for low temperature & frozen environment (-10 oC ~ -30 oC)



3.Equipped with YEMOO semi-hermetic piston compressor



4.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.



5.Shell &tube water condensers use high efficient wire-whorled copper pipes which can highly increase condensers’ heat exchanging efficient. Take small volume and keep light weight All condensers are produced and inspected strictly based on “Pressure Vessel of Refrigeration equipment” to ensure products’ quality.



6.Equipped with well-known brand of refrigeration parts:

1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.

2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.



7.We offer additional parts to meet your special requests.



Other components:

Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame



Optional components:

Shock absorber, oil separator, gas liquid separator

If you need any further information, please feel free to contact us.



We offer customize service, OEM welcomed!





Technical Data
Technical data Air cooling condensing unit for low temperature
Unit model YMB4-030A YMB4-040A YMB4-050A YMB4-080A YMB4-100A YMB4-150A YMB4-200A YMB6-300A YMB6-400A
Compressor model YMB4-030 YMB4-040 YMB4-050 YMB4-080 YMB4-100 YMB4-150 YMB4-200 YMB6-300 YMB6-400
Norminal motor power (KW) 2.2 2.94 3.67 5.88 7.35 11.02 14.7 22 29.4
Refrigerant R22/R404A/R507C/R134A
Power 380~420V-3PH-50Hz
Range of Eva. Temp.(oC) -5 ~ -40 oC
Fitting environment Temp.(oC) -10 ~ -35 oC







Dimension and installing dimension Condenser Receiver Dimension Installation Size Connecting tube Weight
Air Cap. Volume A B C E F Air Inlet Liquid
Model M3/h dm3 mm mm mm mm mm Ø(mm) Ø(mm) kg
YMB4-030A 6000 6 1010 710 570 960 445 22 12 133
YMB4-040A 6000 8 1010 710 570 960 445 28 12 139
YMB4-050A 6000 10 1010 710 680 960 445 28 12 165
YMB4-080A 7200 17 1240 795 1000 1140 755 35 16 298
YMB4-100A 12000 17 1240 795 1100 1140 755 35 16 315
YMB4-150A 12000 22 1240 845 1200 1140 805 42 22 391
YMB4-200A 24000 25 1600 925 1200 1500 885 54 22 454
YMB6-300A 27000 40 1300 460 800 1260 420 54 22 349
YMB6-400A 36000 45 1440 460 800 1000 420 54 28 367








Detailed Images

 copeland hermetic air cooled condensing unit--box type with v type for solar power cold room







Packaging & Shipping













Our Services



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.
