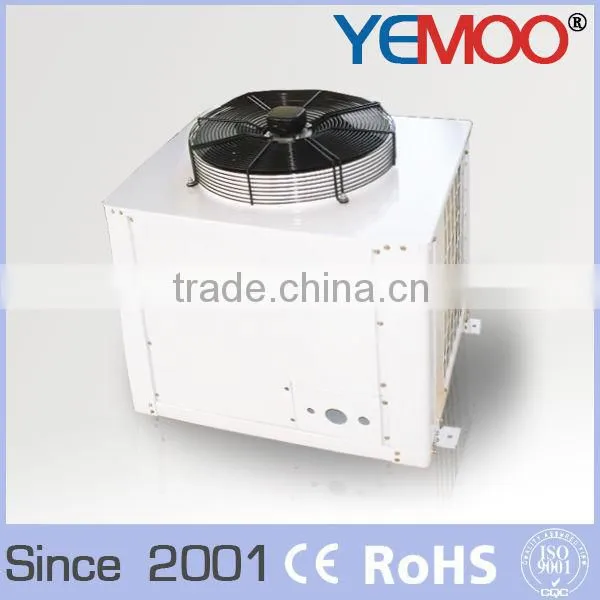

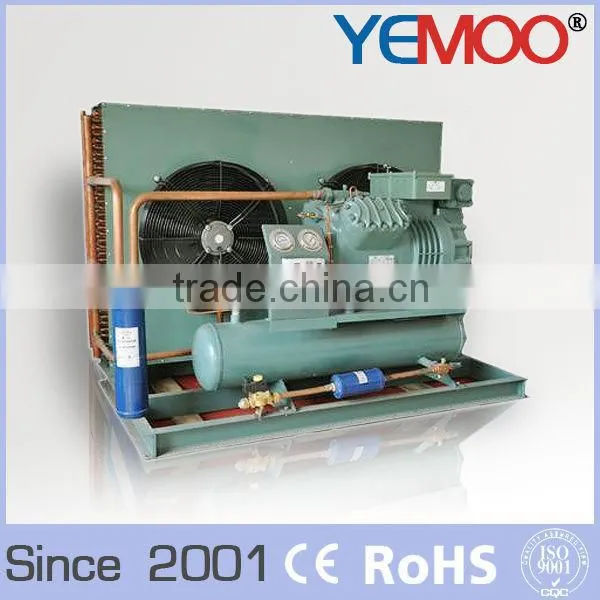

r404a condensing unit for cold room storage
Characteristics:
1.Condensing unit for medium & high temperature (environment +12oC~ -10 oC)
2.Condensing unit for low temperature & frozen environment (-10 oC ~ -30 oC)
3.Equipped with YEMOO semi-hermetic piston compressor
4.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.
5.Shell &tube water condensers use high efficient wire-whorled copper pipes which can highly increase condensers’ heat exchanging efficient. Take small volume and keep light weight All condensers are produced and inspected strictly based on “Pressure Vessel of Refrigeration equipment” to ensure products’ quality.
6.Equipped with well-known brand of refrigeration parts:
1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.
2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.
7.We offer additional parts to meet your special requests.
Other components:
Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame
Optional components:
Shock absorber, oil separator, gas liquid separator
If you need any further information, please feel free to contact us.
We offer customize service, OEM welcomed!
| Technical data | Air cooling condensing unit for medium & hight temperature | ||||||||||
| Unit model | YMB2-031A | YMB2-041A | YMB4-051A | YMB4-071A | YMB4-101A | YMB4-151A | YMB4-201A | YMB4-251A | YMB4-301A | YMB6-401A | YMB6-501A |
| Compressor model | YMB2-031 | YMB2-041 | YMB4-051 | YMB4-071 | YMB4-101 | YMB4-151 | YMB4-201 | YMB4-251 | YMB4-301 | YMB6-401 | YMB6-501 |
| Norminal motor power (KW) | 2.2 | 3.0 | 3.7 | 5.3 | 7.4 | 11.0 | 14.7 | 18.4 | 22.0 | 29.4 | 36.8 |
| Displacement (W) | 5840 | 7225 | 8245 | 13651 | 15504 | 22270 | 27115 | 35360 | 40545 | 60775 | 72165 |
| Refrigerant | R22 | ||||||||||
| Power | 380V-3PH-50Hz | ||||||||||
| Starting Current (A) | 37.0 | 44.2 | 62.2 | 82.2 | 99.0 | 132.0 | 158.0 | 193.0 | 220.0 | 323.0 | 404.0 |
| Max Operating current(A) | 7.8 | 9.4 | 10.8 | 15.9 | 21.0 | 31.0 | 37.0 | 45.0 | 53.0 | 78.0 | 92.0 |
| Crankcase heater (W) | 0~120 | 100 | 140 | ||||||||
| Power of condensina fan motor | 90x2 | 120x2 | 120x4 | 120x4 | 120x4 | 120x4 | 370x2 | 250x4 | 250x4 | 550x3 | 750x3 |
| Fan motor working current | 0.2x2 | 0.3x2 | 0.26x2 | 0.26x4 | 0.26x4 | 0.26x4 | 0.8x2 | 0.54x4 | 0.54x4 | 1.2x3 | 1.6x3 |
| Range of Eva. Temp.(oC) | 0 ~ -20 oC | ||||||||||
| Fitting environment Temp.(oC) | +12 ~ -10 oC | ||||||||||
| Dimension and installing dimension | Condenser | Receiver | Dimension | Installation Size | Connecting tube | Weight | ||||
| Air Cap. | Volume | A | B | C | E | F | Air Inlet | Liquid | ||
| Model | M3/h | dm3 | mm | mm | mm | mm | mm | Ø(mm) | Ø(mm) | kg |
| YMB2-031A | 6000 | 6 | 1010 | 710 | 570 | 960 | 445 | 22 | 12 | 133 |
| YMB2-041A | 6000 | 8 | 1010 | 710 | 570 | 960 | 445 | 22 | 12 | 139 |
| YMB4-051A | 6000 | 10 | 1010 | 710 | 680 | 960 | 445 | 22 | 12 | 168 |
| YMB4-071A | 7200 | 15 | 1240 | 795 | 1000 | 1140 | 755 | 28 | 16 | 249 |
| YMB4-101A | 12000 | 17 | 1240 | 845 | 1100 | 1140 | 805 | 28 | 16 | 325 |
| YMB4-151A | 18000 | 22 | 1240 | 845 | 1300 | 1140 | 805 | 42 | 22 | 376 |
| YMB4-201A | 24000 | 25 | 1600 | 925 | 1300 | 1500 | 885 | 42 | 22 | 397 |
| YMB4-251A | 24000 | 40 | 1300 | 460 | 800 | 1260 | 420 | 54 | 22 | 323 |
| YMB4-301A | 27000 | 40 | 1300 | 460 | 800 | 1260 | 420 | 54 | 22 | 326 |
| YMB6-401A | 36000 | 45 | 1440 | 460 | 800 | 1000 | 420 | 54 | 28 | 366 |
| YMB6-501A | 48000 | 75 | 1440 | 460 | 800 | 1000 | 420 | 54 | 35 | 369 |
1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.
2.We insist on innovation,purchasing the international quality materials,strong technique support,strictly control the production.
3.We firmly believe quality first,perfect production responsibility system.
4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.
So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.
Yemoo's value is what we supply you is not only products,but also creating you most value.
