YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units

YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units thumbnail-1
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units thumbnail-2
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units thumbnail-3
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units thumbnail-4
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units thumbnail-5
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units thumbnail-6
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units photo-1
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units photo-2
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units photo-3
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units photo-4
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units photo-5
YEMOO U-box Type Refrigerator Freezing Copeland Semi Hermetic Condensing Units photo-6
US$ 800 - 1,800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, condensing unit, bitzer condensing unit
Place of Origin:
Zhejiang, China
Brand Name:
YEMOO
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shangai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, condensing unit, bitzer condensing unit
Place of Origin Zhejiang, China
Brand Name YEMOO
Model Number YMB4-250U copeland semi hermetic condensing units
Certification CE, ROHS
After-sales Service Provided Overseas third-party support available



Product Description



Features:



1.The  condensing unit has box type, compact structure and good-looking figure;



2.Scientific designs, steady air flow, can fully exert heat-transfer capacity of the condensing unit;



3.Rational performance design, high energy efficiency;



4.Axial fan, good-looking figure, low processing noise level of the copeland condensing units ;



5.Convenient design for maintain (front board can be easily take down);



6.We keep in touch well with our supplier, to guarantee material quality and production lead time of every order.



7.Various brand of compressor for your choice,such as copeland compressor,bitzer compressor;



8.Fits different refrigerant: R134a·R404A·R507A·R22





Range of application



Refrigeration industry, cold-room project

Agricultural, food, restaurants, chemical industry







Technical Data



Technical data Box type condensing unit with U type condenser
Unit model YMB4-050U YMB4-080U YMB4-100U YMB4-120U YMB4-150U YMB4-200U YMB4-250U YMB6-300U
Compressor model YMB4-050 YMB4-080 YMB4-100 YMB4-120 YMB4-150 YMB4-200 YMB4-250 YMB6-300
Rated input power (HP) 5 8 10 12 15 20 25 30
Titular refrigeration capacity (W) 7284 12333 14722 16796 21250 24565 31535 36380
Refrigerant R22
Power 380V-3PH-50Hz
Rated input current (A) 62.2 81 99 113 132 158 193 220
Max Operating current(A) 13.5 17 21 24 31 37 45 53
Power of crankcase heater (W) 0 ~ 120 140
Power of condensina fan motor 330 160x2 230x2 230x2 450x2 600x2 520x2 830x2
Fan motor working current 0.8 0.5x2 0.6x3 0.6x3 0.9x2 1.2x2 1.5x2 1.6x2
Range of Eva. Temp.(oC) +5 ~ -40 oC
Fitting environment Temp.(oC) +10 ~ -35 oC





 YEMOO u-box type refrigerator freezing copeland semi hermetic condensing units


  bitzer condensing unit

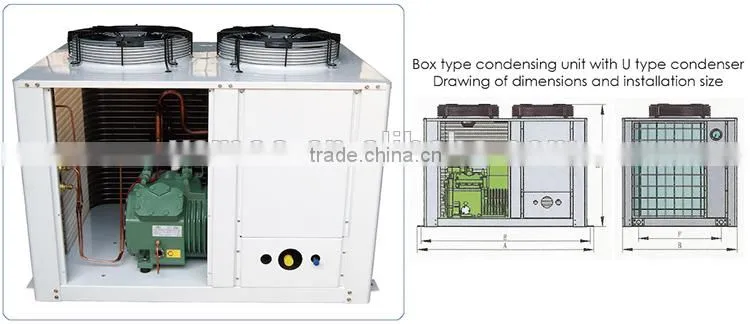

Dimension and installing dimension Receiver Dimension Installation Size Connecting tube Weight
Volume A B C E F Air Inlet Liquid
Model dm3 mm mm mm mm mm Ø(mm) Ø(mm) kg
YMB4-150U 22 1500 953 867 1460 730 1-5/8  7/8 261
YMB4-200U 30 1606 1003 1004 1566 780 1-3/8  7/8 280
YMB4-250U 38 1704 1053 1108 1664 830 2-1/8  7/8 326

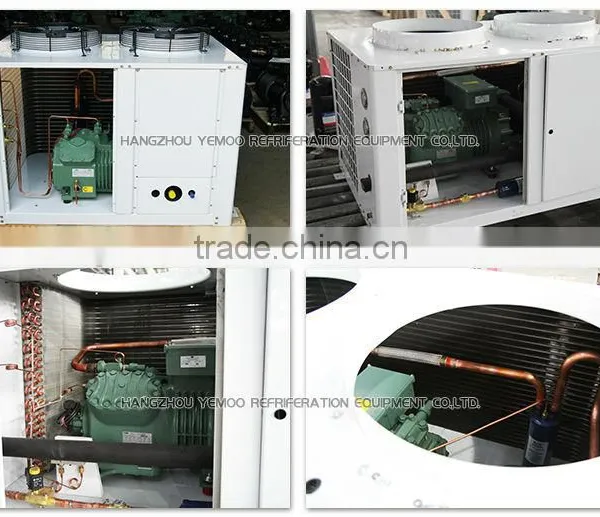

Detailed Images

 YEMOO u-box type refrigerator freezing copeland semi hermetic condensing unitsYEMOO u-box type refrigerator freezing copeland semi hermetic condensing units





Packaging & Shipping



YEMOO u-box type refrigerator freezing copeland semi hermetic condensing units





Our Services



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.







Certifications







Our workflow



YEMOO u-box type refrigerator freezing copeland semi hermetic condensing unitsYEMOO u-box type refrigerator freezing copeland semi hermetic condensing units
