Home > Products > Power tool > Drum Jack
Drum Jack
USD $200 - $3,000
/ Set
1 Set(Min.Order)
- Any port of China
- T/T
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | ChangLan | |
| Model Number | TJ |
Product Description

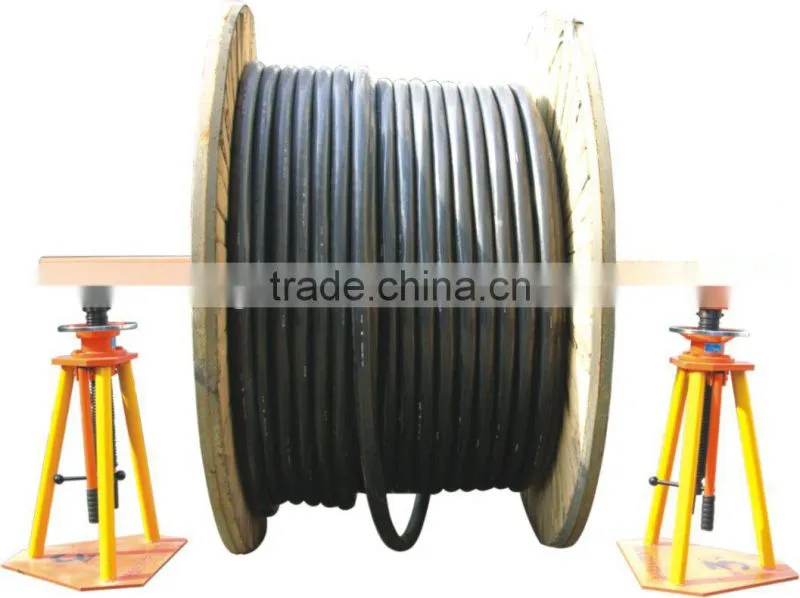

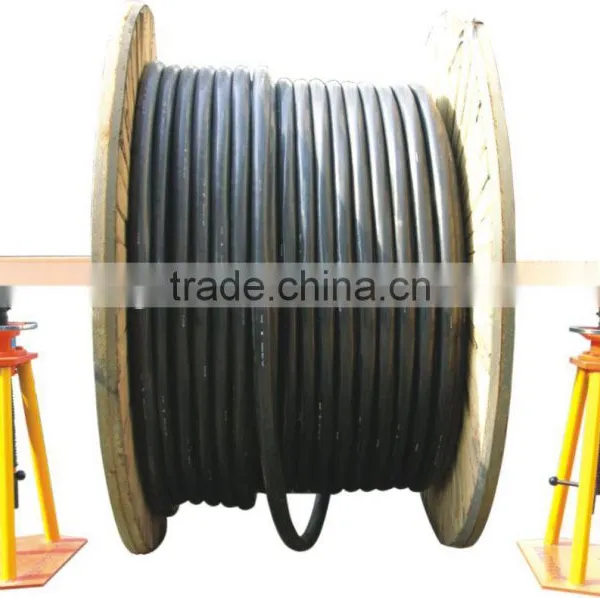

Drum Jack
Drum stand is used for supporting big cable drum, work with roller and drawing head. It’s a essential tool for laying cable.
It uses hydraulic jack as motive force and equipped with self-lock thread structure at the upper part. You just need to fasten the hand wheel to fix when the cable drum have been lifted at the required height.
| Model No. | Lifting Weight(T) | Cable Drum Diameter | Cross Bar (mm) |
| TJ-3 | 3 | 1420-2300 | self-prepare |
| TJ-5 | 5 | 2000-2500 | Dia.76*2400 |
| TJ-10B | 10 | 2700-3300 | Dia.102*3000 |
| TJ-20 | 20 | 3420-4000 | Dia. 146*3500 |
| TJ-30 | 30 | 3900-4400 | Dia.146*4500 |
Quality warranty & after sales service:
1. Secure prodction under ISO9001 & ISO14001 and OHSAS 18001 system;
2. 2-year warranty;
