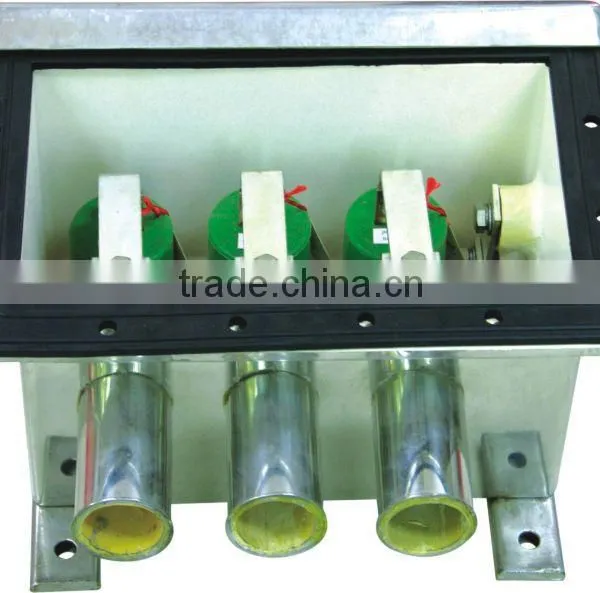

Three Phase Link Box Without SVL/Link Box With SVL

Name: Three Phase Link Box Without SVL/Link Box With SVL
Brand: changlan
SKU: 110685265
Availability: InStock

US$ 325 - 1,600 MOQ: 1 Set

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

changlan

Model Number:

ZJD/ZJDB

Changlan Electric Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name changlan

Model Number ZJD/ZJDB

Specifications

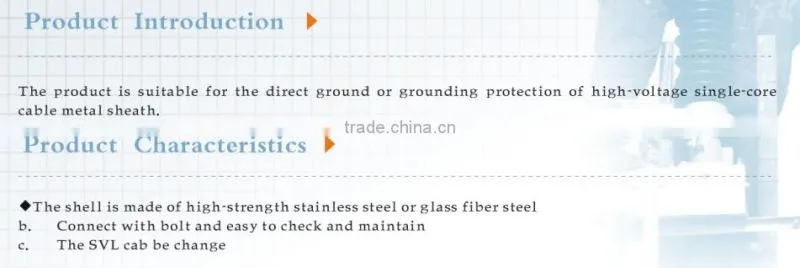

The product is suitable for earth directly or earth protection of metal sheath of high-voltage single-core power cable

Technical Data:

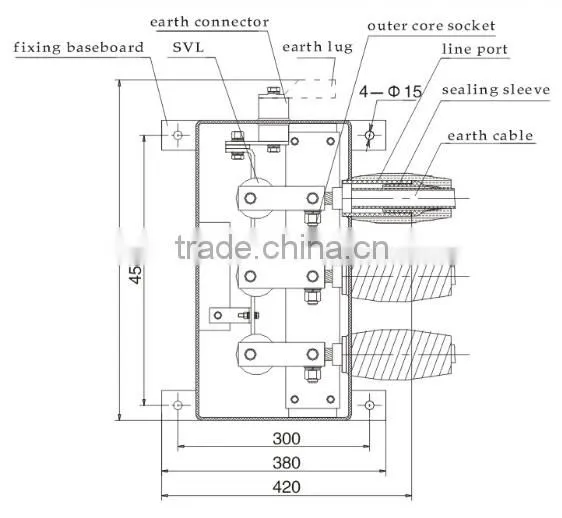

Description	Type	Overall dimension (LxWxH)	Installation hole size (LxW)	Suitable section (mm²)	Remark
Link box without SVL	ZJD	605x420x305	450x330-OD15	50-240	Big case
	ZJD-B	485x380x245	330x290-OD15	50-240	Small case
	ZJD-E	576x417x290	418x320-OD15	50-240	Stainless steel
	ZJD-J	570x300x490	520x210- OD 15	50-240	Stainless steel, vertical type
	DJD-2	460x390x345	300x336- OD 15	50-240	Single-phase
	ZJD-I	300x200x106	270x108- OD 15	50-240	Resin type
Link box with SVL	ZJDB	605x420x305	450x330- OD 15	50-240	Stainless
	ZJDB-B	485x380x245	330x290- OD 15	50-240	Big case
	ZJDB-E	576x417x290	418x320- OD 15	50-240	Small case
	ZJDB-J	570x300x490	520x210- OD 15	50-240	Stainless steel
	ZJDB-H	610x540x345	450x445- OD 15	50-240	Stainless steel, vertical type
	DJDB-1	542x354x320	300x300- OD 15	50-240	Single-phase,with counter
	DJDB-2	460x390x345	300x336- OD 15	50-240	Single-phase
	ZJDB-I	300x234x106	270x140- OD 15	50-240	Resin type
