Home > Manufacturing & Processing Machinery > Crane > Tower Crane > TT7015-10t JOST Type Topless Tower Crane

TT7015-10t JOST Type Topless Tower Crane

Name: TT7015-10t JOST Type Topless Tower Crane
Brand: TOP SKY
SKU: 110680997

TT7015-10t JOST Type Topless Tower Crane thumbnail-1

TT7015-10t JOST Type Topless Tower Crane photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Building Construction

Rated Loading Capacity:

10t

Contact Supplier Request Quote Chat Now

Top Sky Industrial Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

DALIAN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Building Construction

Rated Loading Capacity 10t

Rated Lifting Moment 212knm

Max. Lifting Load 10ton

Max. Lifting Height 204.6m

Span 70m

Place of Origin Liaoning, China

Brand Name TOP SKY

Model Number TT7015-10t

Certification ISO9001 CE EAC SGS Certificate

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

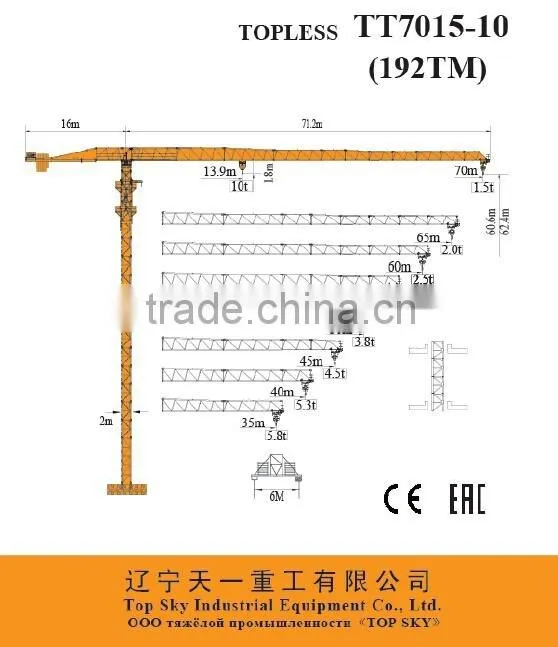

TOP SKY Tower Crane Model TT7015-10t

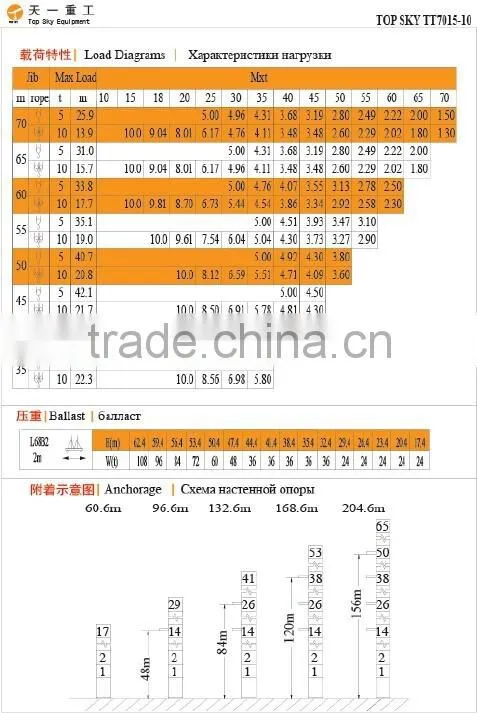

1.Lifting performance
Max. load		10t at 13.9m
Tip load		1.5t at 70m
Max. lifting moment		212knm
2.Working radius
Jib length		70m
Max. attachment height		204.6m
Free standing height(without attachment)fixed type		60.6m
Drum capacity		500m

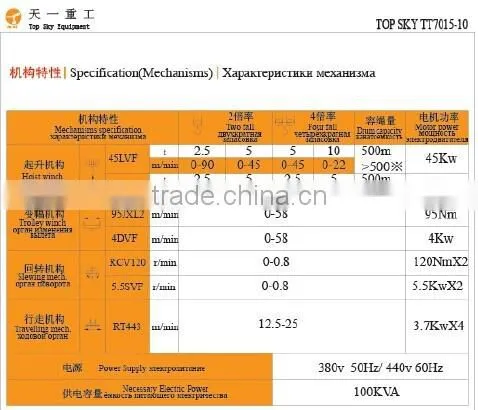

3.Working speed
Max. hoisting speed	45LVF	2 fall	5t 0-45 m/min
		4 fall	10t 0-22 m/min
	55RCS25	2 fall	5t 0-40 m/min
		4 fall	10t 0-20 m/min
Trolley speed(95JXL2)		0-58 m/min
Slewing speed(RCV120)		0-0.8 r/min
Travelling speed(RT443)		12.5-25 m/min

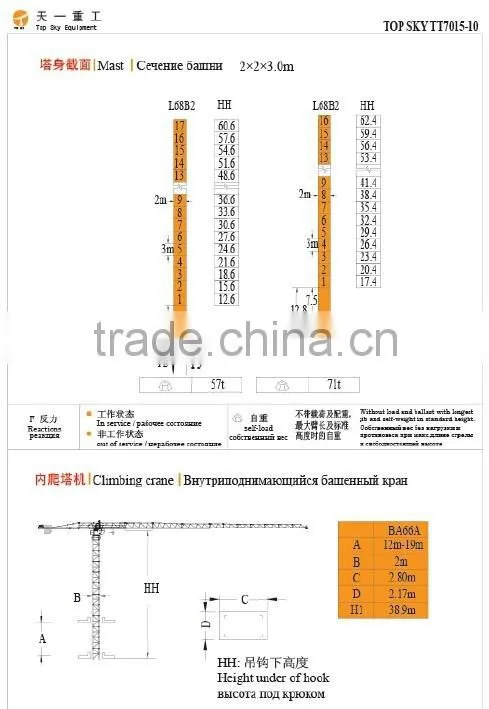

4.Steel structure
Standard mast section dimmention		2.0mX2.0mX3.0m
Select material		Q345B
Corrosion prevention		Sand-blasted before painting
5.Electric installation(draft)
Hoisting mechanism		45LVF 45Kw
		55RCS25 41Kw
Trolley mechanism		95JXL2 95Nm
Slewing mechanism		RCV120 120NmX2
Travelling mechanism(if choose travelling type)		RT443 3.7KwX4
Power supply		380v 50Hz/440V 60Hz
Necessary electric power		100KVA
Electric equipment		Schneider
6.Other parts and devices
Cab		With air conditioner and auto-wiper
Telescoping mechanism		Include
Pump and sylinder		Include
Main cable		Include
Foundation bolts		16 sets
7.Optional parameter		Draft	Optional items
Travelling mechanism		Fixed type	Travelling type or climbing type
Jib length		70m	40m 45m 50m 55m
Steel wire rope length		500m	>500m please contact us
Color		Yellow	As customer's requirement

HOISTING MECHANISM:70 RCS 25

Here introduce the features of 70RCS25 mechanism: just as the picture shows, the lifting winch includes:

1-Two motors: two similar traveller motors, the rotate speed is 1500 rotation/min, equiped with FCPL brake. What differs is the number of pinions, PV(low-speed) motor is 19 pinions, and GV(high-speed) motor is 38 pinions.

2-One gear reduction: formed by a helical pinion parallel transmission with double input and a spiral cone gear.

3-One coiling block: different diameters determines different pulling tension and lifting speed

4-One fan: help motor to dissipate heat from the outside. Every motor has an exterior ventilation device, which will stop working after the hoisting winch stops after three minutes.

TROLLEY MECHANISM: 95JXL1

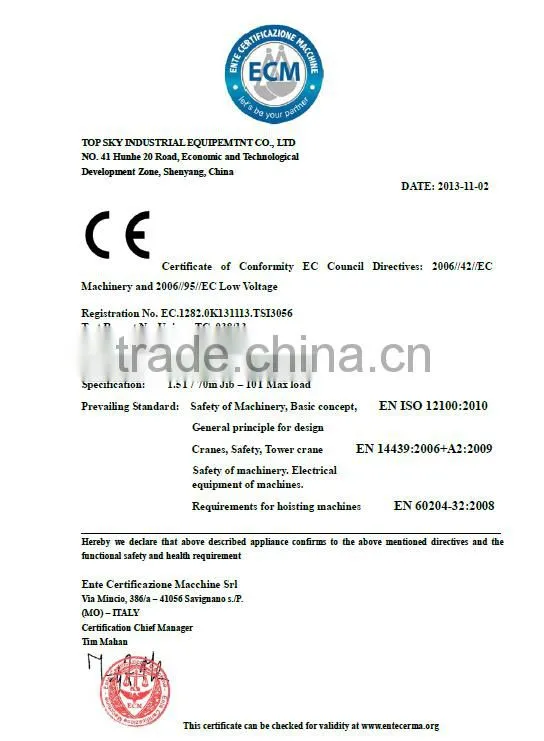

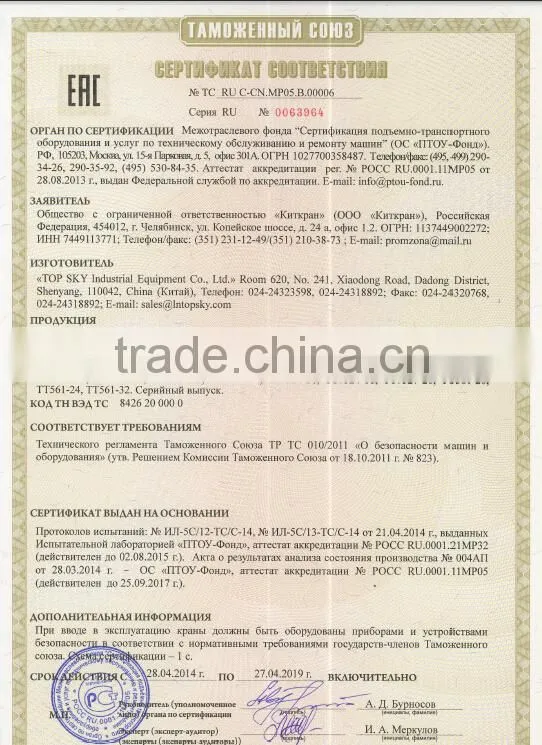

Our Certificates of Qualifications

Our Services

Good Quality: Gotten certification of ISO9000:2000 & CE & SGS & EAC.

Best price: Best offer with suitable payment terms.

Good Saled Service: Tow technicists provided to assistant installment,ect.( Buyer beared the fee).

Delivery on Time: Report order progress. Make sure Delivery on time.

Warranty: Provide a warranty of 12 months(Steel wire rope not included)from the bill date(arrival of destination).
