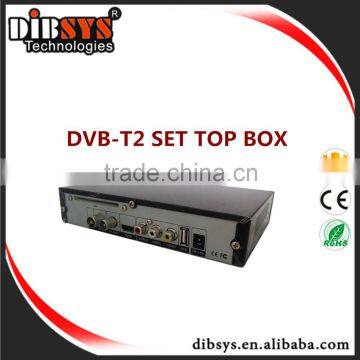

The Newest DVB-T2 HD SET TOP BOX

The Newest DVB-T2 HD SET TOP BOX thumbnail-1
The Newest DVB-T2 HD SET TOP BOX photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
STB420
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number STB420
Product Description


DVB-T2  SET TOP BOX


Feature
◆ OSD Multi-language
Yes
◆ RF Signal Strength and signal quality display
Yes
◆ TV and Radio List Handling
Yes
◆ Transponder management
Yes
◆ EPG up to 7 days
Yes
◆ Program management
Yes
◆ 4:3/16:9/Auto
Yes
◆ Channel Search with Automatic/Manual
Yes
◆ Automatic PAL/NTSC conversion
Yes
◆ USB multimedia files play
Yes
◆ Restore factory Settings and power lost memory
Yes
◆ Upgrade via USB and online
Yes
Specifications
General
Model Name
DVB-T2
Support CAS
YES
Transponder
DVB-T/T2
Power Voltage
DC 12V / 1A
Power Consumption
< 10W
Standby
Power Consumption
< 1W
System
Main Chip
SPHE1505A
FLASH Memory
32 Mbit
Demodulator Chip
AVL6762
CPU
300MHz (dual-core)
DDR2 Memory
512Mbit
Tuner Chip
R836
Decoder
Video Decoder
MPEG-2 MP@HL / MP @ML;
MPEG-4; AVC; H.264 HP @L4.1 &MP @L4.1 & MP @L3.0; VC-1; WMV- 9 AP @L3 & AP@L1
Video Resolution
480p; 576p; 720p; 1080i; 1080p
Video Output Formats
PAL/NTSC/Auto
Audio Decoder
MPEG-1 L1/2/3; MPEG-2 L2audio;
DD (AC-3); DD Plus(E-AC-3); MPEG-2 AAC-LC; MPEG-4; HE-AAC audio
Audio Output Model
Mono/ Stereo/ Mix stereo
Video Output Ratio
4:3/16:9/Auto
Tuner&Channel
Input Frequency Range
104 ~ 862 MHz
Noise Figure
20dB (64QAM)
Input Level Range
25～110dBv（64QAM)
Modulation
QPSK, 16QAM, 64QAM for DVB-T
QPSK, 16QAM, 64QAM, 256QAM for DVB-T2
Terminal
RF Input
1 × IEC169-1 Female
Audio Output
2 × RCA
USB
1 × USB2.0
HDMI/HDCP
HDMI 1.3
Loop out
1 × IEC169-1 Male
CVBS Output
1 × RCA
IR
1 × AUX
Smart CA Card
Smart CA Card
Front panel
LED Indicator
Power、Lock
Front Panel Keyboard
C+/-, V+/-, OK, MENU, STAY
Infra-red Receiver
Yes
Panel Display
4 digits LED display
Accessory
Remote Control
1
AV cable
1, 1.2m
Warranty Card
1
Instruction Book
1
Dimensions
Size
195mm*38mm*140mm
