Popular DVB-C H.265 HD SET TOP BOX

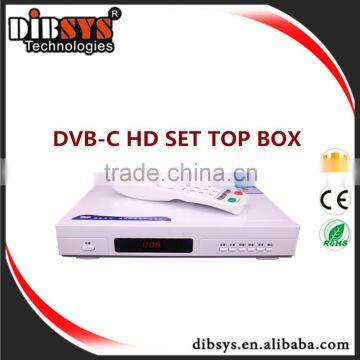

DVB-C HD SET TOP BOX

Feature

1. High performance 32-bit CK610M CPU integrates 16Kbytes instruction cache and 16Kbytes data cache. The frequency is up to 600MHz

2. The multi-standard video decoder supports JPEG/

MJPEG, MPEG2, AVS, AVS plus, MPEG-4, H.264, H265

HD or SD advanced video decoding. Error protection and concealment supported

3. The audio decoder supports MPEGI/II, MP3, DD, DD plus, MPEG4 AAC, HE-AAC and DRA decoding.

The output supports L/R and S/PDIF

4. All of the PAL and NTSC analog TV standards supported

Integrates QAM DVB-C Demodulator and FEC

1. Integrates high performance ADC with 10bits, up to 125MHz

2. High performance 32-bit CK610M CPU integrates 16Kbytes instruction cache and 16Kbytes data cache. The frequency is up to 600MHz. JTAG debug supported

3. 64 PID filtering supported, each of which can mostly use 64 individual data filter channels maximally, and the max filter depth of each channel is 16Byte

4. The multi-standard video decoder supports JPEG/MJPEG, MPEG2, AVS, AVS plus, MPEG4, H.264, H265 HD or SD advanced video decoding. Error protection and concealment supported

5. The audio decoder supports MPEGI/II, MP3, Dolby Digital, Dolby Digital plus, MPEG4 AAC, HE-AAC and DRA decoding. The output supports L/R and S/PDIF

6. 5 graphics plane: background color, still image, video, SOSD plane, and OSD plane

7. True-color OSD and 2D graphics accelerator, anti-flicker filter supported

8. Flexible capture engine, various multi-picture browser and screen-capture functions supported

9. High performance video deinterlacer and scaler, progressive output supported

10. All of the PAL and NTSC analog TV standards supported

11. 1 channel video DAC integrated, CVBS output modes are supported

12. HDMI version 1.4, HDCP revision 1.2 and DVI version 1.0 compliant transmitter embedded.

13. 2 channel audio DACs integrated, S/N is more than 80 dB

14. 2 USB2.0 Host integrated, High-speed and Full-speed devices supported, PVR is supported

15. A 10M/100M Ethernet MAC and PHY

16. NAND Flash supported with 32 bit ECC

17. DDR2/DDR3 SDRAM supported

18. 1 parallel TS input

19. Conditional access and data broadcast supported

20. Integrate OTP, support CAS without smart card

21. Package: LQFP128-EPAD

22. Typical application: HD set-top box
