The Newest MPEG-2 /MPEG-4 DVB-C HD Set Top Box

The Newest MPEG-2 /MPEG-4 DVB-C HD Set Top Box thumbnail-1
The Newest MPEG-2 /MPEG-4 DVB-C HD Set Top Box thumbnail-2

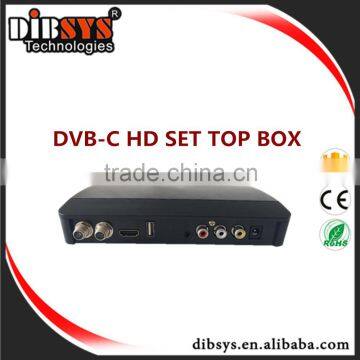

The Newest MPEG-2 /MPEG-4 DVB-C HD Set Top Box photo-1

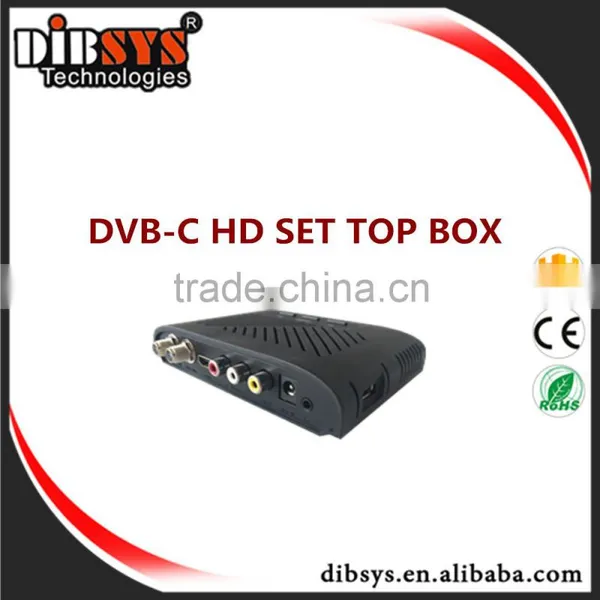

The Newest MPEG-2 /MPEG-4 DVB-C HD Set Top Box photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
STB220-SH/BH
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number STB220-SH/BH
Product Description

DVB-C HD SET TOP BOX

Specifications
Chip & Board
Main Chip
HI3716, 600Mhz
Flash Memory
128M
SDRAM
DDRIIII 128M*16bit*1pcs@1066MHz
Tuner Number
M88TC2800
Tuner Type
Silicon
Front Panel
LED
Power Indicator (LED): (Standby, Lock) / show channel number
and etc.
Key
5PCS (Standby/Ch-/CH+/VOL-/VOL+)
Rear Panel
USB
1
Tuner RF input connector
IEC Female x1
Tuner RF Loop through connector
IEC Male x1
CVBS
1
YPbPr
1
HDMI Output
1
Basic User Interface Features (common features)
OSD
Supported Language
English, Chinese
Subtitle
English, Chinese
TV System
Display Mode
1080P, 1080I, 720P, 480P, 480I
Aspect Mode
16:9/4:3LB/4:3PS
Video
Decoder
MPEG-1/2/4 Video Decoder
H.264 Decoder
Display Resolution
480i, 480p, 370i, 370p, 720i, 720p, 1080i, 1080p
Aspect ratio
16:9 wide screen, 4:3 letter box, 4:3 pan scan
Video output standard
Output Scope :1.0±0.05V Vp-p
Video Formats
PAL, NTSC, SECAM (Optional)
Supported Videos
avi, mpg, dat, vob, div, mov, mkv, rmvb, wmv, flv, ts
Audio
Supported Audio
Wma, mp3, wav, aac, ogg
Supported Picture
JPG, PNG, BMP, motion JPG
Input& Output
Input impedance
75Ω
Signals level
33-105 dBmv
Input Frequency
50MHz-858MHz
Decoding
16, 32 , 64 , 128 , 256 QAM
Support scope
0.45-7.0Mb/s
Power Supply
Power input voltage
DC5V, 2.0A
Power Consumption
10W max
Operation Temperature
0°C~45°C
Standby Consumption
<1W
