Specifications
dvb over ip/ip over dvb video converter for ip tv market1.1 IP in/out(<70M),1xASI in,2x ASI out(<120M)
2.TS to IP or IP to TS

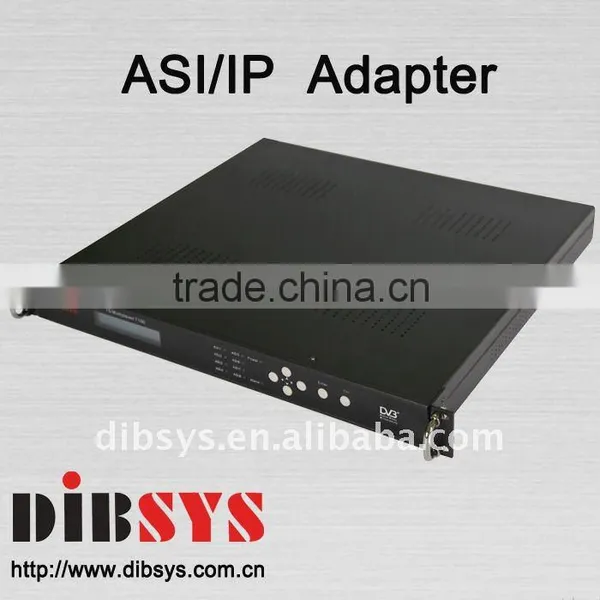

DVB over IP/IP over ASI Two-way Gateway
Model: DIB7700
DIB7700 can realize the conversion between IP data and MPEG-2/DVB standard data. It is a bridge to connect IP network and DVB network. It encapsulates ASI input streams into IP data, then transmits the data to specified IP address; or receives IP data and outputs TS stream, and then sent to the local ASI output connector. It is a low-cost IP DTTV headend equipment.
Applications:
DVB-C, DVB-S, DTMB
End to end long distance transmission
IPTV and video distribution
Key features:
Encapsulating TS stream into IP packet, or abstracting TS stream from IP packet, supporting UDP/RTP protocol
Support 1 x 10M/100M output over Ethernet UDP protocol, and unicast/multicast. 7 x TS packet form 1 x UDP load, maximum rate at 70 Mbps.
Low network jitter, low latency, high PCR precision
TS to IP or IP to TS two models can be manually configured, while only one model can be active at a time.
Short or long distance Ethernet real time monitoring and automatic alarm. Support online upgrade and parameter back-up.
Technical Specifications
MPEG-TS input:
1 x ASI input, BNC(75Ω)
Comply to ASI interface standard of EN50083-9 or SMPTE259M
The transport rate of each channel <120Mbps
Reflected impedance<15dB@270MHz
800mV±10% maximum input level 800mV±10%
MPEG-TS output:
2 x identical ASI output, BNC(75Ω)
Comply to the ASI interface standard of EN50083-9 or SMPTE259M
The transmission rate of each channel <120Mbps
Reflected impedance<15dB@270MHz
Maximum input level 800mV±10%
Network interface:
MPEG-2 TS over IP
1 x 10M/100M data interface, transmission rate <70Mbps
To set the equipment parameters through 1 x 10M/100M webmaster interface
support UDP protocol, up to 7 x 188 byte TS
support unicast or multicast
Environment:
Comply to GB13837-92 & GB8898-88 standard
Power Supply: AC 90-250V 50/60Hz
Power consumption: 15 W
Operating temperature:-10 - 50°C
Storage temperature: -10 - 75°C
Dimensions: 400mm (L)X 483mm(W)X 44mm(H)(1RU)
Weight: 5kg
