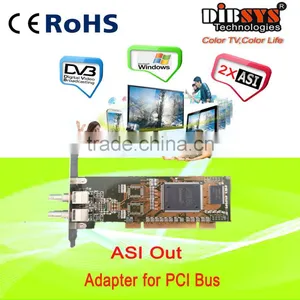

Dual DVB-ASI Out Adapter for PCI Bus
Overview
TS Sender is a PCI V2.2 adapter card compliant to MPEG_2/DVB Standards between devices at a maximum rate of 213 Mbps. It provides the whole API functions and it's a perfect platform of hardware development of DTV devices. It can Two indenpent ASI transport stream data outputs.
Furthermore, it provide functional modules that should be extra paid, such as: transport streams may be combined or multiplexed to create multiprogram transport streams with separate PIDs, or program identifiers, that distinguish them as “channels” do in analog television.
It can be used for broadcasting, cable,TV, satellite links, video servers, and distance learning.
Key Features
- Two indenpent DVB-ASI channels outputs on a low- profile PCI card
- Programmable bitrate 0 -213Mbit/s
- Hardware-assisted null packet insertion
- Selectable Continuous mode or burst mode
- Scatter/gather DMA for efficient handling of fragmented host memory
- Dual 16Mbytss high buffers to compensate for PCI and PC software latency
- PCI rev 2.2,32 bit,33 or 66 MHz bus
- Low BER in long distance, because it include input equalizer
- Free drivers and SDK for current versions of Windows,DirectShow and Linux
- Drivers for Windows7 32/64 bit,Server2003/ 2008,Windows2000,Windows XP and Linux
- Windows XP/Server 2003/ 2008/Linux API
- Hardware PID filtering
- Stream Software can support several TS cards application simultaneously
- support Single or multiple TS looping
- support setting loop playback at any point/period in time
Technical specifications
ASI out | |
|
Transmit Bitrate:≤213Mbps |
Transmit bitrate stability: ±2.5ppm | |
Packet size: 188,204bytes | |
LVDS Amplitude:220- 800mV ±10% | |
Transmit bitrate resolution: < 8bit/s | |
PCR Maximum jitter: ≤ 74ns | |
Maximum rising/falling time:< 1.2 ns | |
Connector: BNC,75Ω | |
PCI Express | |
|
PCI 32 bit / 33 MHz / 5V; PCI 32 bit / 33 MHz / 3.3V |
PCI 32 bit / 66 MHz / 3.3V; PCI 64 bit / PCI-X | |
Stream Play platform | |
|
Function extensibility: The platform is easy to design new function modules to satisfy the needs of customs. |
Support various hardware devices,including PCI devices and USB devices. | |
Support to manage multi input and output channels synchronously. | |
Support to configure the parameters of channels. | |
The basic version of the TS platform includes itself,TS broadcaster,TS generator,TS recorder and Auto broadcaster application | |
Option Pay Module | |
|
OPT-MUX In local disk .multiple-TS multiplexing |
OPT-ANA PSI/SI Analyzer | |
Environment | |
|
Dimensions:13.7x6.5cm |
Operating temperature: -10~50°C | |
Storage temperature: -10~75°C | |
Power Supply: 5V/3.3V | |
Weight:100g | |
Similar Product | |
|
ADE2000-S2R0: Two indenpent ASI out adapter PCIE |
Our advantages
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support
