Help CenterSingle Channel SD MPEG-2 Sdi to ip Encoder
Related Products
-
Digital Cable Receiver Dvb-c,ip Satellite Receiver,IP to Cvbs(av),ip to Sdi Converter With CI SlotUS$ 500 - 1,000MOQ: 1 Set -
1*ASI ip to rf Modulator for Cable Digital TVUS$ 1,000 - 5,000MOQ: 1 Set
-
4 To1 Cable Digital Modulation With Multiplexer,dvb-c SolutionUS$ 1 - 1,000MOQ: 1 Set
-
Digital Catv H.264 HD QAM Dvb-c Modulator and EncoderUS$ 500 - 4,000MOQ: 1 Set
-
Magnun sd Digtial Encoding Dvb ip tv Encoder Mpeg2 & H.264 With 8xComposite InputsNegotiableMOQ: 1 Set

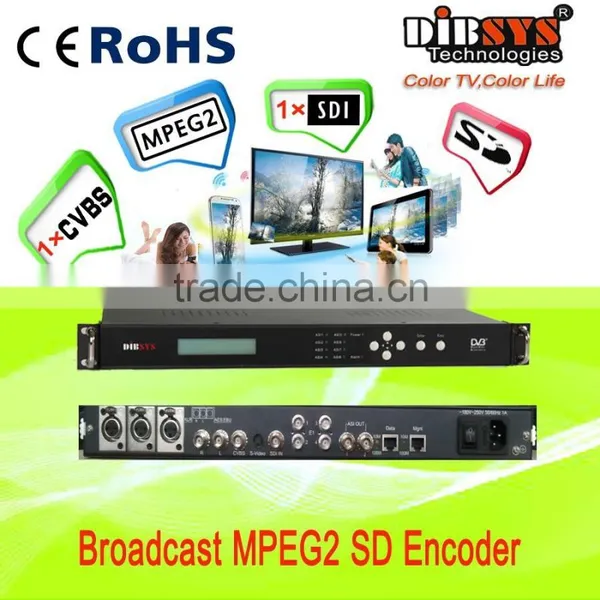

Single MPEG-2 Encoder with SDI,Composite,YPbPr in,ASI/IP out
Overview
ENC3010 is a broadcast-quality encoder fully complying with MPEG2 MP@ML (4: 2: 0) DVB encoding, with high reliability and advanced compress arithmetic.
The ENC3010 is suitable for applications requiring cost effective,high bit rate,standard definition video distribution over IP networks contribution, fully support rich set of SDI,Composite,YPbPr,S-Video interfaces video and Embed SDI,AES/EBU,analog R/L XLR,RCA audio inputs.and stream real-time digital video over your LAN. The platform’s native IP interface seamlessly integrates into scalable,low-cost IP networks
It is a cost-effective MPEG-2 SD encoder for satellite, cable and terrestrial,Point to Point ASI and IP video deliver with MPEG-2 TS Processor(IRD1200) application
Key Features
- MPEG-2 MP@ML (4: 2: 0) video compression
- MPEG-2 TS over ASI and IP output
- Composite,SDI,YPbPr,S- video inputs
- Embed SDI,AES/EBU XLR,analog R/L XLR, RCA Audio inputs
- High video quality at low possible bitrates
- VBR/CBR Mode
- Audio sample rate: 32KHz, 44.1KHz, 48KHz
- Audio Bitrate:64,128,256,384kbps
- Video Bitrate:1-15Mbps, generally, good image quality for SD is about 5mbps bitrate
- MPEG-1 Layer II audio and Audio Gain
- Resolution: D1,1/2D1,2/3D1,3/4D1
- Lightness/Contrast/Saturation/ Hue Adjustment
- SNMP management
- Variable PCR re-correcting
- PID modifying, and PSI/SI generating
- High reliability design, stable in running
Input | |
Video Input |
1x Analog Composite video signal: 1.0Vp-p leve,BNC |
1x S-Video Analog Component Video Interface | |
1x SDI digital video, BNC | |
1x YPbPr component video interface, BNC | |
Audio Input |
2 analog R/L audio, BNC,XLR (unbalanced) |
SDI embeded audio | |
AES /EBU audio, XLR interface (balanced) | |
ASI Output | |
|
EN 50083-9 ASI interface standard |
Signal Level:200-800mVp-p | |
Packet Length:188 bytes | |
2 identical ASI, BNC, 75Ω | |
MPEG-TS/IP Output | |
|
100M base-T,Full Duplex,Multicast/Unicast |
Bit rate: ≤80Mbps | |
7x188 bytes per udp packet | |
Video Encoding | |
|
Encoding Format: MPEG-2 MP@ML 4:2:0 |
Operation mode: CBR/VBR | |
Lightness/ Contrast/ Saturation/ Hue | |
Video Resolution:NTSC-720x480 PAL-720x576 | |
Audio Encoding | |
|
Encoding Format: MPEG I Layer I/II, CD quality |
Encoding Rate: 64,128,256,384kbps | |
Sampling Rates: 32KHz, 44.1KHz, 48KHz | |
Stereo,Joint Stereo,Dual channel,Single channel | |
Resolution | |
|
Accordance to CCIR601 standard, support D1,1/2D1, 2/3D1,3/4D1,CIF |
PAL:720x576,704x576,528x576,480x576,352x576,352x288@50Hz | |
NTSC:720x480,704x480,528x480,480x480,352x480,352x240@60Hz | |
Connector | |
|
10/100 Base T Ethernet, RJ45,SNMP |
7 keys:UP,DOWN,LEFT,RIGHT,ENTER,ESC,LOCK | |
LCD in Front Panel,LED indicate light | |
Environment | |
|
Power Supply: AC 90-250V 50/60Hz |
Power consumption: 20 W | |
Operating temperature:-10 - 50°C | |
Storage temperature: -10 - 75°C | |
Dimensions: 400mm ( L)X 483mm(W)X 44mm(H)(1RU) | |
Weight: 4kg | |
Our advantages
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support
Order informations
ENC3010 |
SDI,CVBS,S-Video,AES/EBU IN; 2xASI,IP, (4xE1) OUT |
ENC3000 |
Single mpeg-2 encoder with CVBS, YPbPr,Svideo in,ASI out |
ENC3040 |
Four channels MPEG-2 Encoder with CVBS in,ASI out |
ENC3044 |
Four channels Low bitrate mpeg-2 encoder with CVBS in,ASI/IP out |
IRD1200 |
MPEG-2 Processor and Decoder with IP/ASI to CVBS/SDI |
