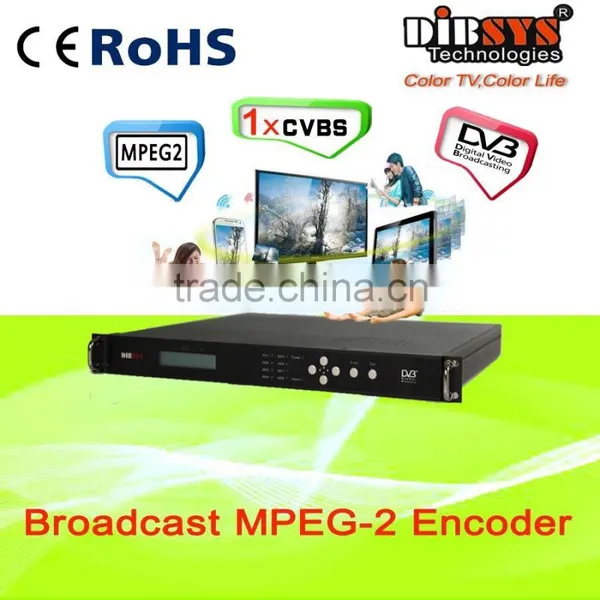

Single Channel MPEG2 SD Video Encoder With Composite,YPbPr,S-Video In,ASI/IP Out

Name: Single Channel MPEG2 SD Video Encoder With Composite,YPbPr,S-Video In,ASI/IP Out
Brand: DIBSYS
SKU: 110658161
Availability: InStock

Single Channel MPEG2 SD Video Encoder With Composite,YPbPr,S-Video In,ASI/IP Out thumbnail-1

Single Channel MPEG2 SD Video Encoder With Composite,YPbPr,S-Video In,ASI/IP Out photo-1

US$ 100 - 500 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

DIBSYS

Model Number:

ENC3000

Contact Supplier Request Quote Chat Now

Hangzhou DIBSYS Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name DIBSYS

Model Number ENC3000

Single MPEG-2 Encoder with Composite,YPbPr,S-Video in,ASI/IP out

Overview

ENC3000 is a broadcast-quality encoder fully complying with MPEG2 MP@ML (4: 2: 0) DVB encoding, with high reliability and advanced compress arithmetic.

The ENC3000is suitable for applications requiring cost effective,low cost,high bit rate,standard definition video distribution over ASI/SPI output, fully support rich set of Composite,YPbPr,S-Video interfaces video and analog R/L RCA audio inputs TO full screen,resolution digital video in real time. It is able to simultaneously compress analog/digital video and audio signal.It is a cost-effective MPEG-2 SD encoder for satellite, cable,terrestrial,hotel and enterprise applications.

Key Features

MPEG-2 MP@ML (4: 2: 0) video compression
MPEG-2 TS over ASI output
Composite and R/L analog,YPbPr,S-video in
High video quality at low possible bitrates
VBR/CBR Mode
Audio sample rate: 32KHz, 44.1KHz, 48KHz
Audio Bitrate:64,128,256,384kbps
Video Bitrate:1-15Mbps, generally good image quality for SD is about 5mbps bitrate
MPEG-1 Layer II audio and Audio Gain
Resolution: D1,1/2D1,2/3D1,3/4D1
Lightness/Contrast/Saturation/ Hue Adjustment
WEB management
Add and modify for LCN,Program name,Supplier provider,SDT table
Variable PCR re-correcting
High reliability design, stable in running

Technical specifications

Input
Video Input	1x Analog Composite video signal: 1.0Vp-p leve,BNC
	1x S-Video Analog Component Video Interface
	1x YPbPr component video interface, BNC
Audio Input	2 analog stereo audio, BNC
ASI Output
	EN 50083-9 ASI interface standard
	Signal Level:200-800mVp-p
	Packet Length:188 bytes
	2 identical ASI, BNC, 75Ω
Video Encoding
	Encoding Format: MPEG-2 MP@ML 4:2:0
	Operation mode: CBR/VBR
	Lightness/ Contrast/ Saturation/ Hue
	Video Resolution:NTSC-720x480 PAL-720x576
	Gop size:IPPPP,IBPBP,IBBPB,IBBBP
	Video screen ratio:4:3
Audio Encoding
	Encoding Format: MPEG I Layer I/II, CD quality
	Encoding Rate: 64,128,256,384kbps
	Sampling Rates: 32KHz, 44.1KHz, 48KHz
Resolution
	Accordance to CCIR601 standard, support D1,1/2D1, 2/3D1,3/4D1,CIF
	PAL: 720x576,704x576,528x576,480x576,352x576,352x288@50Hz
	NTSC:720x480,704x480,528x480,480x480,352x480,352x240@60Hz
Connector
	10/100 Base-T Ethernet, RJ45,WEB Manage
	7 keys:UP,DOWN,LEFT,RIGHT,ENTER,ESC,LOC
	LCD in Front Panel,LED indicate light
Environment
	Power Supply: AC 90-250V 50/60Hz
	Power consumption: 20 W
	Operating temperature:-10 - 75°C
	Storage temperature: -10 - 75°C
	Dimensions: 400mm ( L)X 483mm(W)X 44mm(H)(1RU)
	Weight: 4kg

Our advantages

1) High quality and low price

2) 3-year warranty

3) Perfect after-sale service and technical support

Order informations

ENC3010	SDI,CVBS,S-Video,AES/EBU IN; 2xASI,IP, (4xE1) OUT
ENC3000	Single mpeg-2 encoder with CVBS, YPbPr,Svideo in,ASI out
ENC3040	Four channels MPEG-2 Encoder with CVBS in,ASI out
ENC3044	Four channels Low bitrate mpeg-2 encoder with CVBS in,ASI/IP out
IRD1200	MPEG-2 Processor and Decoder with IP/ASI to CVBS/SDI
