DIBSYS 8 in 2 Digital ts Multiplexer

Name: DIBSYS 8 in 2 Digital ts Multiplexer
Brand: DIBSYS
SKU: 110657359
Availability: InStock

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

DIBSYS

Model Number:

MUX7020

Hangzhou DIBSYS Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name DIBSYS

Model Number MUX7020

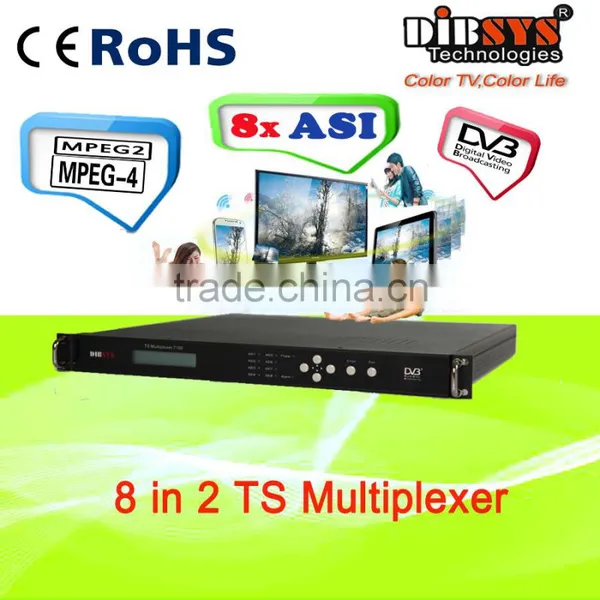

8 in 2 TS Multiplexer with ASI/IP out

Overview

MUX7020 is a compact and cost_effective single channel DVB multiplexer with high quality and intellectual property rights.

On the basis of PID packet exchange technology, it inputs 1~8 channels SPTS/MPTS and inserts EPG, CA and data broadcasting

after analyzing the SPTS/MPTS, then configurates and gets two channels of multi_channels MPTS according. Furthermore,

it can generate the PSI/SI information and supports filtering, adding and re-multiplexing.

This multiplexer removes the Null packets automatically and has excessive multiplexing technology to ensure to output lower bite rate.

Key Features

Completely comply to ISO13818, EN300 468 and GY/T 226_2007, and with some statistic multiplexing technology
PCR correction, the average PCR jitter is 20~60ns
Low time delay, MPEG 2 program time delay less than 100us
Automatic PID conflict resolution, PID filtering and reset, the users can add or delete the programs, PID of the chosen programs

is automatic inflection, supports to reach to input channel directly, and multiplex the input SPTS to either channel

Insert the network parameter and generate PSI/SI information and change the name of the programs
Input/output rate statistic, and input MPTS rate auto-analysis
Friendly configuration via SNMP management, modify and edit information online
High reliable design and stable in running
Simultaneous outputs via IP, DVB-ASI
Two MPTS To GbE IP output Seperately, ASI mirror of ASI out(Option)

Technical specifications

Input
	Up to 8 ASI inputs, Accordance to EN 50083-9, BNC, 75ohm
	Max bit rate: 216 Mbps
	MPEG Format:188/204 bytes
Output
	2 set of independent ASI outputs by multiplexing respectively, Total 4 ASI Outputs
	Accordance to EN 50083-9, BNC, 75ohm
	Bit rate: 2~120Mbps
	188/204bytes
	1000M Base T Ethernet interface UDP-IP output (optional)
Multiplexing
	PID re-stamping, filtering, defining and adding (automatically or manual)
	PCR re-correction
	PSI/SI table generation and PID reset
Control Interface
	Front Panel control for local operation. LCD display and cursor/enter esc keys, led display
	WEB Interface: Ethernet 10/100Base-T, SNMP Management
Environment
	Power Supply: AC 90-250V 50/60Hz
	Power consumption: 25 W
	Operating temperature:-10 - 50°C
	Storage temperature: -10 - 75°C
	Dimensions:483(L) X 455(W) X 44(H) (1RU)
	Weight: 5kg
OPTION
	OPT-IP 2 MPTS separate over GbE IP out
