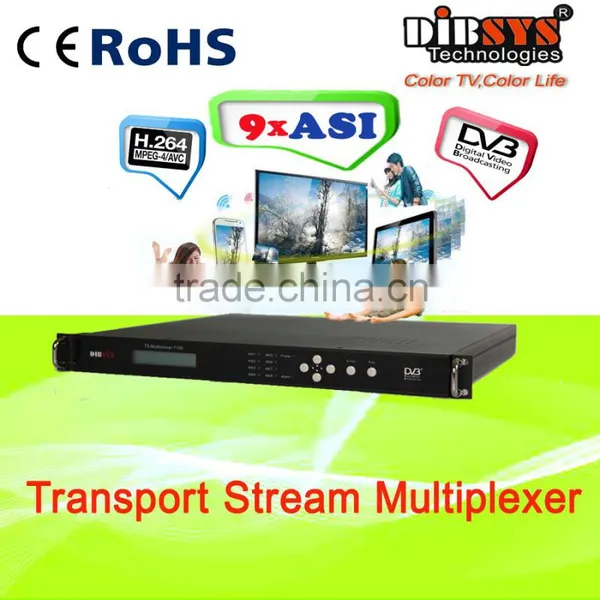

Transport Stream Multiplexer
Overview
MUX7000 is a compact and costeffective single channel DVB multiplexer with high quality and
intellectual property rights. On the basis of PID packet exchange technology, it inputs 1~8 channels SPTS/MPTS and inserts EPG,CA and data broadcasting after analyzing the SPTS/MPTS, then configurates and
gets one channel of multichannels MPTS according. Furthermore, it can generate the PSI/SI information and supports filtering, adding and re-multiplexing.
This multiplexer removes the Null packets automatically and has excessive multiplexing technology to
ensure to output lower bite rate.
Key Features
- Completely comply to ISO13818, EN300 468 and GY/T 226-2007, and with some statistic multiplexing technology
- PCR correction, the average PCR jitter is 20~60ns
- Low time delay, MPEG 2 program time delay less than 100us
- Fault warning ,auto-remind
- Automatic PID conflict resolution, PID filtering and reset, the users can add or delete the programs, PID of the chosen programs is automatic inflection, supports to reach to input channel directly
- Insert the network parameter and generate PSI/SI information and change the name of the programs.
- Input/output rate statistic, and input MPTS rate auto-analysis
- Friendly configuration via SNMP management, modify and edit information online
- High reliable design and stable in running
Input | |
|
Up to 8 ASI inputs, Accordance to EN 50083-9, BNC, 75ohm |
Max bit rate: 216 Mbps | |
MPEG Format:188/204 bytes | |
Output | |
|
2 identical ASI outputs, Accordance to EN 50083-9,BNC, 75ohm |
Bit rate: 2~120Mbps | |
188/204bytes | |
Multiplexing | |
|
PID re-stamping, filtering, defining and adding (automatically or manual) |
PCR re-correction | |
PSI/SI table generation and PID reset | |
Control Interface | |
|
Front Panel control for local operation. LCD display and cursor/enter esc keys, led display |
WEB Interface: Ethernet 10/100Base-T, SNMP Management | |
Environment | |
|
Comply to GB13837-92 & GB8898-88 standard |
Power Supply: AC 110V±10%, AC 220V±10%, 50/60Hz | |
Power consumption: 20 W | |
Operating temperature:-10 - 50°C | |
Storage temperature: -10 - 75°C | |
Dimensions:483(L) X 455(W) X 44(H) (1RU) | |
Weight: 5kg | |
Our advantages
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support
