Wireless Digital tv Broadcasting Equipment Professional ATSC-T Modulator

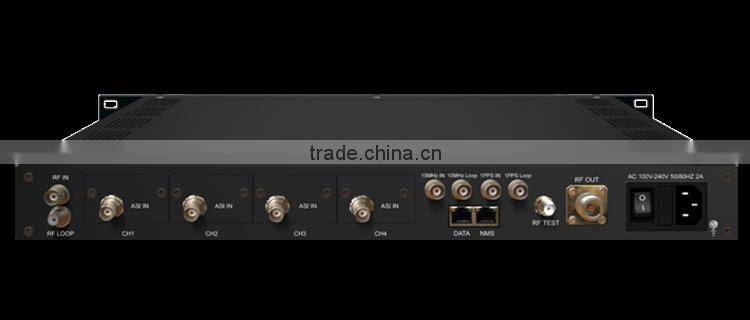

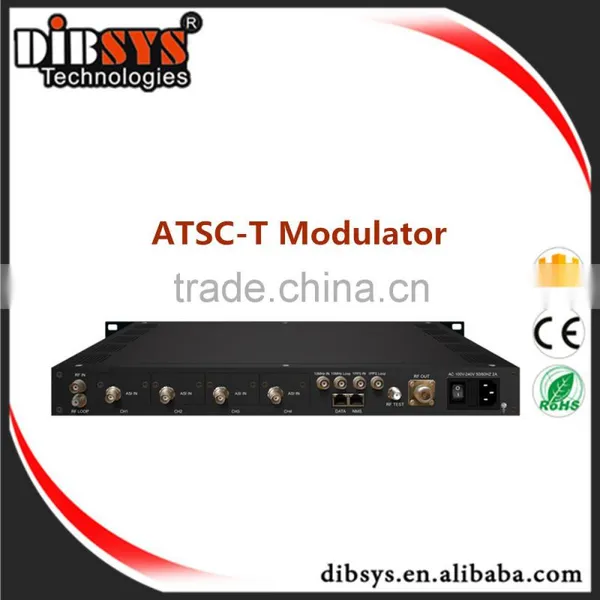

Wireless Digital tv Broadcasting Equipment Professional ATSC-T Modulator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
MOD6600
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number MOD6600
Product Description


ATSC-T Modulator

MOD6600 ATSC-T modulator is DIBSYS’s newly designed product supporting ASI and SMPTE-310 input. After modulating the inputting signals through ATSC 8-VSB, it can output RF signals with the range between 40 ~ 960MHz. In other words, MOD6600 ATSC-T modulator supports the coding and modulating mode under ATSC-T A/53 standard.


It also supports adaptive non-linear and linear digital pre-distortion (DPD). Additionally, the system of this device can be on line controlled and upgraded through network, which can be widely used in ATSC-T digital broadcasting network setup and the testing for ATSC-T set top box design.

Feature

1. Full complying with ATSC A/53 standard

2. Support ATSC 8VSB modulation

3. Support 2ASI, 2 SMPTE 310M, 1 external 10Mhz reference clock and 1 RF input

4. RF output frequency range: 40MHz~960MHz, 1Hz stepping

5. Support RS coding, interleaving and Trellis coding

6. Transmission bandwidth: 6MHz

7. Supports adaptive linear digital pre-distortion (DPD)

8. Supports adaptive non-linear digital pre-distortion (DPD)

9. Adopts constant-temperature crystal oscillator, the frequency stability can be up to 0.1 PPM

10. Excellent RF output performance: EVM, MER, SNR, shoulder level and etc.

11. LCD/Keyboard and net management, support SNMP/NMS

Specifications
Input
2xASI input, hot backup
2xSMPTE 310M input, hot backup
1 channel 10MHz reference clock input
1 RF input for adaptive digital pre-distortion (DPD)
RF output
Port: N Type, 50Ω impedance
RF range: 40 ~ 960Mhz, 1hz stepping
Output Level: -26dbm ~ +3dbm, 0.1db stepping
MER: ≥ 42db
Modulation
Standard: ATSC A/53
Constellation: 8VSB
FEC: RS (208 188) + Trellis
Non-linear DPD
over 10db ACPR improvement (normally)
linear DPD
over 10db non-flatness adjustment(normally)
Control
LCD/keyboard, NMS/SNMP management
Chinese & English operation display
Software upgraded through network
Environment
Power Supply: AC 110V±10%, 50/60Hz; AC 220V±10%, 50/60Hz
Consumption: 25W
Temperature: 0 ~ 45℃( operation), -20 ~ 80℃ ( storage)
Dimensions: 482mm × 455mm × 44.5mm
Weight: 6.0kg
