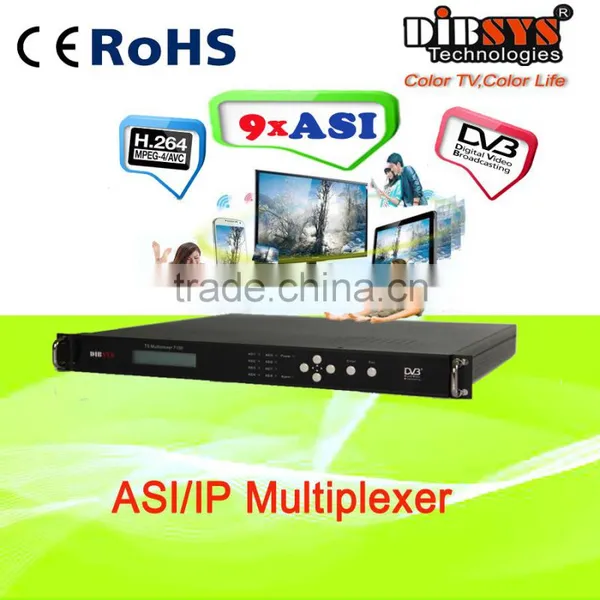

9 in 1 ASI/IP Multiplexer
Overview
MUX7000p is a compact and cost-effective single channel DVB enhanced multiplexer with high quality and intellectual property rights. On the basis of PID packet exchange technology, it inputs 1~9 channels SPTS/MPTS and inserts EPG, CA and data broadcasting after analyzing the SPTS/MPTS, then configurates and gets one channel of multi-channels MPTS according. Furthermore, it can generate the PSI/SI information and supports filtering, adding and re-multiplexing. This multiplexer removes the Null packets automatically and has excessive multiplexing technology to ensure to output lower bite rate.
Key Features
- Completely comply to ISO13818, EN300 468 and GY/T 226-2007, and with some statistic multiplexing technology
- Adopt the module design,4 ASI inputs per module,Up to 2 modules in one chassis
- PCR correction, the average PCR jitter is 20~60ns
- Low time delay, MPEG-TS program time delay less than 100us
- Automatic PID conflict resolution, PID filtering and reset, PID pass through,the users can add or delete the programs, PID of the chosen programs is automatic inflection, supports to reach to input channel directly
- Insert the network parameter and generate PSI/SI information and change the name of the programs.
- Input/output rate statistic, and input MPTS rate auto-analysis
- Filter Null packet Support
- Friendly configuration via SNMP management, modify and edit information online
- High reliable design and stable in running
- Simultaneously output 8 SPTS and 1 MPTS via udp/rtp IP as mirror of ASI output
- Cascading via DVB-ASI input with passive loop-through support
Input | |
|
Up to 9 ASI inputs, Accordance to EN 50083-9, BNC, 75ohm |
Max bit rate: 160 Mbps | |
MPEG Format:188/204 bytes | |
ASI Output | |
|
2 identical ASI outputs, Accordance to EN 50083-9,BNC, 75ohm |
Bit rate: 2~108Mbps | |
IP Output | |
|
UDP/RTP over IP out |
GbE IP Port,multicast and unicast | |
Multiplexing | |
|
PID re-stamping, filtering, defining and adding (automatically or manual) |
PCR re-correction | |
PSI/SI table generation and PID reset | |
Control Interface | |
|
Front Panel control for local operation. LCD display and cursor/enter esc keys, led display |
Ethernet 10/100Base-T, SNMP Management | |
Environment | |
|
Comply to GB13837-92 & GB8898-88 standard |
Power Supply: AC 110V±10%, AC 220V±10%, 50/60Hz | |
Power consumption: 20 W | |
Operating temperature:-10 - 50°C | |
Storage temperature: -10 - 75°C | |
Dimensions:483(L) X 360(W) X 44(H) (1RU) | |
Weight: 5kg | |
Our advantages
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support
