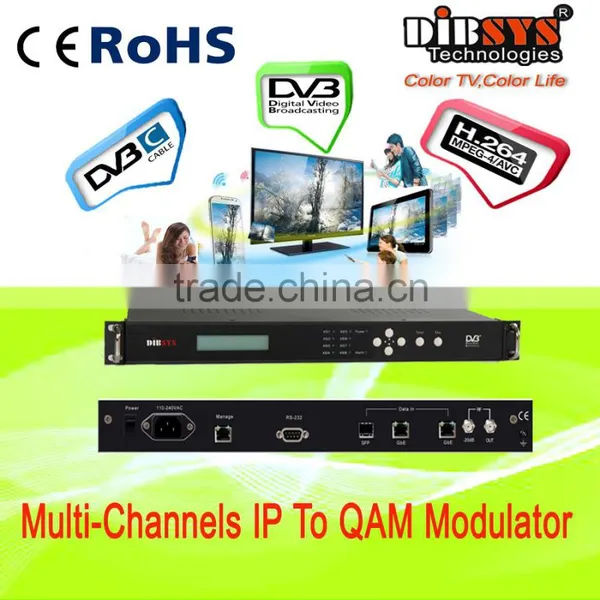

 Multi-Channels Broadcast Edge QAM Modulator

GbE IP scrambler Multiplexer QAM Modulator

Overview

IPQ6850  is designed as a highly integrated and stability and cost-effective digital EdgeQAM Modulator with 250 independent IP stream inputs.it is capable of growing in QAM density from 8 to 48 QAMs per unit.The IPQ6850 accepts digital MPEG input through its gigabit Ethernet (GbE) ports, then directs the multimedia to different QAMs to create the outgoing transport streams as QAM-RF output signals with multiplexing, scrambling the stream process,Routes Any or All Selected Transport Streams.





Key Features

  • Up to 3 RF modulator module per chassis,each module with two eight adjacent QAM channels
  • Options to have one SFP or two GbE RJ45 port as high speed IP data input, support IGMP 2.0
  • ITU-T,J.83A/B/C qam encoding standard
  • 16QAM,32QAM,64QAM,128QAM,256QAM
  • RF frequency:30-900MHz
  • 1xGbE IP(≤800Mbps) inputs per module,Processing module with three GbE ports
  • Output signal bandwidth:4.83-8.05MHz, rolling coef:0.15(ITU-T J.83A) 5.714/5.967MHz,rolling coeff:0.13/0.18(ITU-T J.83B)
  • Output data symbol: 4.2~7Mbaud/s(8M BW) 4.2~5.260Mbaud/s(6M BW)
  • Output level:90 - 110dBuv ,0.5dB step
  • MPEG processing for multiplexing,scrambling
  • Up to 4 CAS simul-cryption and DVB CSA scrambling
  • Up to 250 input TS, 16 output TS and 1000 programs simultaneously in single module
  • PSI/SI auto-generation and manual uploading during re-multiplexing
  • PID filter,remapping,passthrough
  • PCR correction function, can respectively check multiple PCR come from the input data accurately.
  • Real-time detection and display for the input system bitrate and effective rate.
  • monitoring of operation temperature & power supplies, as well as intelligent control of fan speed, with considerate hardware design for ventilation
  • Support Standard and High Definition MPEG-2,H.264,AVS,MPEG-4 Codec Format
  • Management via WEB and local front panel
  • Easy-to-Use System Management
Technical specifications





Gigabit Ethernet Input



2 independent GbE IP, RJ45 Port

1 x 1000Base-T SFP port

Up to 800Mbps per port

MAC: IEEE 802.3 1000BASET

IP Encapsulation MPEG TS over UDP/IP, Multicast: IGMPv2 (RFC 2236),Unicast: UDP (RFC 768)

QAM RF Output



Connector F-Type, 75 Ω

1 RF ports and 1 RF Monitor per module,



RF Output Level:90-110 dbuV(0.5dB step)

RF Level Monitor:70-90dBuv(0.5dB step)

RF frequency range: 30 to 900 MH, 1kHz steps

QAM Constellations: 16,32, 64,128,256

Bandwidth: 6Mhz,8 Mhz

QAM Encoding:ITU-T J.83 Annex A(DVB),Annex B,Annex C(Japan)

RF Atteunator Adjustment Range: 0-20dB(8 QAM channels, step 0.5dB)

Symbol rate range:4.2~7Mbaud/s  (8M BW)

4.2~5.260Mbaud/s(6M BW)

RF Fine adjustments: -2.5-2.5 dB in 0.25dB steps

Output Return Loss: ≥12dB

Restrain Carrier: ≥58dB

MER: ≥38dB(QAM Constellation: 64QAM

 Symbol Rate: 6.857MBaud)

SNR: ≥50dB

Phase Noise:@1KHz≥90dBc/Hz

@10KHz≥100dBc/Hz

@100KHz≥105dBc/Hz)

SNR: ≥50dB

Accuracy of center frequency:±25KHz

Re-multiplexing



Input TS number:0~250

Output TS number:0~16

Input TS distinguish ability;Unicast, by UDP port number,Multicast, by destination IP address

Total services number(total):0~1024

Service number per TS:0~64

PID Filter,Remapping,Passthrough

PSI/SI: PAT/PMT: Generated automatically

SDT:Generated automatically or use uploaded files

NIT/BAT: Use uploaded files

TDT/TOT: Optional

Scrambling & CAS interfaces



Scrambling algorithm:DVB-CSA

Scrambling bit-rate per TS:0~60Mbps

Embedded scramblers number:16

Table updateCAT/PMT

Simul-Crypt CAS number:0~4

SCS interface:ETSI TS 103 197

ECMG interface:TCP

EMMG interface:TCP/UDP

EMM bandwidth:0~3Mbps/TS

Management



100M Base-T Ethernet,RJ45,WEB((IE 8.0or above)

6 keys: UP, DOWN, LEFT, RIGHT, ENTER,ESC

Front-Panel LCD configuration, LED indicate light

Environment



Comply to GB13837-92 & GB8898-88 standard

Power Supply:dual power redundancy,AC 90- 250V 50/60Hz

Power consumption: 30 W

Operating temperature:-10 - 50°C

Storage temperature: -10 - 75°C

Dimensions: 400mm ( L)X 483mm(W)X 44mm(H)(1RU)

Weight: 6.5kg



 Our advantages



1)        High quality and low price



2)        3-year warranty



3)        Perfect after-sale service and technical support



Order informations



Types

QAM Model

GbE IP in

RF Port

IPQ6851

1(8 QAM channel)

2x RJ45

1x SFP

1+1

IPQ6852

1(16 QAM channel)

IPQ6853

2(24QAM channel)

4x RJ45

2xSFP

2+2

IPQ6854

2(32QAM channel)

IPQ6855

3(40QAM channel)

6x RJ45

3xSFP

3+3

IPQ6856

3(48QAM channel)
