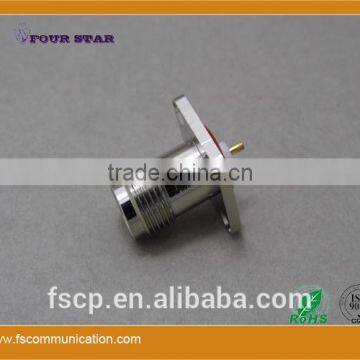

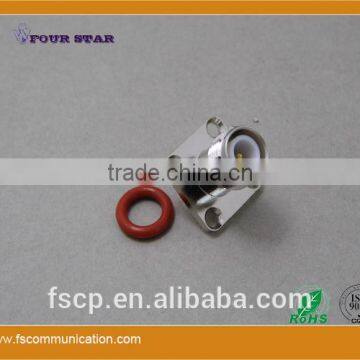

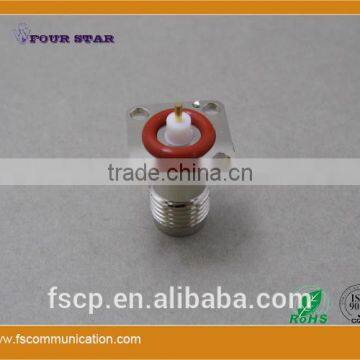

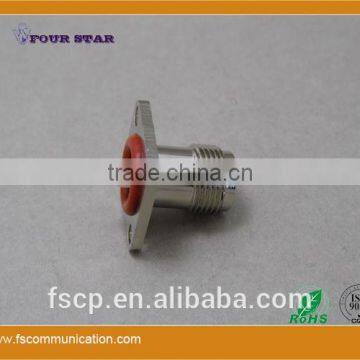

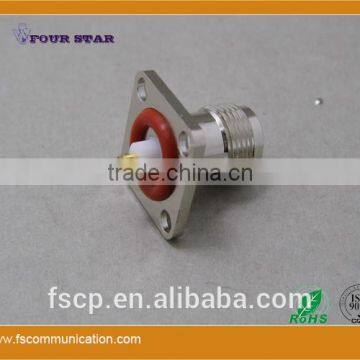

TNC Connector RP-Female 17.5mmSQ Panel With Extended 3mm Insulator
US$ 0.65 - 0.97
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
TNC-RKF-3-3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMB Connector Female Crimp Soldering for RG316 CableUS$ 0.43 - 0.79MOQ: 100 Pieces -
SMB Connector Female Crimp for RG316 Cable CUS$ 0.4 - 0.76MOQ: 100 Pieces
-
SMB Connector Female Crimp for RG316 Cable BUS$ 0.4 - 0.76MOQ: 100 Pieces
-
SMC Connector Male Straight for P.C.B MountUS$ 0.32 - 0.63MOQ: 100 Pieces
-
SMB Connector Female Crimp for RG316 Cable AUS$ 0.4 - 0.76MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
TNC-RKF-3-3
Type
TNC
Application
RF
Gender
Other, RP-Female
Product Description

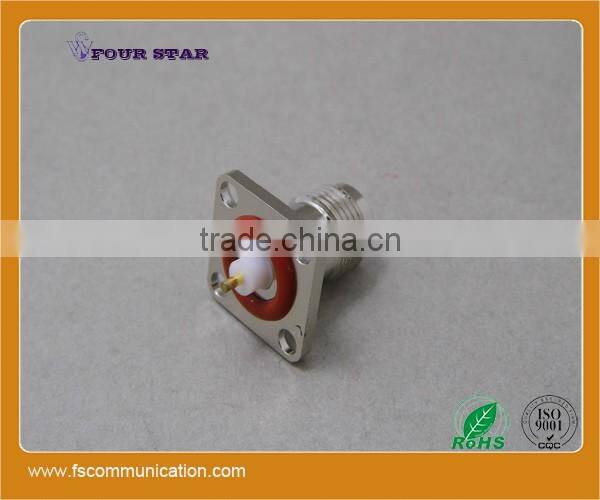

TNC Connector RP-Female 17.5mmSQ Panel with Extended 3mm Insulator
| TNC Connector RP-Female 17.5mmSQ Panel with Extended 3mm Insulator | ||
| Model No. | TNC-RKF-3-3 | |
| Interface | IEC 60169-17;CECC 22200 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-11GHz | |
| VSWR | ≤1.15@DC-3000MHz | |
| Insertion Losss | ≤0.2dB | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 500V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥1500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤0.25 mΩ |
| Mating | — | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | — | — |
| Cable Clamp | — | — |
| Ferrule | Annealed Copper | — |
| Environmental | ||
| Operating Temperature | -45 ℃~-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | — | |
