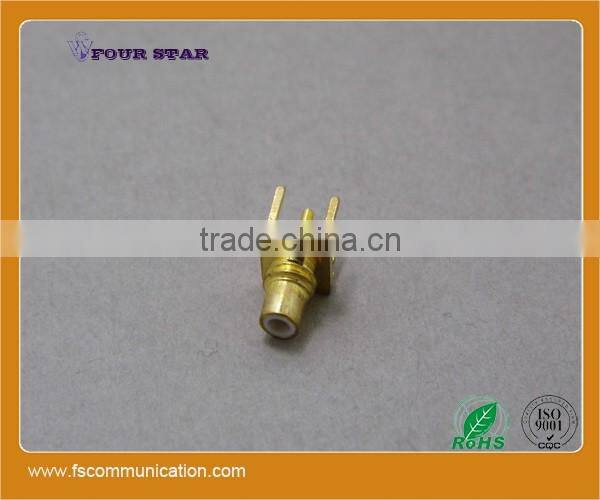

SMC Connector Male Straight for P.C.B Mount
US$ 0.32 - 0.63
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
SMC-JE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMB Connector Female Crimp for RG316 Cable AUS$ 0.4 - 0.76MOQ: 100 Pieces -
1.6/5.6 Plug Crimp Connector For BT3002 CableUS$ 0.48 - 0.79MOQ: 100 Pieces
-
1.6/5.6 Male Crimp Connector For BT3002 CableUS$ 0.48 - 0.79MOQ: 100 Pieces
-
1.6/5.6 Male Clamp Connector For BT3002 CableUS$ 0.63 - 0.95MOQ: 100 Pieces
-
1.6/5.6 Female Bulkhead Right Angle Clamp Connector For Flex-3 Cable BUS$ 0.79 - 1.19MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
SMC-JE
Type
Other, SMC
Application
RF
Gender
Male
Product Description

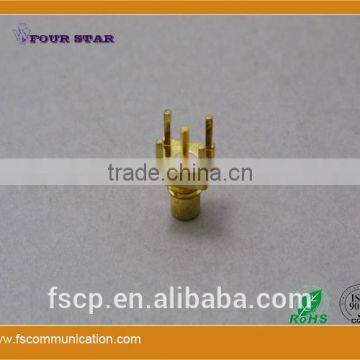

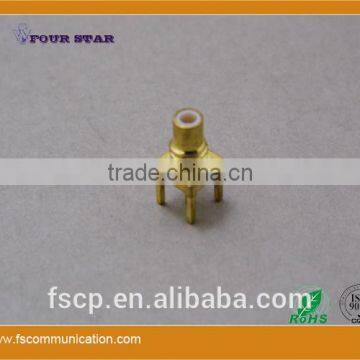

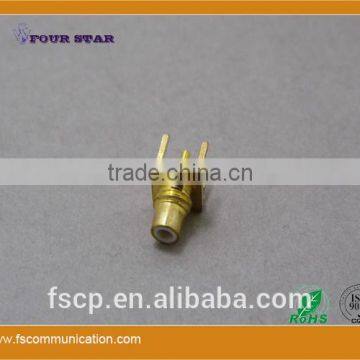

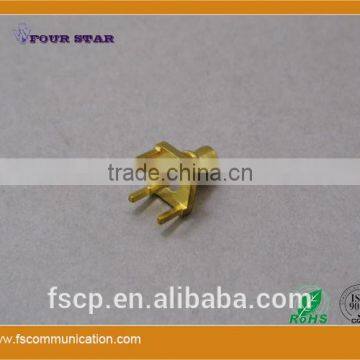

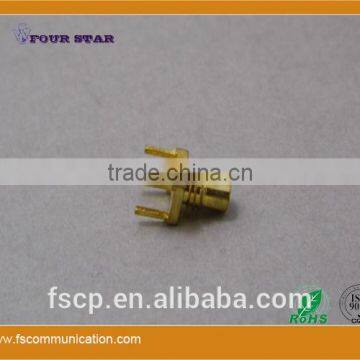

SMC Connector Male Straight for P.C.B Mount
| SMC Connector Male Straight for P.C.B Mount | ||
| Model No. | SMC-JE | |
| Interface | IEC 60169-9;CECC 22140;MIL-C-39012;DIN47225 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-6GHz | |
| VSWR | ≤1.25@DC-3000MHz | |
| Insertion Loss | ≤0.24dB@6GHz | |
| Working Vlotage | 335V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | 1000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Center Conductor Retention Force | ≥0.28N | |
| Contact Resistance | Center Contact ≤6mΩ | Outer Contact ≤2.5 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Au |
| Insulator | PTFE | — |
| Inner Conductor | Beryllium Bronze | Au |
| Resilient Contact | Beryllium Bronze | Au |
| Coupling Nut | — | — |
| Gasket | — | — |
| Cable Clamp | — | — |
| Ferrule | — | — |
| Environmental | ||
| Operating Temperature | _45 ℃~-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | — | |
