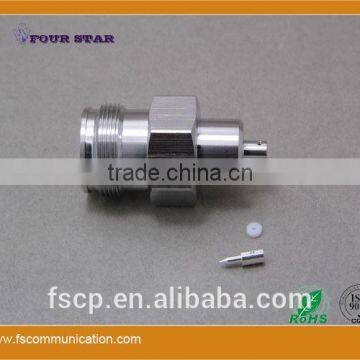

4.3/10 connector female For 141" coaxial cable
USD $3 - $4.2
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Shanghai Ning Bo Beijing Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Four Star | Model Number: | 4.3/10-KB3 |
| Type: | Other, 4.3/10 | Application: | RF | Gender: | Female |
Product Description
Product Description
| 4.3/10 Female connector For 141" coaxial cable | ||
| Model No. | 4.3/10-KB3 | |
| Interface | 4.3/10 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Typical Frequency Range | DC-14GHz | |
| VSWR | ≤1.10@DC-3000MHz | |
| 3rd Order IM (PIM3) | ≤ -157dBc@2×20W | |
| Dielectric Withstanding Voltage | ≥4000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥10000MΩ | |
| Contact Resistance | Center Contact ≤0.4mΩ | Outer Contact ≤1 .5mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Tri-Metal(CuZnSn) |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Tri-Metal(CuZnSn) |
| Gasket | Silicone Rubber | — |
| Cable Clamp | Brass | — |
| Ferrule | — | — |
| Environmental | ||
| Operating Temperature | -45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | RG402;EZ141;SM141;UT141 cable | |
Packaging & Shipping
Our Services
Company Information
FAQ
| Model No. | 4.3/10-KFK | Interface | 4.3/10 | Electrical | Characteristic Impedance | 50ohm | Typical Frequency Range | DC-14GHz | VSWR | ≤1.10@DC-3000MHz | 3rd Order IM (PIM3) | ≤ -157dBc@2×20W | Dielectric Withstanding Voltage | ≥4000V RMS,50Hz,at sea level | Dielectric Resistance | ≥10000MΩ | Contact Resistance | Center Contact ≤0.4mΩ | Outer Contact ≤1 .5mΩ | Mechanical | Durability | Mating cycles ≥500 | Material and Plating | Parts Name | Material | Plating | Body | Brass | Tri-Metal(CuZnSn) | Insulator | PTFE | — | Inner Conductor | Phosphor Bronze | Ag | Coupling Nut | Brass | — | Gasket | Silicone Rubber | — | Cable Clamp | Brass | — | Ferrule | — | — | Environmental | Operating Temperature | -45 ℃-85 ℃ | Weatherproof Rate | IP67 | RoHs (2002/95/EC) | Compliant by exemption | Suitable Cable Family | — | |||||||||||||||||||||
| 4.3/10 female 25.4 mm SQ flange to 4.3/10 female connector adaptor | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Model No. | 4.3/10-KFK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 4.3/10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Characteristic Impedance | 50ohm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Typical Frequency Range | DC-14GHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VSWR | ≤1.10@DC-3000MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3rd Order IM (PIM3) | ≤ -157dBc@2×20W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dielectric Withstanding Voltage | ≥4000V RMS,50Hz,at sea level | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dielectric Resistance | ≥10000MΩ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Contact Resistance | Center Contact ≤0.4mΩ | Outer Contact ≤1 .5mΩ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mechanical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Durability | Mating cycles ≥500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material and Plating | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts Name | Material | Plating | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Body | Brass | Tri-Metal(CuZnSn) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Insulator | PTFE | — | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Inner Conductor | Phosphor Bronze | Ag | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Coupling Nut | Brass | — | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gasket | Silicone Rubber | — | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cable Clamp | Brass | — | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ferrule | — | — | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -45 ℃-85 ℃ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weatherproof Rate | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RoHs (2002/95/EC) | Compliant by exemption | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Suitable Cable Family | — | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
