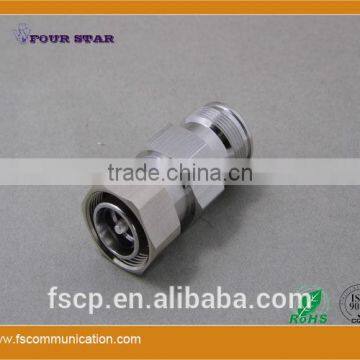

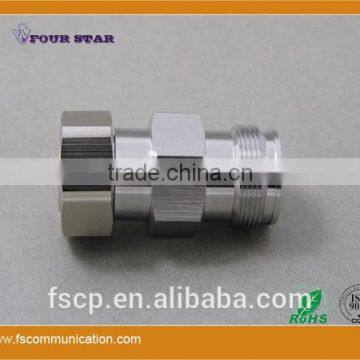

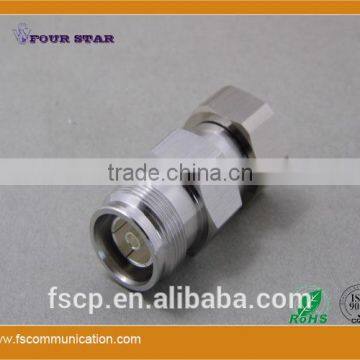

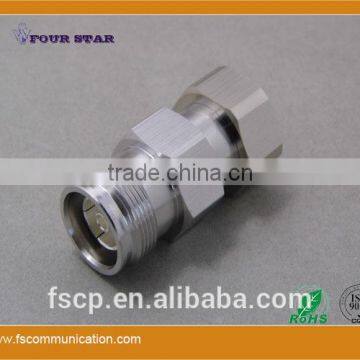

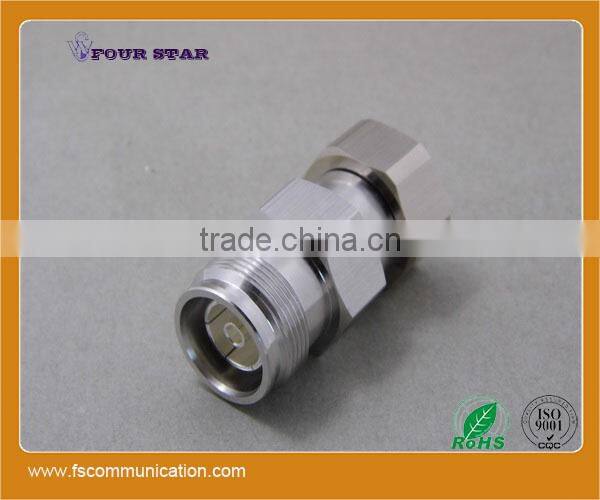

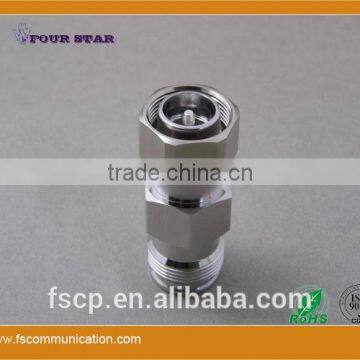

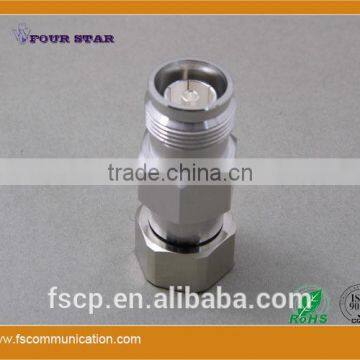

4.3/10 Male to Female Connector Adaptor
US$ 3.2 - 4.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
4.3/10-JK
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ning Bo Beijing Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4.3/10 Female to 4.3/10 Female Flange Connector AdaptorUS$ 3.2 - 4.8MOQ: 100 Pieces -
SMB Male to SMB Male Connector AdaptorUS$ 0.48 - 0.79MOQ: 100 Pieces
-
SMB Connector Female Crimp for RG179 CableUS$ 0.44 - 0.76MOQ: 100 Pieces
-
SMB Connector Female Crimp Connector for RG59 Cable BUS$ 0.48 - 0.79MOQ: 100 Pieces
-
SMB Connector Female Crimp Connector for RG59 Cable AUS$ 0.48 - 0.79MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
4.3/10-JK
Type
Other, 4.3/10
Application
RF
Gender
Other, Male to Female
Product Description
4.3/10 Male to Female Connector Adaptor
| 4.3/10 Male to Female Connector Adaptor | ||
| Model No. | 4.3/10-JK | |
| Interface | 4.3/10 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Typical Frequency Range | DC-14GHz | |
| VSWR | ≤1.10@DC-3000MHz | |
| 3rd Order IM (PIM3) | ≤ -157dBc@2×20W | |
| Dielectric Withstanding Voltage | ≥4000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥10000MΩ | |
| Contact Resistance | Center Contact ≤0.4mΩ | Outer Contact ≤1 .5mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Tri-Metal(CuZnSn) |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Tri-Metal(CuZnSn) |
| Gasket | Silicone Rubber | — |
| Cable Clamp | Brass | — |
| Ferrule | — | — |
| Environmental | ||
| Operating Temperature | -45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | — | |
