Specifications

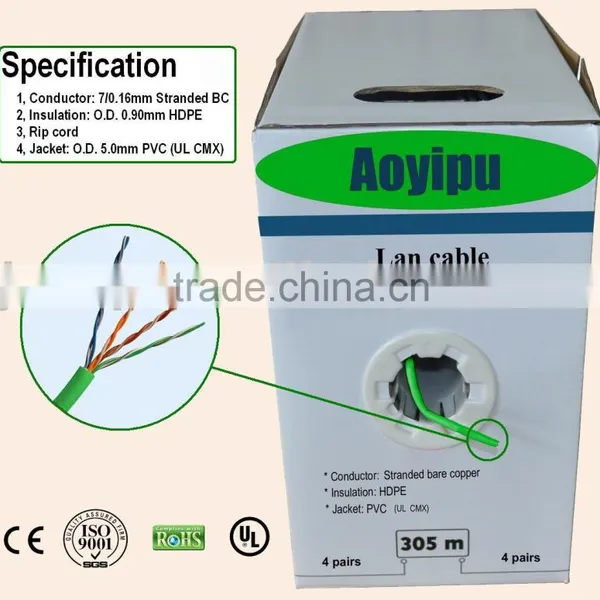

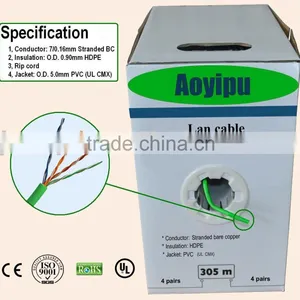

1, 7/0.16mm stranded BC conductor;2, HDPE insulated;
3, PVC(UL CMX) jacket;
4, CE, UL, RoHS certified;
5,OEM is acceptable
|
Specification of UTP cat5
1) Conductor * Raw material of the conductor: stranded solid bare copper * Conductor Dia.: 7/0.16±0.003mm (24AWG) 2) Insulation * Raw material of the conductor: PE * Quantity:4 twisted pairs Blue/white-blue; Green/white-green; Orange/white-green; Brown/white-brown; * Insulation Dia. : 0.9±0.005mm * Average thickness: 0.215 mm * Minimum point thickness: 0.2125mm 3) Rip cord 4) Sheath * Sheath material: PVC(UL CMX) * Nominal Dia.: 5.0 ± 0.2mm * Average thickness: 0.50mm * Minimum point thickness: 0.40mm |
