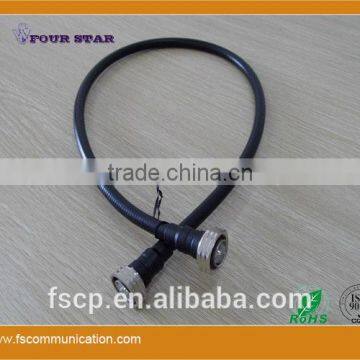

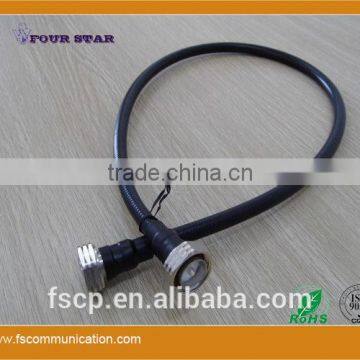

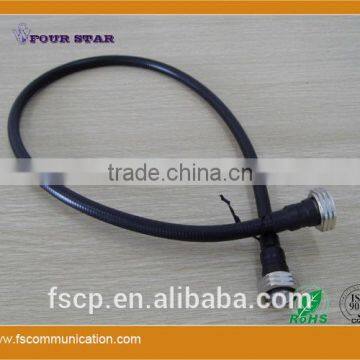

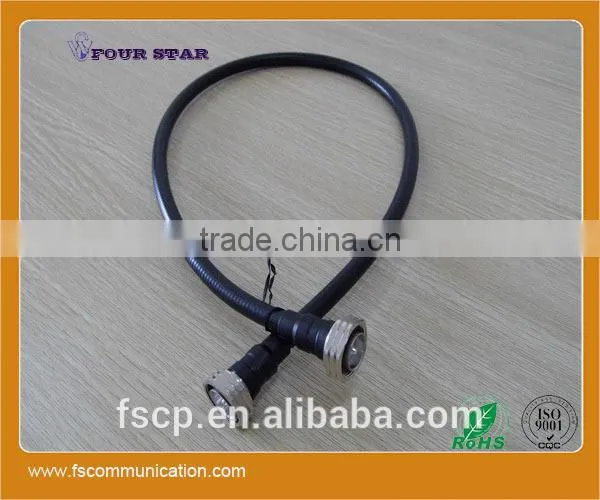

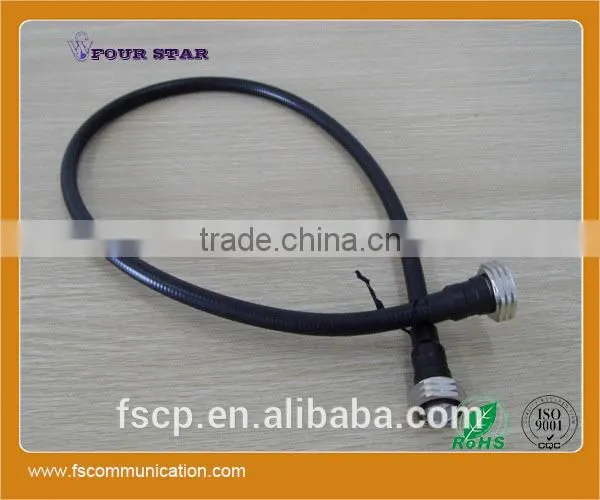

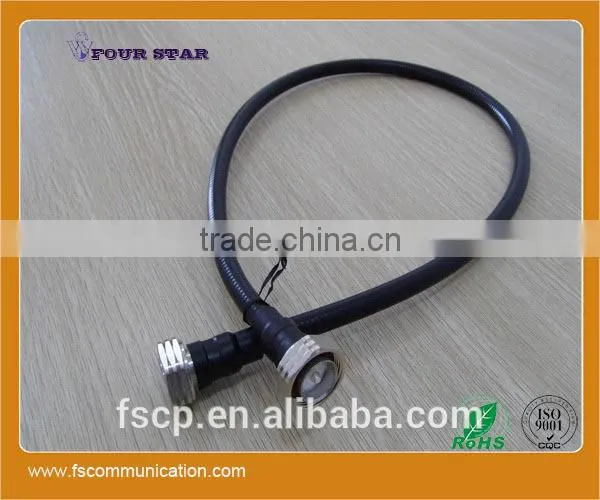

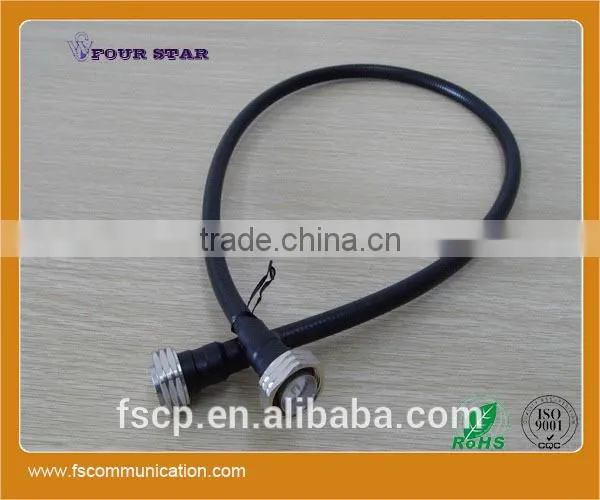

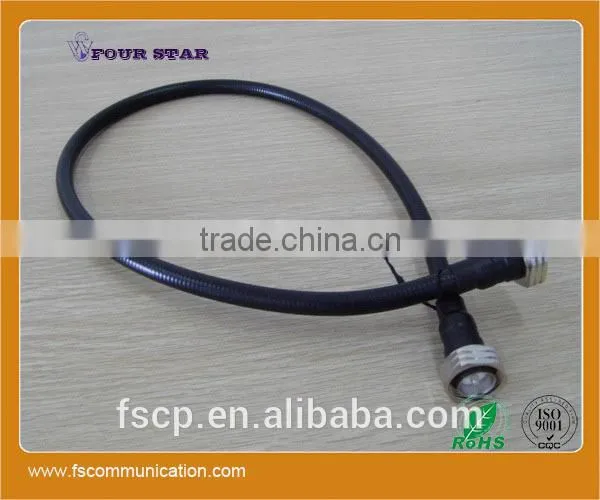

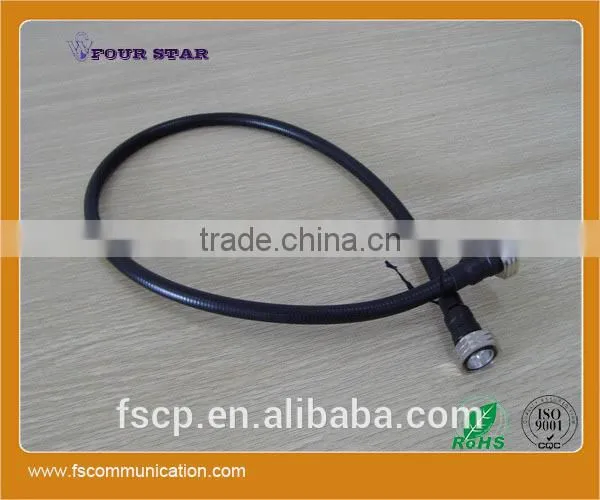

1/2'' Superflexible Cable Assembly With 7/16 Male to 7/16 Male Connector

Name: 1/2'' Superflexible Cable Assembly With 7/16 Male to 7/16 Male Connector
Brand: Four Star
SKU: 110650751
Availability: InStock

US$ 4.34 - 5.12 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Four Star

Model Number:

7/16-J1/2S/7/16-J1/2S-1000

Four Star Communication Parts Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Four Star

Model Number 7/16-J1/2S/7/16-J1/2S-1000

Type Coaxial

Number of Conductors 1

Product Description

1000mm 1/2'' Superflexible Cable Assembly with 7/16 Male to 7/16 Male Connector

1000mm 1/2'' Superflexible Cable Assembly with 7/16 Male to 7/16 Male Connector
Model No.	7/16-J1/2S/7/16-J1/2S-1000
connector Type(Name)	7/16 connector male clamp for 1/2'' superflexible cable
	7/16 connector male clamp for 1/2'' superflexible cable
Cable Length	1000mm (Customized Length Available)
Connector Interface	IEC 60169-4; IEC 60169-4
Operating Frequency	DC-3GHz
VSWR	≤1.10@DC-3GHz
Insertion Loss	≤0.25dB @3GHz
Intermodulation 3rd (PIM3)	≤ -157dBc@2×20W
Durability	≥500 cycles
Parts Name	Material	Plating
Body	Brass	Tri-Metal
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Ag
Coupling Nut	Brass	Tri-Metal
Gasket	Silicone Rubber	—
Shrinkable Tube	PET	—
Operating Temperature	-45 ℃-+85 ℃
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
