Cable Manufacture Sell High Speed LAn Cable Fluke Test UTP FTP Cat5e Cat6 Network Cable Utp Cat5e for Networking
Specifications
1, BC conductor;2, HDPE insulation;
3, PVC jacket;
4, CE, RoHS certified;
5, OEM is acceptable;
Specifications

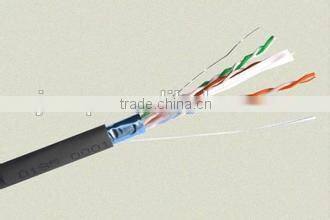

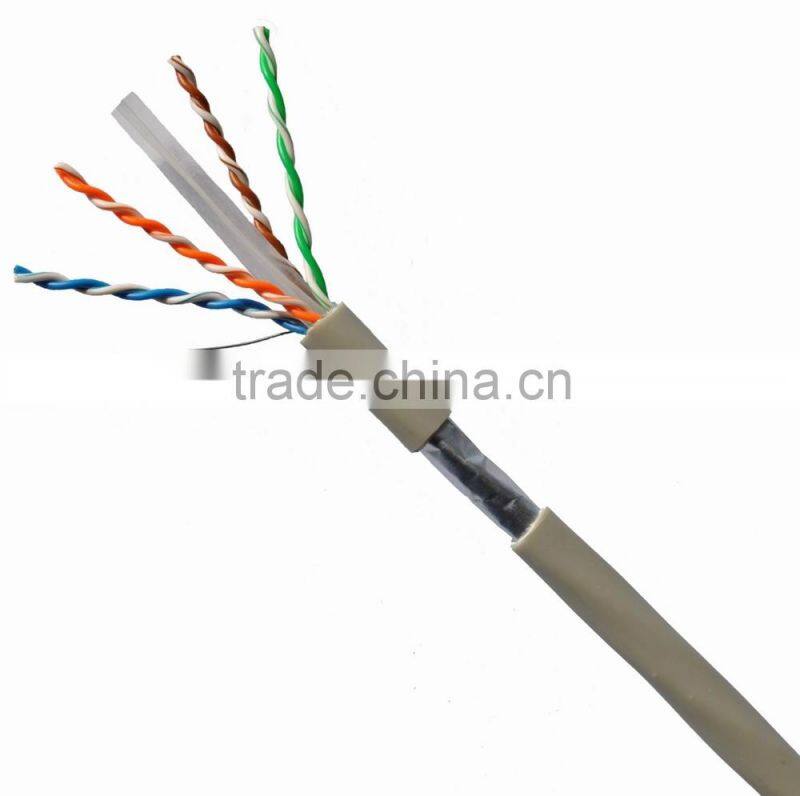

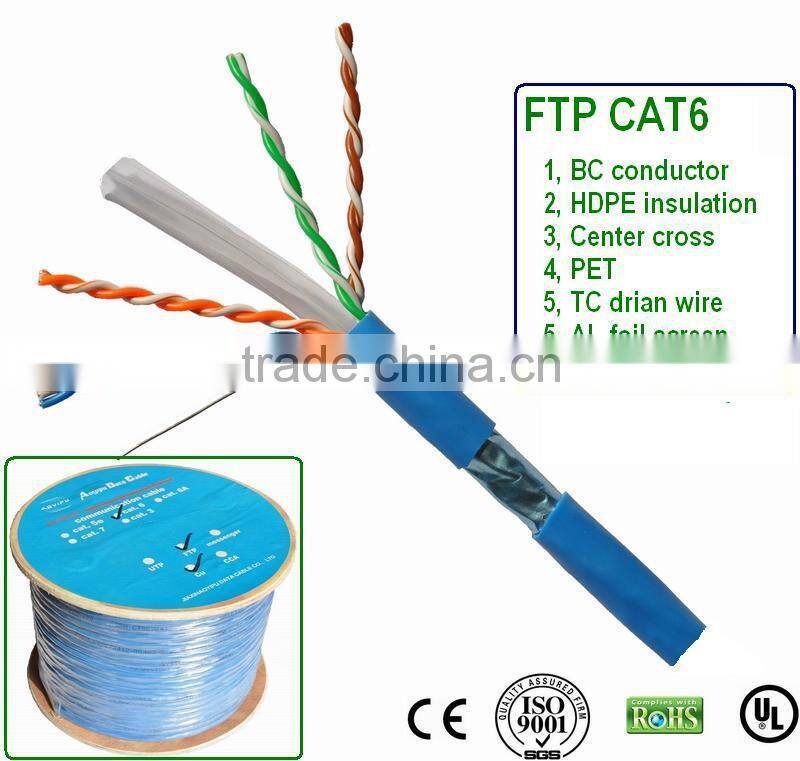

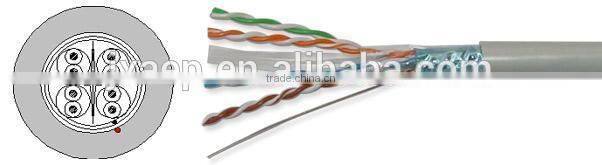

FTP CAT6
1)23AWG Network Cable, Comply with UL and 11801, ISO/IEC ,TIA/EIA 568A/568B 4prs BC
2)OEM order is welcome
FTP CAT6
Reference standard: UL444, TIA/EIA-568B
Bare solid copper conductor
ROHS complied PVC, PE or LSOH jacket
Complies to TIA/EIA-568B&ISO/IEC 11801
Application:
100 Base-TX, 100VG-AnyLAN, 1000Base-T, ATM, Noisy Environment
Conductor Dimension: Solid 23AWG
No. Of Pairs: 4pairs
Nom. OD: 7. 3mm
Type of Jacket: PVC or ROHS PVC
Remark: 250MHz 550MHz
Specifications

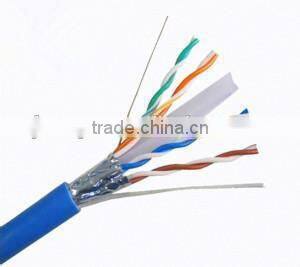

High quality best price ftp lan cables cat6
1.UL/CE/ROHS/ISO9001/SGS
2.UTP/FTP/SFTP
3.CCA/CCS/CU

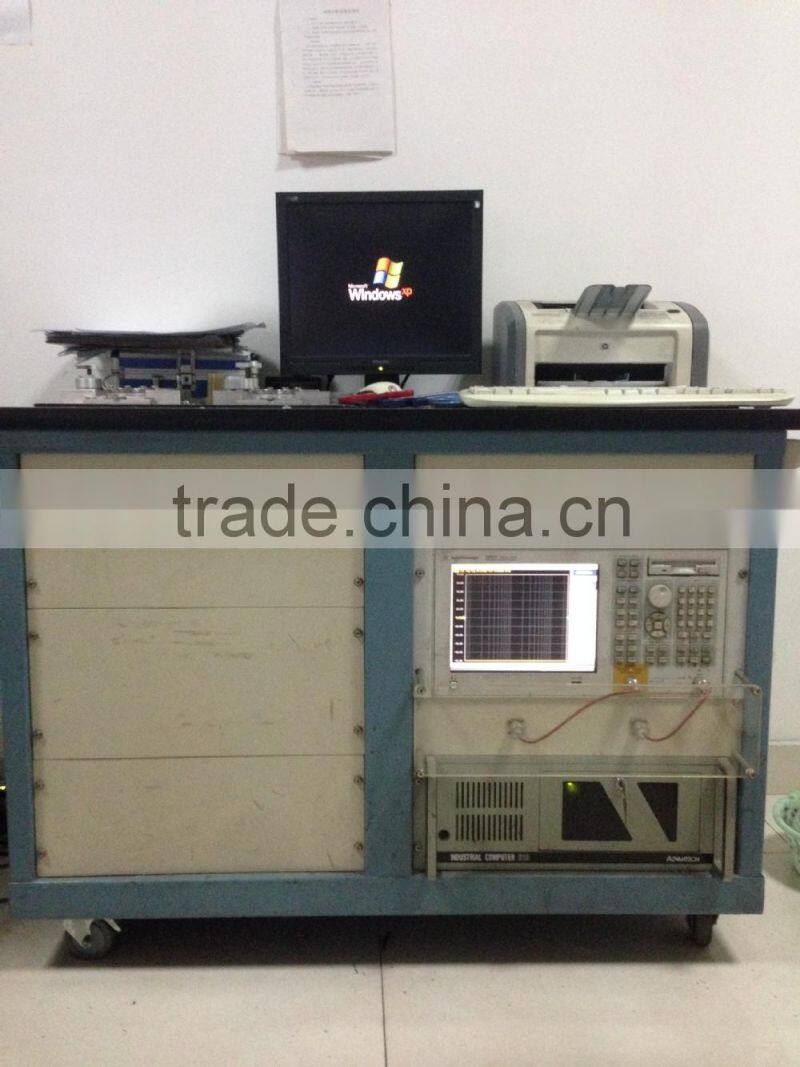

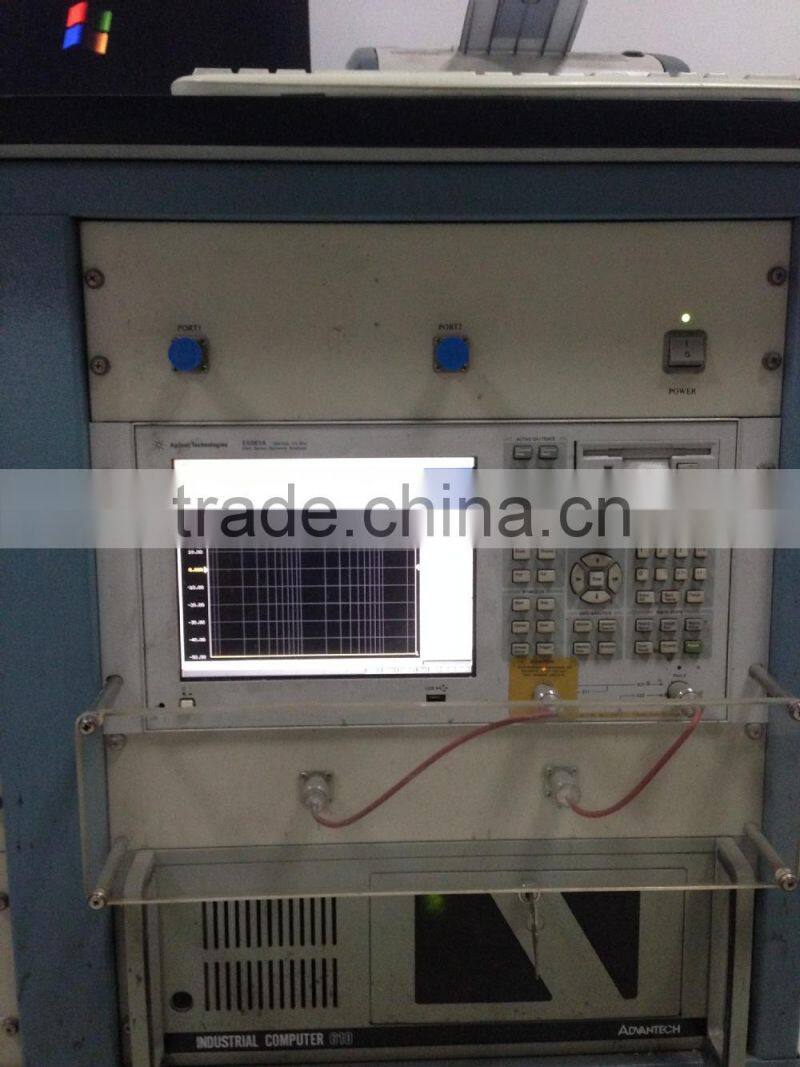

4.100% pass Fluke
High quality best price ftp lan cables cat6
computer network cabling project
broadband network communication
digital ISDN network and ATM 155Mbps network
ethernet network
audio and data transmission
100base-TX
100VG-AnyLAN
1000BASE-T(Gigabit Ethernet) cat6a utp cable
ATM
Noisy Enviroments
2.Specification
pairs:4paris
working temperature: -20 °c-75°c
shielding:FTP/UTP/SFTP
conducter:23awg bare copper or copper clad aluminum
Insulation:HDPE
unrp rope:optional
jacket:CE/UL/RoHs/ISO9001
reference standard:ANSI/TIA/EIA-568B,ISO/IEC11801

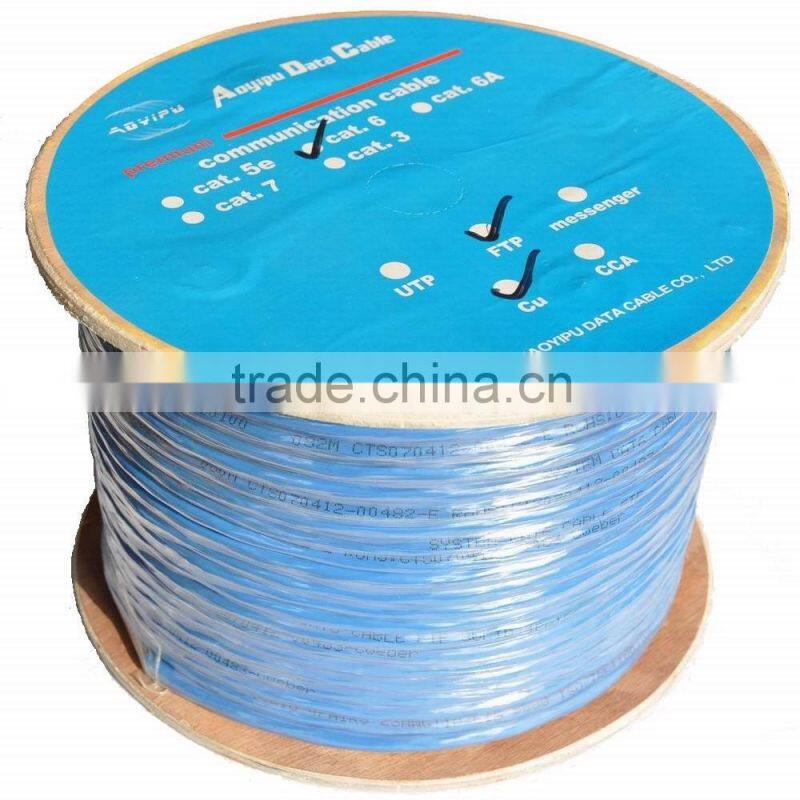

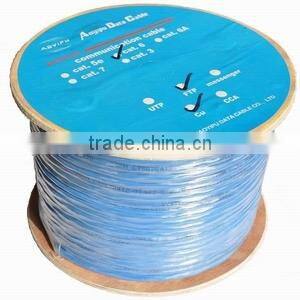

package:300 or 305m/roll as per customer request
3.Electrical characteristics
| Frequency, MHz | RL | Attenuation, dB | NEXT, dB | PSNEXT, dB | ELFEXT, dB | PSELFEXT, dB |
| 0.772 | - | 1.8 | 67 | 64 | - | - |
| 1 | 20 | 2 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4 | 23 | 4 | 56.3 | 53.3 | 51.7 | 48.7 |
| 8 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 |
| 10 | 25 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16 | 25 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 |
| 20 | 25 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17 | 38.4 | 35.4 | 27.8 | 24.8 |
| 100 | 20.1 | 22 | 35.3 | 32.3 | 23.8 | 20.8 |
