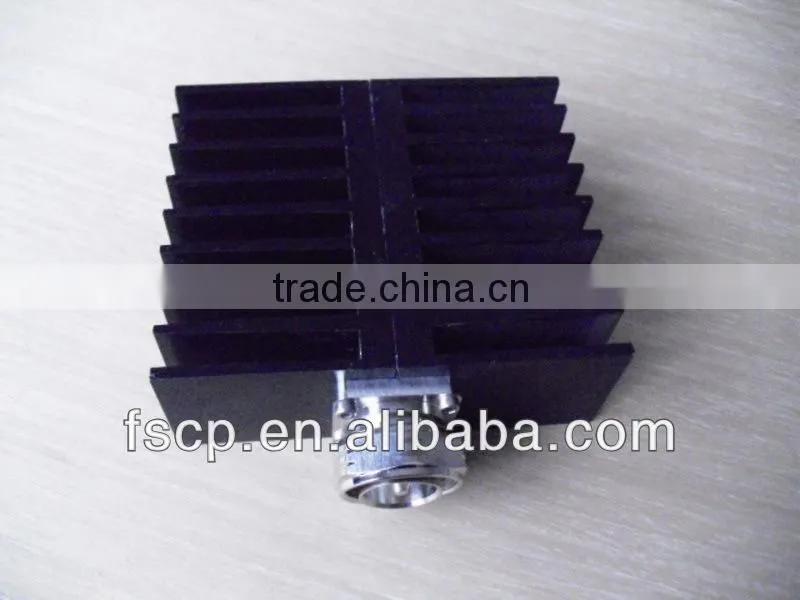

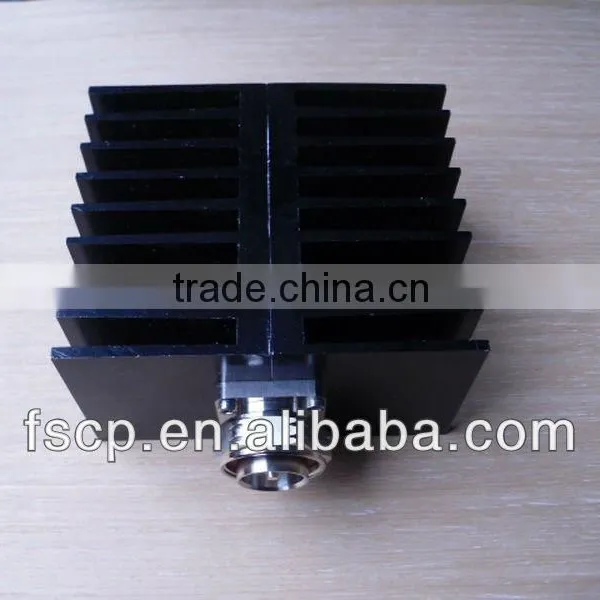

50Watt 7/16 Type Coaxial Dummy Load
US$ 23.85 - 28.88
MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
FSDL-03-JDIN50W
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
FSDL-03-JDIN50W
Specifications
*. Wide operating frequency range*. Low VSWR;Low PIM 3rd
*. Excellent capacity in anti-pluse and anti-burnout
| 50 Watt 7/16 Type Coaxial Dummy Load (Terminator ) | ||
| Model No. | FSDL-03-JDIN50W | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-3GHz | |
| VSWR | ≤1.20 | |
| Power Capacity | 50 Watt | |
| RF Connector | 7/16 Male Connector | |
| Material an Plating | ||
| Parts Name | Material | Plating (Finish) |
| Connector body | Brass | Tri-Metal(CuZnSn)or Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Ag |
| Housing | Aluminum | Black Passivation |
| Environmental | ||
| Operating Temp. | _45~ 85 °C | |
| Storage Temp. | _60~120°C | |
| Weatherproof Rate | IP66 | |
| Relative Humidity | 5%-95% | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Weight (Net) | 810g | |
