large size MDF CO2 laser cutting bed for sale

FOB Price

USD $1 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port China port
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Applicable Material	Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood	Cutting Thickness	35mm
Cutting Area	1300*2500mm	Cutting Speed	6m/min
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	LEETRO,RD	Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin	Shandong, China	Brand Name	PENN
Model Number	PC-1325L	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

large size MDF CO2 laser cutting bed for sale

ing area 1300*2500mm

2.in stock

3.CE

4.80W/100W/120W/150W laser tube

Product Description

1.Adopt the international advanced DSP control technology, it is the pioneer to

fast continuously curving-cut and shortcut processing pathway optimizing function,

accordingly increase greatly the decency.

2.It automatically equalizes the diminishing of light during the whole operating to

ensure the same cutting effect ion different area.

3.High-speed cutting control software and buffer function in high-speed movement

can improve production efficiency.

4.The up-to-date software provides the direct output of original pictures; completely

fit the graph foams such as CAD, CAM of CAD, and CorelDraw software, to meet the

practical design requirement of the end users.

5.The advanced colors and the toms of the cutting can realize the one-time output

completelyor partially.

6.It uses USB port to transmit data, equipped with large-capacity memory, improving

working efficiency greatly.

Technical Parameter:

Model	PC1325L	PC1525L	PC1530L
Table Size(mm)	1300*2500	1500*2500	1500*3000
Laser Power	80W/100W/130W/150W/170W
Laser Type	CO2 sealed laser tube, water-cooled, 10.6um
Cooling type	Water-cooled
Engraving Scanning Speed	0-6000mm/min
Max Moving Speed	30000mm/min
Cutting speed	0-1000mm/min
Laser Output Control	1-100%software setting
Smallest Character Engraving	Character2.0mm2.0mm, English 1.0mm1.0mm
Highest Scanning Precision	4000DPI
Locating Precision	0.01mm
Supported File Format	DAT,PLT,BMP,DXF,AI,etc.
Compatible Software	TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD
Operating humidity	Temperature:0-45,Humidity:5%-95%(without condensed water)
Optional parts:	Up&down table,auto focus system,rotary device, ball scew tran

Applicable Materials:

Wood,Bamboo,jade,marble,acrylic,crystal,leather,plastic,paper,rubber,ceramic,glass

and other non-metal materials.

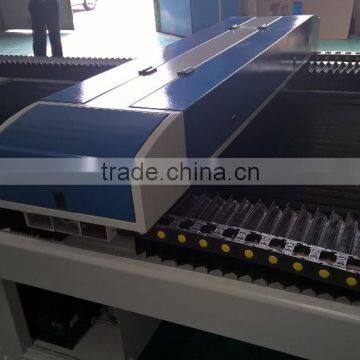

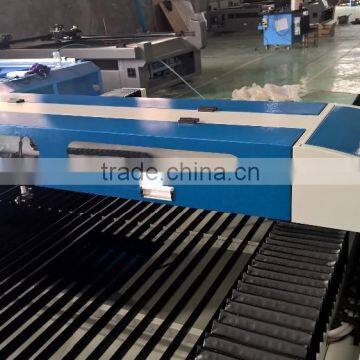

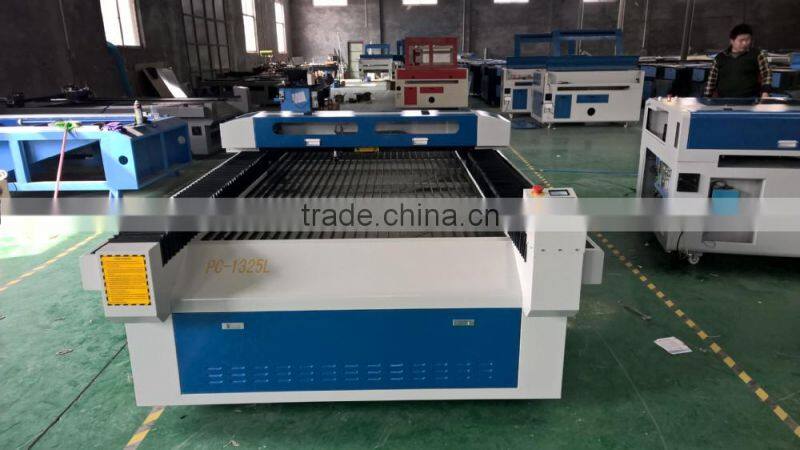

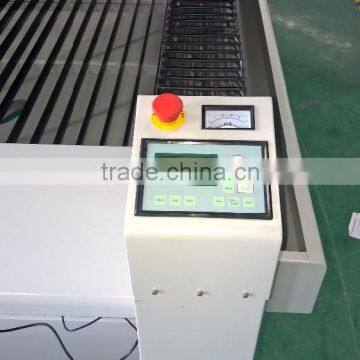

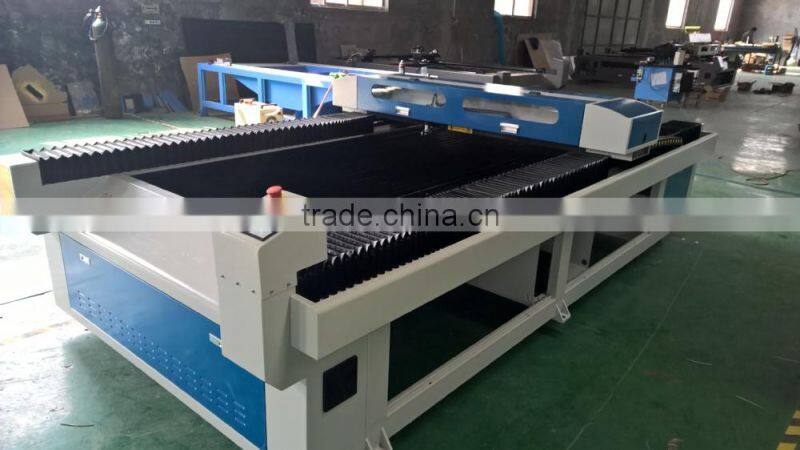

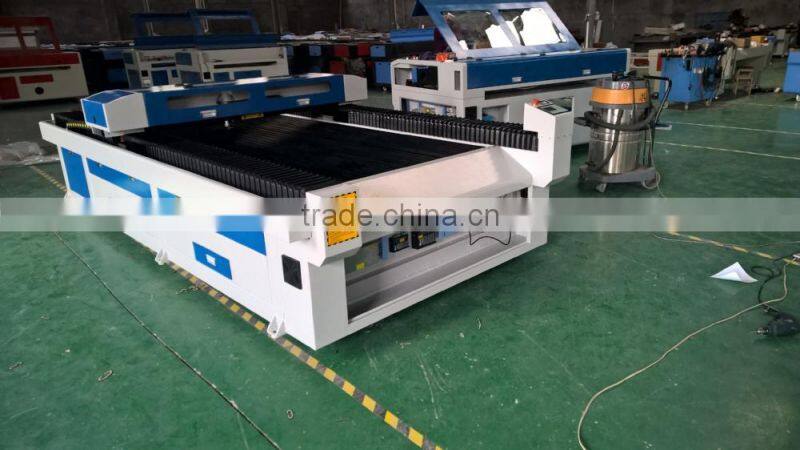

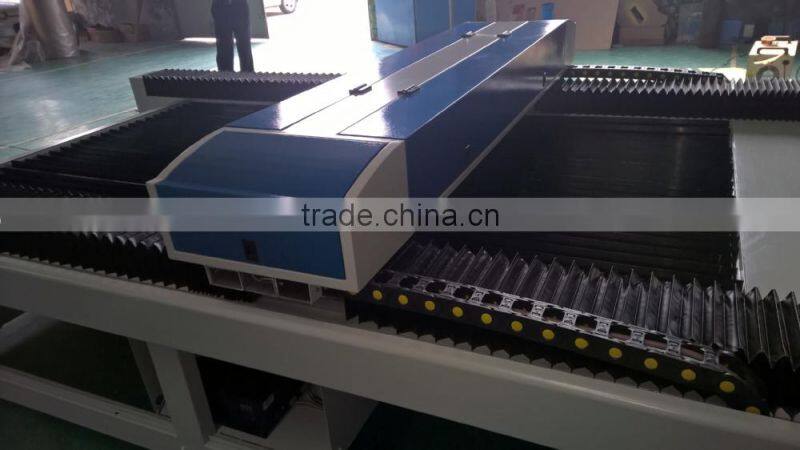

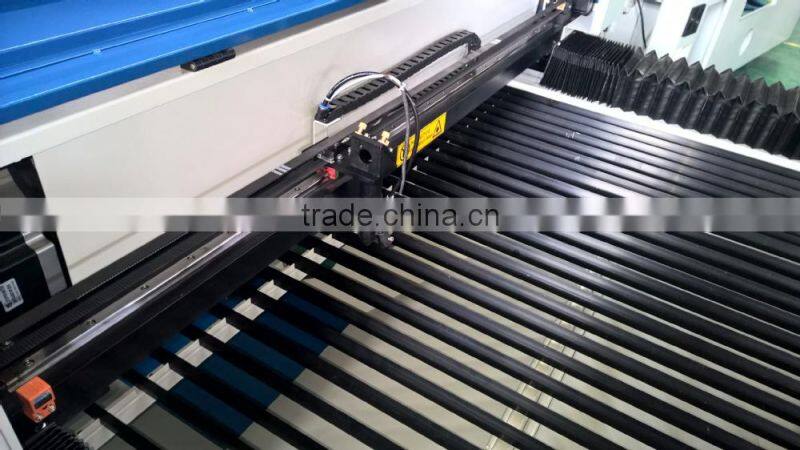

Machine pictures
