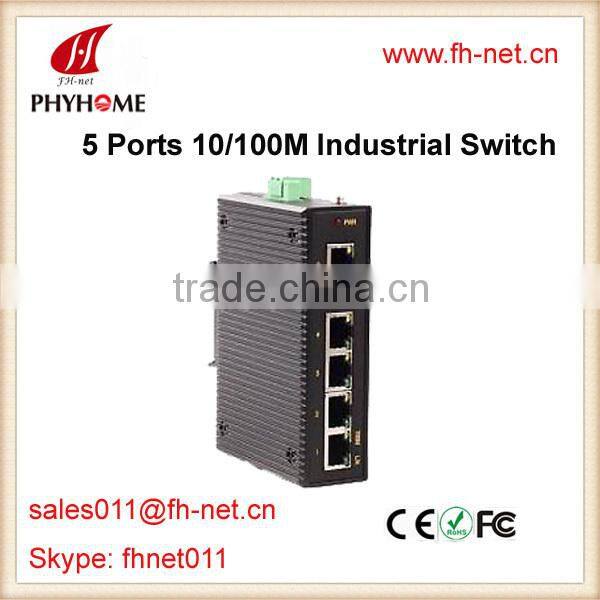

5 Ports 100M Industrial Switch Din-Rail Unmanaged
Description
The versatile modular design of the compact M2 series Ethernet switch which support IEEE802.3/ 802.3u/ 802.3 x contracts, 10/100M full-duplex and semi-duplex RJ45, auto MDI/MDI-X connection.
The FHC2005 has 5 10/100Base-FX industrial Ethernet. Models with an extended operating temperature range of -40~75°C are also available. DIN-Rail installation; Housing use IP40 protection and interface LED indication can display socket state.
The M2 modular provide industrial 24 VDC power supply, we could provide suitable power supply for customer choose, making the Ethernet switches suitable for any harsh industrial environment.
Specification
Port | |
Port type |
5 10/100 Base-TX port |
Twisted-pair |
RJ45 port, 10/100Base auto negotiation speed and auto MDI/MDI-X connection |
Fiber optic port |
None |
Communication distance | |
Twisted-pair |
0~100m |
Fiber optic line |
None |
Topology Structure | |
Line/Star/Network type |
Support |
Power supply | |
Input Voltage |
24VDC:12-36V 48VDC(customer order) AC/DC:AC85-265V/DC110-370V |
Watt loss |
<5W |
Alarm output |
Max. Current: 24V/1A, Max. voltage: 500V |
Interface | |
Backplane bandwidth |
1.6G |
Filtering and forwarding |
148810bps |
MAC address |
2K |
Flow control |
Full-duplex flow control, semi-duplex interface flow control |
Broadcast Storm Control |
Supports broadcast data packets and broadcast storm control. The data packets out of the limited time will be abandoned. |
Environmental Limits | |
Operating |
Standard Models: -40℃~75℃ |
Temperature |
Storage Temperature: -45℃~85℃ |
Ambient Relative Humidity |
0~95%(non-condensing) |
Physical Characteristics | |
Dimension |
114mm×33mm×80mm |
Installation |
DIN-Rail |
Weight |
0.3kg |
Case protection grade |
IP40 |
Package |
Protection class with aluminum casing, no flow fan. |
Electromagnetic compatibility | |
IEC61000-4-2 electrostatic prevention |
±8kv contact discharge, ±15kv air discharge |
IEC61000-4-3 electromagnetic field |
10V/m(80~1000MHz) |
IEC61000-4-4 fast transient response pulse signal port |
±4kv power line,±2kv data line |
IEC61000-4-5 surge guard signal port |
±4kv(line-GND)±2kv(line-line), ±2kv data line |
IEC61000-4-6 radio frequency presentation |
3V(10kHz~150kHz),10V(150kHz~80kHz) |
EN55022 |
EN55022 Class A |
IEEE standard |
IEEE802.3,IEEE802.3u,IEEE802.3x |
Ordering Information
FHC200501 |
5 10/100 Base-TX port Power Supply: DC 24V |
FHC200502 |
5 10/100 Base-TX port Power Supply: AC 220V |

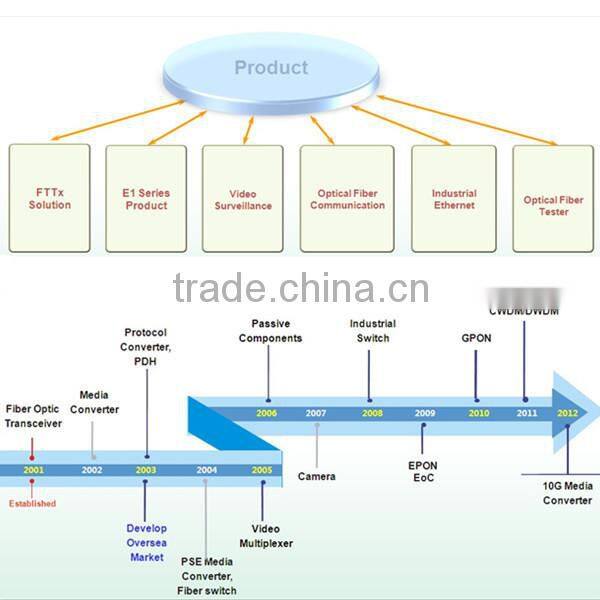

Company Information:
